Tools And Materials

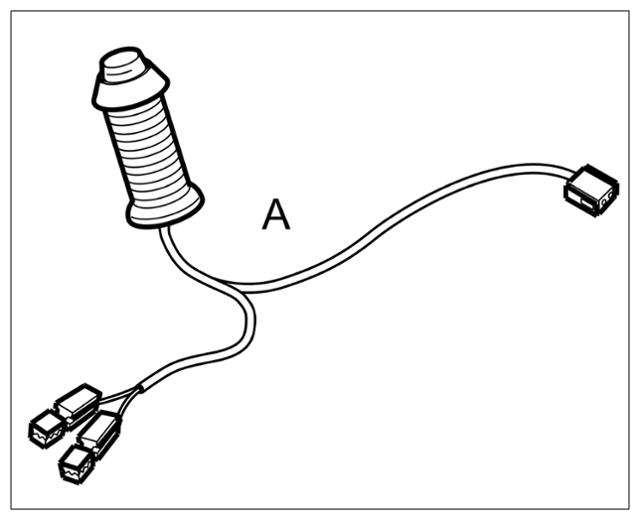

Overview of ignition device 9257
| LHD vehicle | Ignition device 9257 |

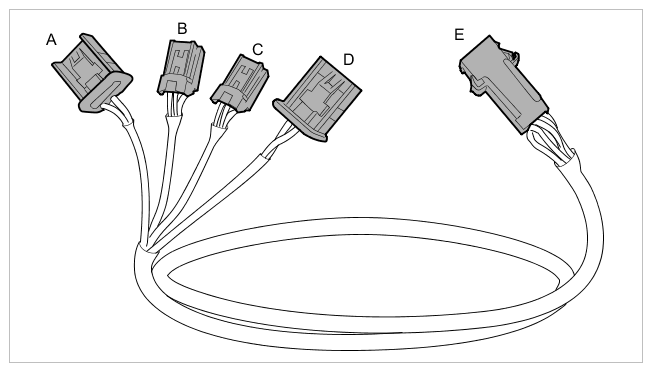

Overview of adapter cable 9257/4
| LHD vehicle | Purple marking on the connector - adapter for knee airbag |
| RHD vehicle | Marking A - adapter for 1st stage of driver's airbag unit |
| Item C | Marking B - adapter for 2nd stage of driver's airbag unit |
| D | Green marking on the connector - adapter not required |
| E | Adapter for detonator (ignition device) |

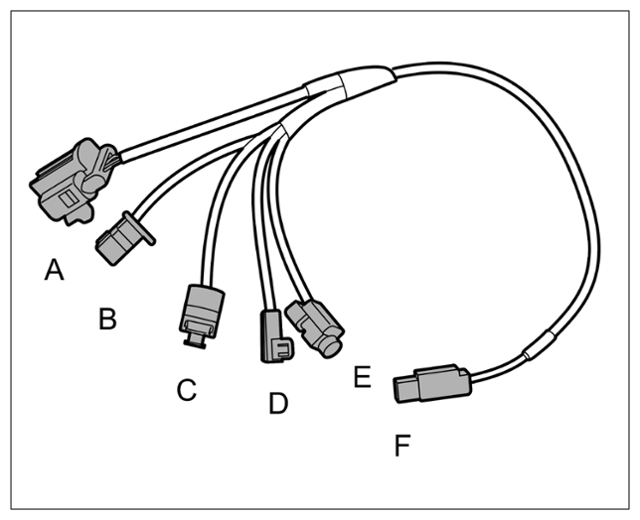

Overview of adapter cable 9257/7
| LHD vehicle | Purple marking on the connector - adapter for ignition module of front lid |
| RHD vehicle | Blue marking - adapter for 1st stage of driver's airbag unit |
| Item C | Black marking on the connector - adapter for head airbag |
| D | Turquoise marking on the connector - adapter for 1st stage of passenger's airbag unit |
| E | Yellow marking on the connector - adapter for 2nd stage of passenger's airbag unit and seat-belt pretensioner |
| F | Adapter for detonator (ignition device) |

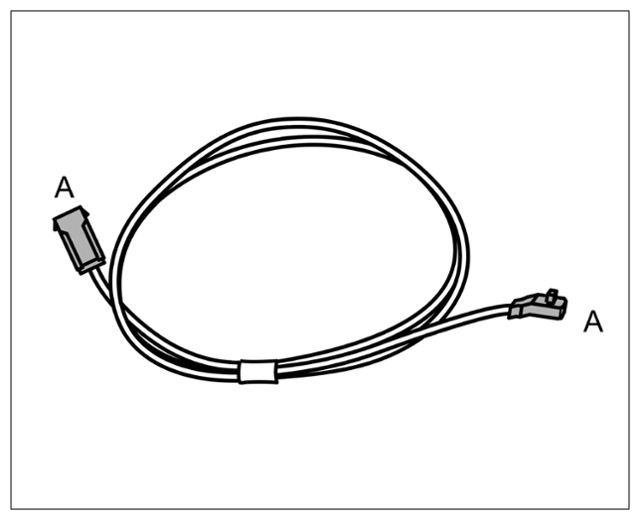

Overview of ignition cable 9257/6

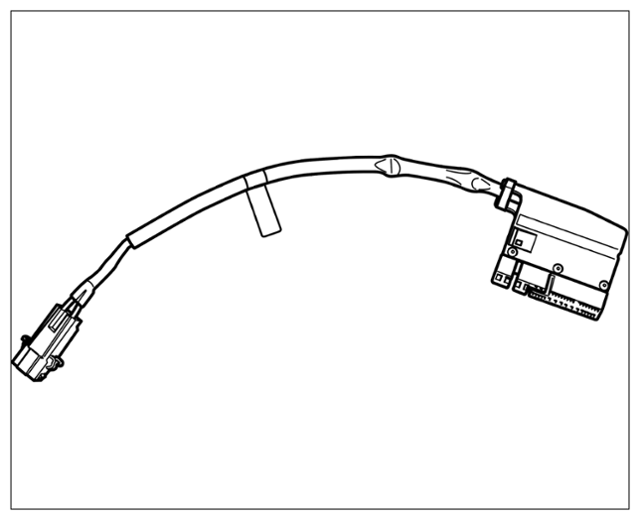

Overview of adapter cable 9257/1
| LHD vehicle | Black connector - adapter for cutoff relay at power distributor |
