Removing Spreader Device

WARNING: This page is about a different variant/trim than selected.
  1. Use the PIWIS Tester  to move the electric parking brake (EPB) into assembly position.
    1. 1.1 Connect the PIWIS Tester  to the vehicle.
    2. 1.2 Select the Parking brake  control unit in the control unit overview  .
    3. 1.3 Then, select Assembly position  under Maintenance/repairs  .
  2. Release and disconnect electric plug connection -1-  .
    G15154266Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for spreader device

  3. Unscrew screws on spreader device -1-  .

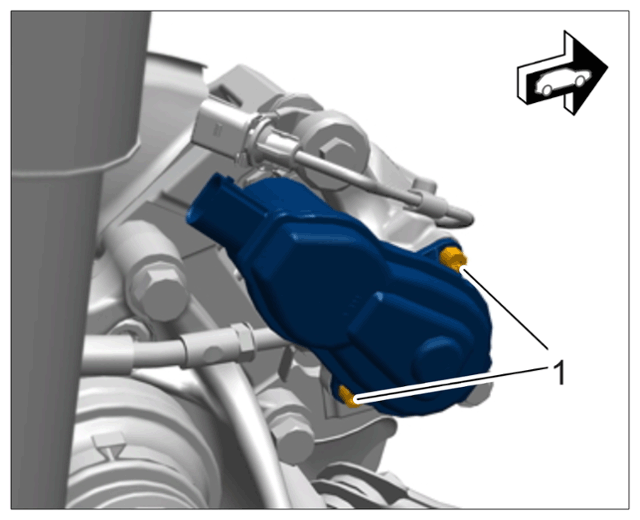

    G15154267Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Spreader device mounting

  4. Remove spreader device in -direction of arrow-  .

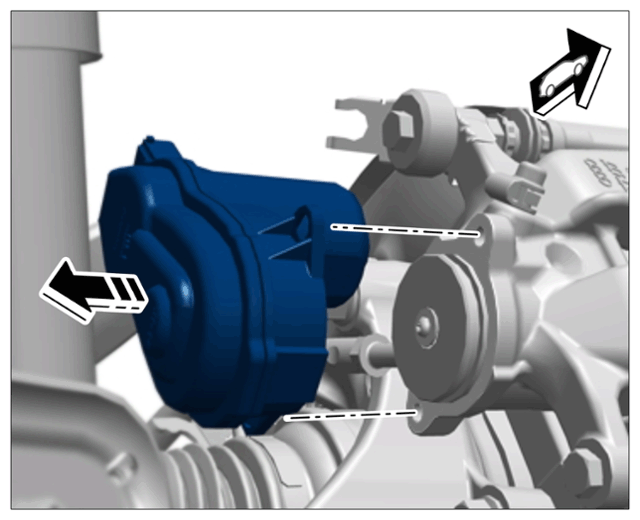

    G15154268Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing spreader device
