Removing Rear Brake Disc

WARNING: This page is about a different variant/trim than selected.
  1. Remove rear brake disc -1-  .

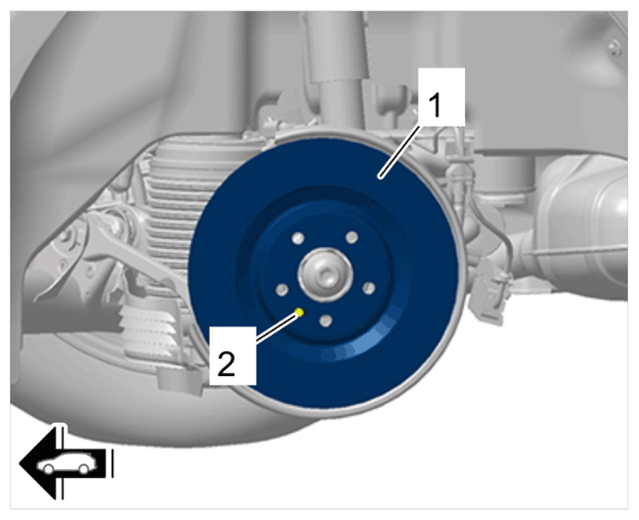

    G15154253Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear brake disc

    1. 1.1 Remove screw -2-  .
    2. 1.2 Remove rear brake disc -1-  .
