Removing Front Brake Disc
WARNING: This page is about a different variant/trim than selected.
Information
- Replace brake discs once the maximum wear dimension has been reached.
- Re-machining of brake discs is not permitted!
- Remove front brake disc -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

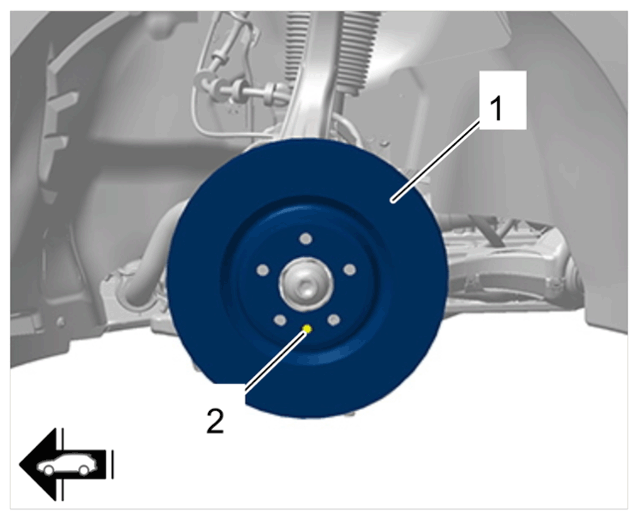

Front brake disc
- 1.1 Unscrew screw -2-
.
- 1.2 Remove front brake disc -1-
.
