Wear Areas On Brake Disc Friction Surface
WARNING: This page is about a different variant/trim than selected.
As the press-on force of the brake piston on the brake pad varies in magnitude, different areas of wear occur on the friction surface.
The brake disc essentially has different wear areas - the inner/outer -LHD vehicle - and central wear area -RHD vehicle - : The central wear area -RHD vehicle - is the area with the highest degree of wear.

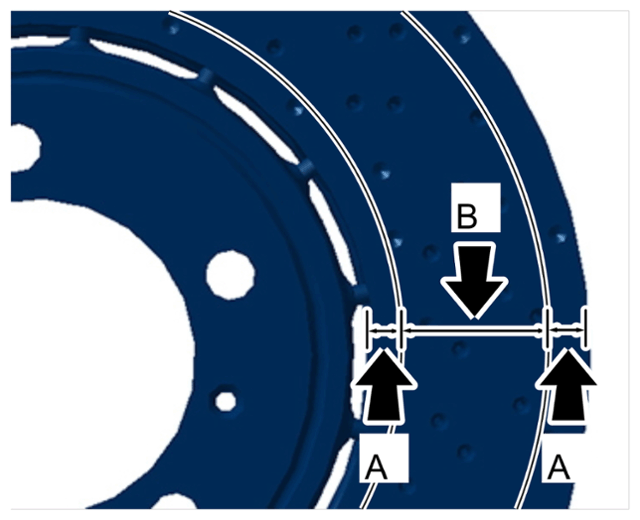

Measurement points on brake disc
LHD vehicle Inner/outer wear area
RHD vehicle Central wear area
