Pressure Pipe And Intake Pipe (V6 Monoturbo)

WARNING: This page is about a different variant/trim than selected.

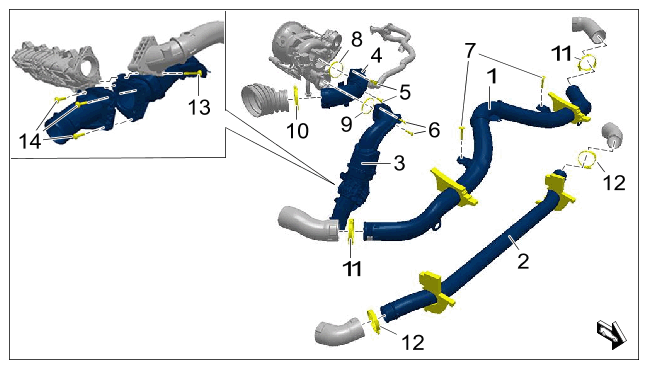

Fig 1: Pressure Pipe And Intake Pipe Component Location With Torque Specification (V6 Monoturbo)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of pressure pipe and intake pipe (V6 monoturbo)

1	Upper pressure pipe (from charge-air cooler to charge-air cooler)
2	Lower pressure pipe (from charge-air cooler to charge-air cooler)
3	Side pressure pipe (from turbocharger to charge-air cooler)
4	Intake pipe
5	Screws securing intake pipe to turbocharger
6	Screws securing side pressure pipe to turbocharger
7	> Tightening - torque 8 Nm (6 ftlb.)
8	Sealing ring on intake pipe
9	Sealing ring on side pressure pipe
10	> Tightening - torque 4 Nm (3 ftlb.)
11	Screw-type clamp on upper pressure pipe > Tightening - torque 5.5 Nm (4 ftlb.)
12	> Tightening - torque 5.5 Nm (4 ftlb.)
13	Screw securing side pressure pipe to intake-air distributor
14	Screws securing side pressure pipe - upper part to lower part

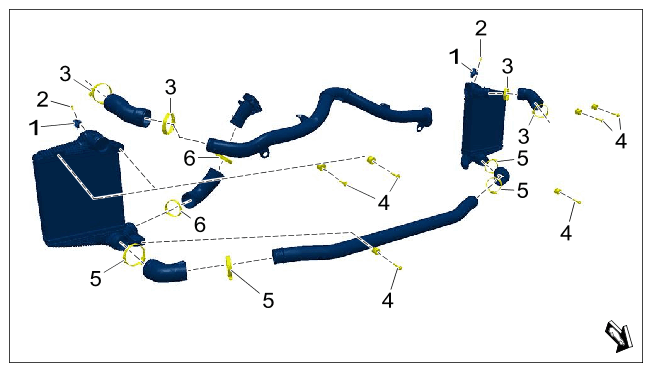

Fig 2: Charge-Air Cooler Component Location With Torque Specification (V6 Biturbo)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of charge-air cooler (V6 biturbo)

1	Boost pressure sensors
2	Screws securing boost pressure sensors to charge-air cooler
3	Screw-type clamps
4	Screws for charge-air cooler
5	Screw-type clamps
6	Screw-type clamps > Tightening - torque 5.5 Nm (4 ftlb.)
