Charge-Air Cooler - V6 Monoturbo

WARNING: This page is about a different variant/trim than selected.

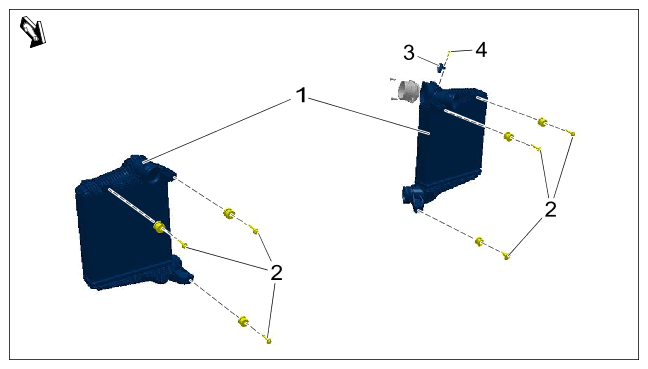

Fig 1: Charge-Air Cooler Component Location With Torque Specification (V6 Monoturbo)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of charge-air cooler (V6 monoturbo)

1	Charge-air cooler
2	> Tightening - torque 7 Nm (5 ftlb.)
3	Boost pressure sensor
4	Screw securing boost pressure sensor to charge-air cooler

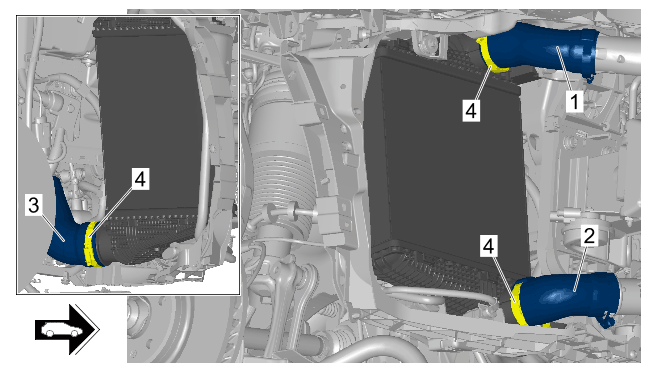

Fig 2: Pressure Hoses On Left Charge-Air Cooler Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure hoses on left charge-air cooler

1 to 3	Pressure hose
4	Screw-type clamp securing pressure hose to left charge-air cooler > Tightening - torque 5.5 Nm (4 ftlb.)

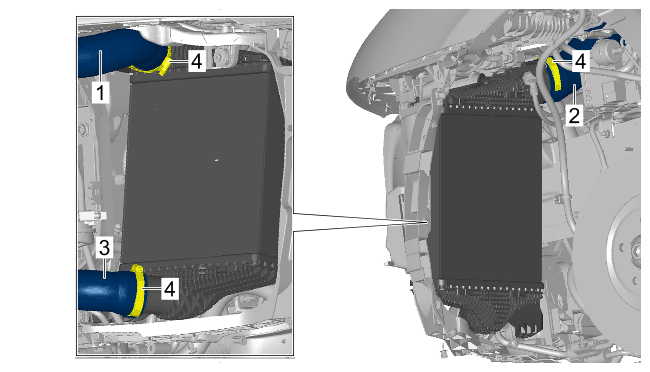

Fig 3: Pressure Hoses On Right Charge-Air Cooler Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure hoses on right charge-air cooler

1 to	Pressure hose
3
4	Screw-type clamp securing pressure hose to right charge-air cooler > Tightening - torque 5.5 Nm (4 ftlb.)
