Adjust Rear-Axle Camber

WARNING: This page is about a different variant/trim than selected.

Adjust camber at the rear axle -1- at the upper control arm.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

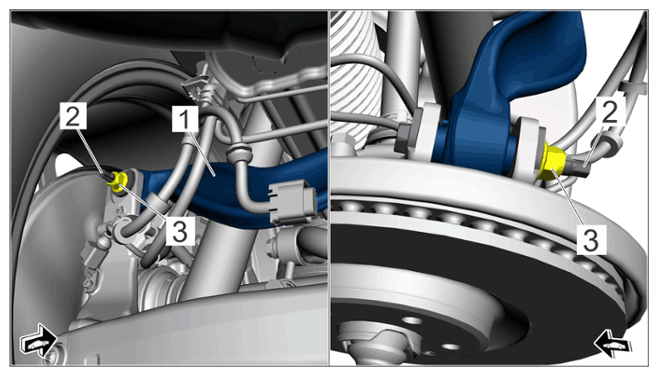

Camber adjustment on rear axle
1. 1.1 Loosen nut -3- on threaded joint for the upper control arm -1- at the wheel side.
2. 1.2 Turn the camber eccentric on the hexagon -2- of the eccentric screw until the camber value of the wheel is in the target range.
3. 1.3 Tighten the nut -3- and counter at the hexagon -2- .
  > Tightening - torque 95 Nm (70 ftlb.)
4. 1.4 Check the camber value again.
