Removing Tank Vent

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat protection on tank vent valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

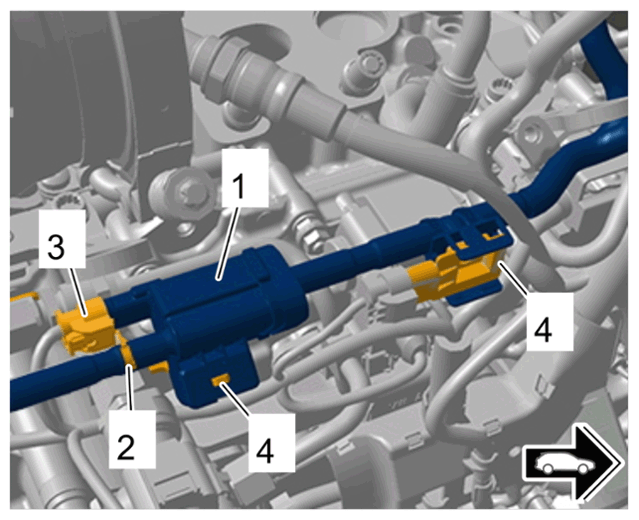

Tank vent valve

1. 2.1  Loosen spring band clamp -2-  using > VAS 6890 - spring band clamp pliers  and pull hose off the tank vent valve -1-  .
2. 2.2  Release and disconnect electric plug connection on tank vent valve -3-  .
3. 2.3  Pull tank vent valve -1-  off holders -4-  .
4. 2.4  Close off line connections using suitable stoppers.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

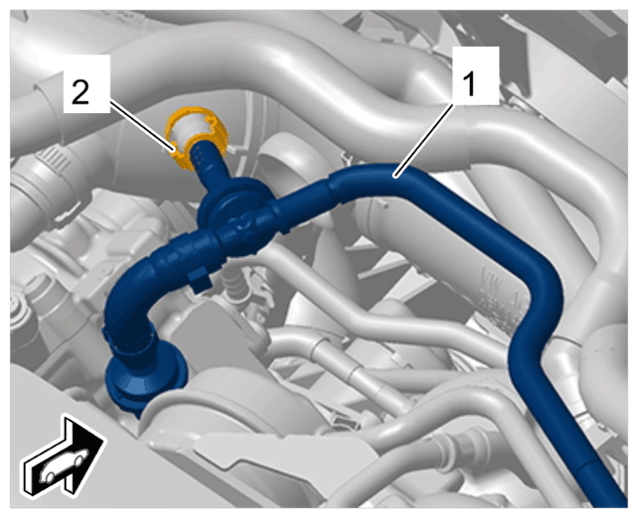

Tank vent valve line on pressure pipe

1. 3.1  Release and disconnect quick connector on tank vent valve line -2-  .
2. 3.2  Disconnect tank vent valve line -1-  from the pressure pipe.
3. 3.3  Close off line connections using suitable stoppers.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

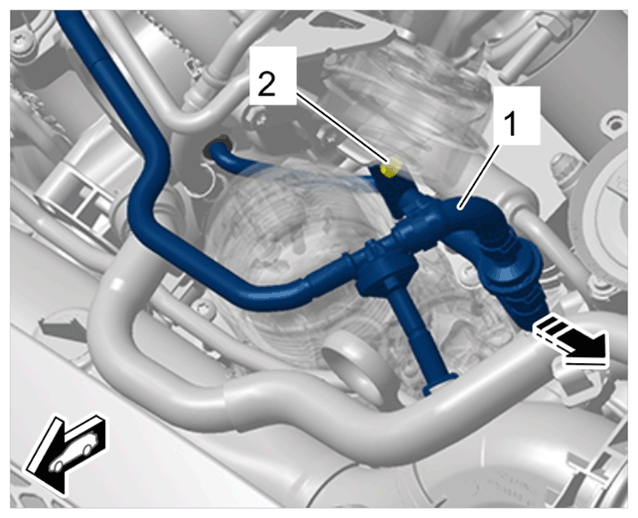

Tank vent valve line on turbocharger

1. 4.1  Unscrew screw for tank vent valve line -2-  .
2. 4.2  Disconnect tank vent valve line -1-  from the turbocharger -Arrow-  .
3. 4.3  Close off line connections using suitable stoppers.
