Removing Boost Pressure Control Cycle Valve

WARNING: This page is about a different variant/trim than selected.
  1. Pull carbon canister valve -1-  off the holder -2-  and set line -3-  aside.
    G15151440Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Carbon canister valve

  2. Remove boost pressure control cycle valve -1-  .

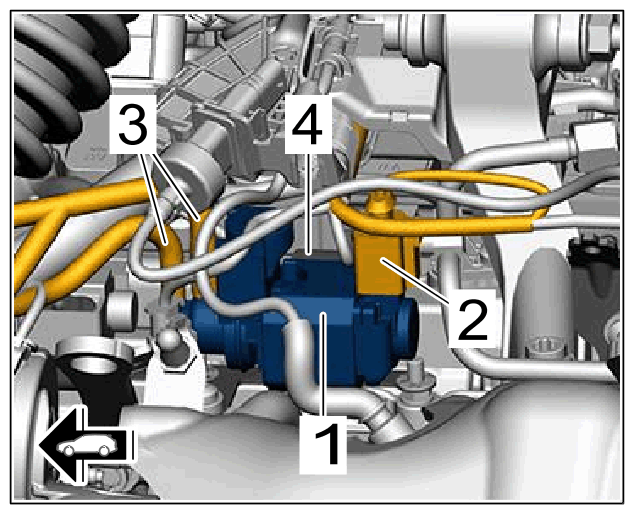

    G15151441Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Frequency valve for boost pressure control cycle valve

    1. 2.1  Release and disconnect electric plug connection -2-  .
    2. 2.2  Pull off vacuum hoses -3-  .
    3. 2.3  Pull frequency valve for the boost pressure control cycle valve -1-  off the -4-  holder.
