Removing Bypass Flap Control Box
WARNING: This page is about a different variant/trim than selected.
- Remove control box.
- 1.1
Pull off vacuum hose
- 1.2
Pull off retaining spring -3-
and pull control rod off the actuating lever -4-
on the turbocharger.
- 1.3
Unscrew nuts -2 and 5-
and remove control box.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

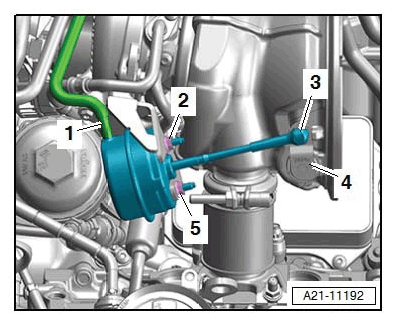

Bypass flap control box
