Installing Bypass Flap Control Box
WARNING: This page is about a different variant/trim than selected.
- Install pressure unit.
- 1.1

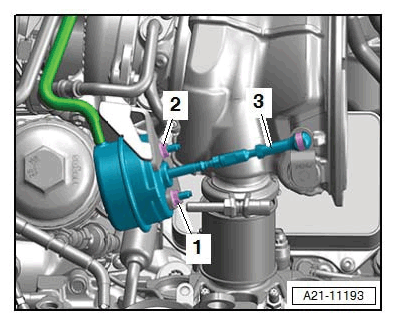

Position pressure unit with adjustable control rod on the turbocharger.
- 1.2
Fit and tighten nuts -1 and 2-
.
- Tightening torque 8 Nm (6 ftlb.)
- 1.3
Press ball socket -3-
onto the ball pin of the actuating lever
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Adjustable control box
