Removing Right Charge-Air Cooler

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect pressure hoses -1 to 3-  .

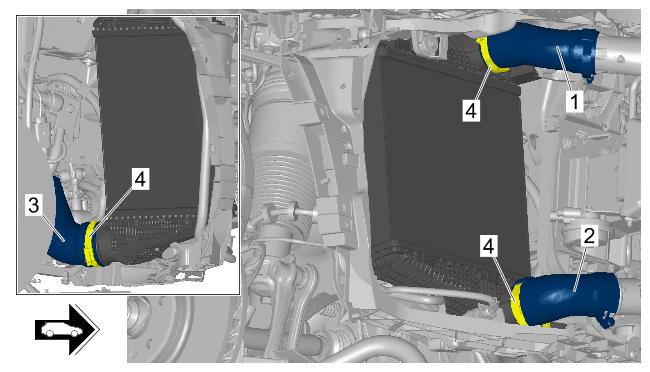

    G15151417Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure hoses on right charge-air cooler

    1. 1.1  Loosen screw-type clamps -4-  .
    2. 1.2  Disconnect pressure hoses -1 to 3-  from charge-air cooler.
    3. 1.3  Close off connections using suitable stoppers.
  2. Remove charge-air cooler -1-  .

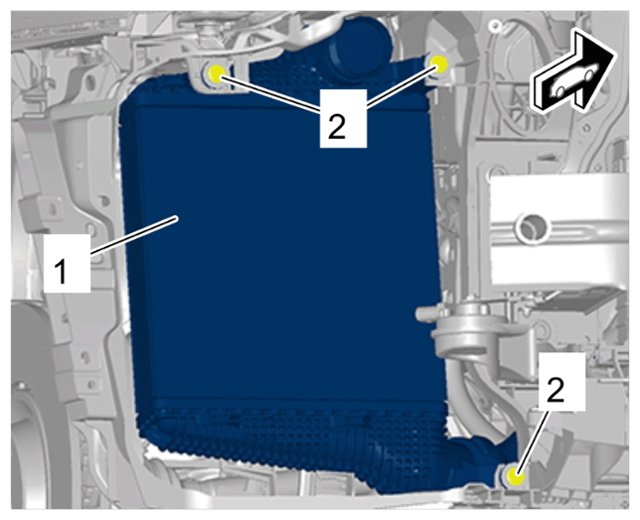

    G15151418Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Charge-air cooler, right

    1. 2.1  Unscrew screws on charge-air cooler -2-  .
    2. 2.2  Remove charge-air cooler -1-  .
