Removing Pressure Pipe (From Charge-Air Cooler To Bottom Of Charge-Air Cooler)

WARNING: This page is about a different variant/trim than selected.

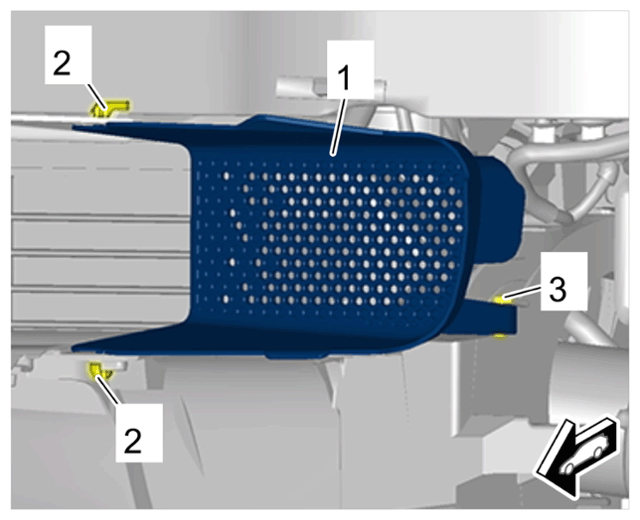

Remove cover -1- on both sides of the vehicle.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover
1. 1.1 Disengage retaining lugs on covers -2- .
2. 1.2 Unclip clips on covers -3- .
3. 1.3 Right side only:
  Release and disconnect electric plug connection on the temperature sensor.
4. 1.4 Remove covers -1- .

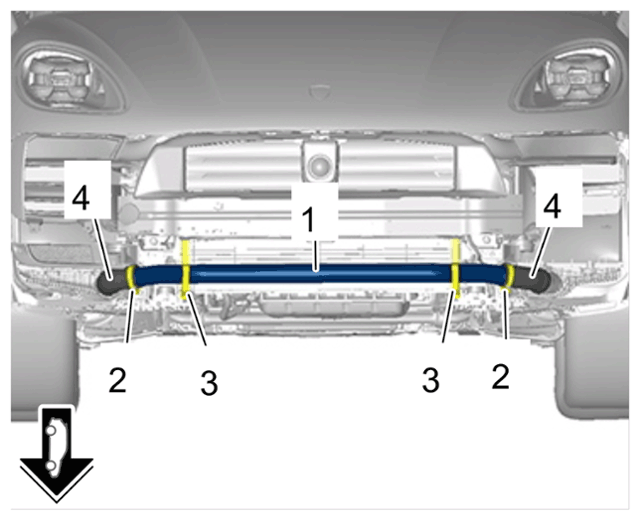

Remove pressure pipe -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure pipe (from charge-air cooler to bottom of charge-air cooler)
1. 2.1 Loosen screw-type clamps -2- .
2. 2.2 Detach rubber holder -3- .
3. 2.3 Pull pressure pipe -1- out of the pressure hoses -4- and remove it.
