Installing Recirculating Air Valve (V6 Biturbo)
WARNING: This page is about a different variant/trim than selected.
- Install recirculating air valve -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

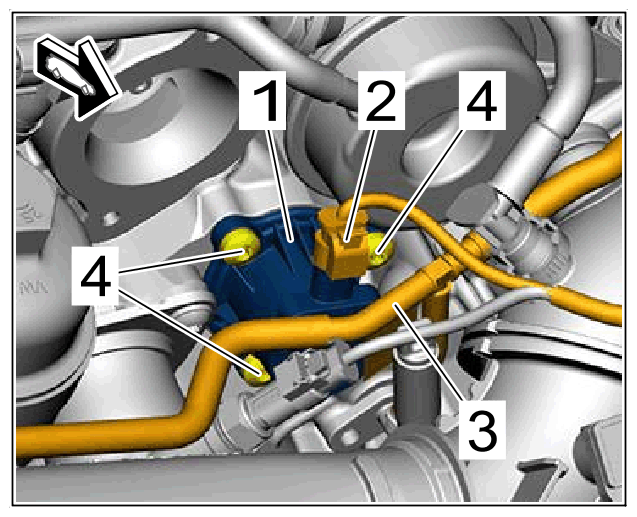

Recirculating air valve - V6 biturbo
- 1.1
Replace sealing ring on recirculating air valve.
- 1.2
Place recirculating air valve -1-
with new
sealing ring in installation position.
- 1.3
Screw in and tighten screws -4-
.
- Tightening torque 9 Nm (6.5 ftlb.)
