Removing Intake Manifold

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect electric wiring harness -1-  .

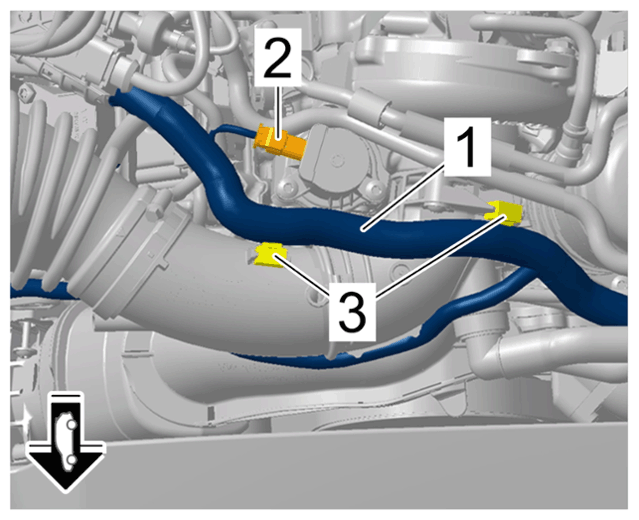

    G15151380Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wiring harness

    1. 1.1  Release and disconnect electric plug connection -2-  .
    2. 1.2  Unclip clips -3-  .
  2. Remove intake manifold -1-  .

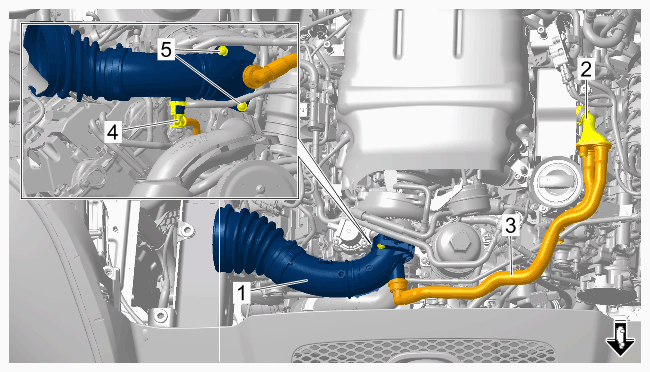

    G15151381Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Intake manifold

    1. 2.1  Release and disconnect plug-in coupling -2-  .
    2. 2.2  Move positive crankcase ventilation line -3-  aside.
    3. 2.3  Release and disconnect plug-in coupling -4-  .
    4. 2.4  Unscrew screws for intake manifold -5-  .
    5. 2.5  Remove intake manifold -1-  together with positive crankcase ventilation line -3-  .
