Installing Brake Booster Vacuum Pump
WARNING: This page is about a different variant/trim than selected.
- Installation is performed in reverse order. Pay particular attention to the following:
- 1.1 Replace sealing rings.
- 1.2 Align vacuum pump driver.
- 1.3 Tighten screws on vacuum pump -2-
.
> Tightening - torque 9 Nm (6.5 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

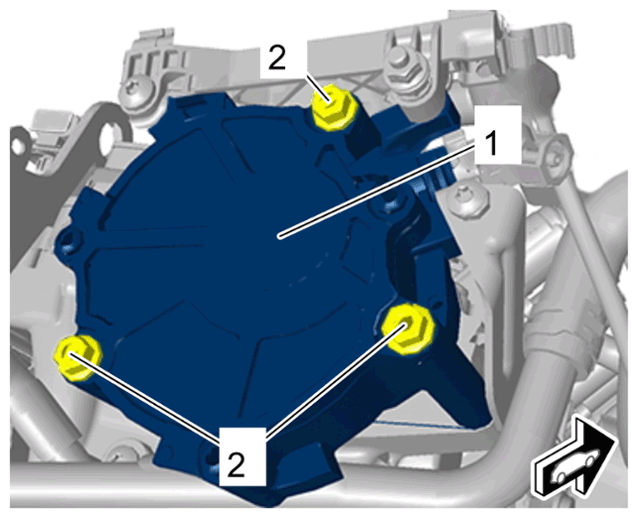

Vacuum pump
- 1.4 Tighten screw on coolant line holder -6-
.
> Tightening - torque 9 Nm (6.5 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

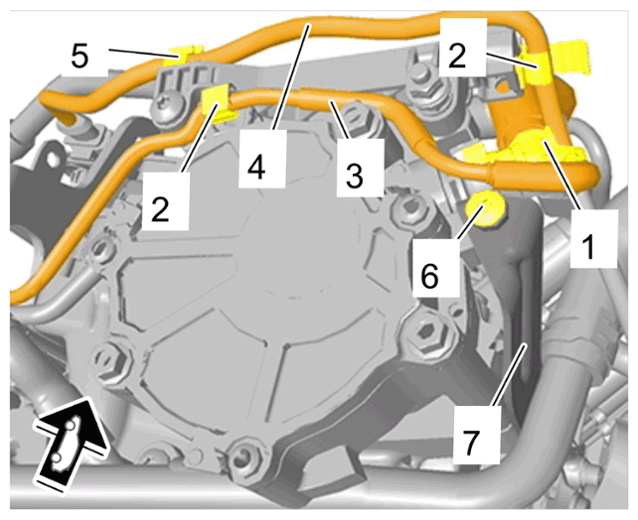

Vacuum pump lines
- Install heat shield -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

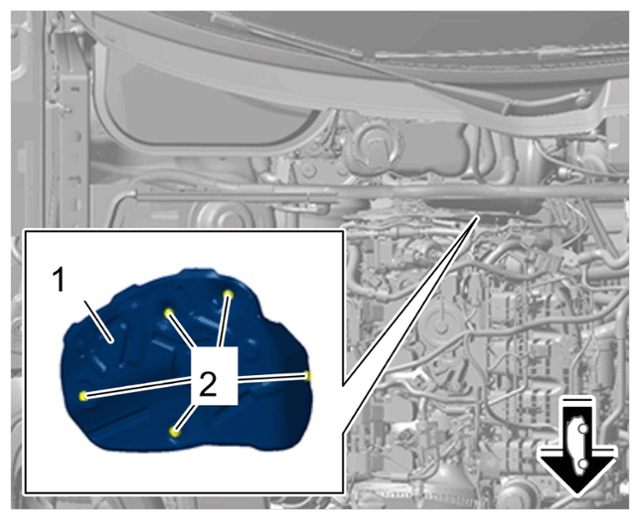

Heat shield
- 2.1 Fit heat shield -1-
.
- 2.2 Fit and tighten screws and nuts.
Screws:
> Tightening - torque 8 Nm (6 ftlb.)
Nuts:
> Tightening - torque 8 Nm (6 ftlb.)
