Pressure Sensor
WARNING: This page is about a different variant/trim than selected.

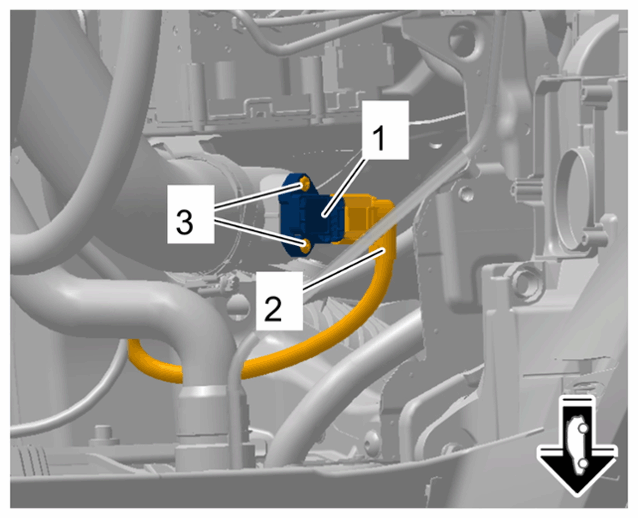

- Install pressure sensor -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Pressure sensor
- 1.1
Place pressure sensor in installation position -1-
with new
seal.
- 1.2
Fit and tighten screws -3-
.
- Tightening torque 5 Nm (3.5 ftlb.)
- 1.3
Connect and lock electric plug connection -2-
.
