Removing Electronic Adjuster For Turbocharger

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns
  • → Let hot components cool down.
  • → Wear personal protective gear.
  1. Release clamping spring -2-  and remove electronic adjuster control rod on turbocharger -1-  in -direction of arrow-  .
    G15150974Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electronic adjuster control rod for turbocharger

  2. Remove electronic adjuster for turbocharger -1-  .

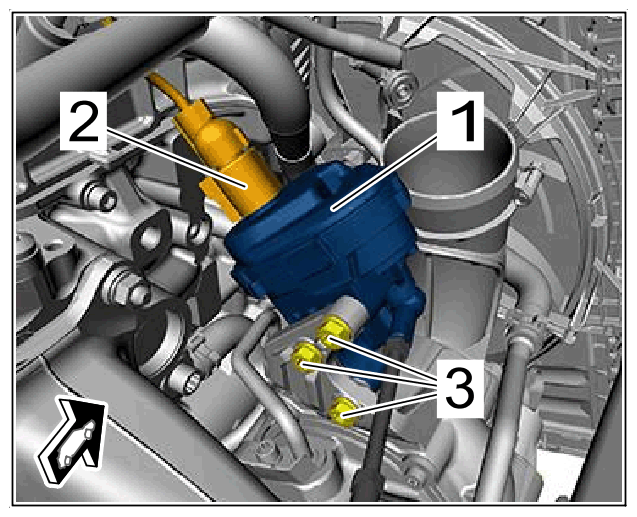

    G15150975Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electronic adjuster for turbocharger

    1. 2.1  Release and disconnect electric plug connection -2-  .
    2. 2.2  Unscrew screws -3-  and guide electronic adjuster for turbocharger -1-  out of the engine compartment.
