Removing Recirculating Air Valve

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns
  • → Let hot components cool down.
  • → Wear personal protective gear.
  1. Remove recirculating air valve -1-  .

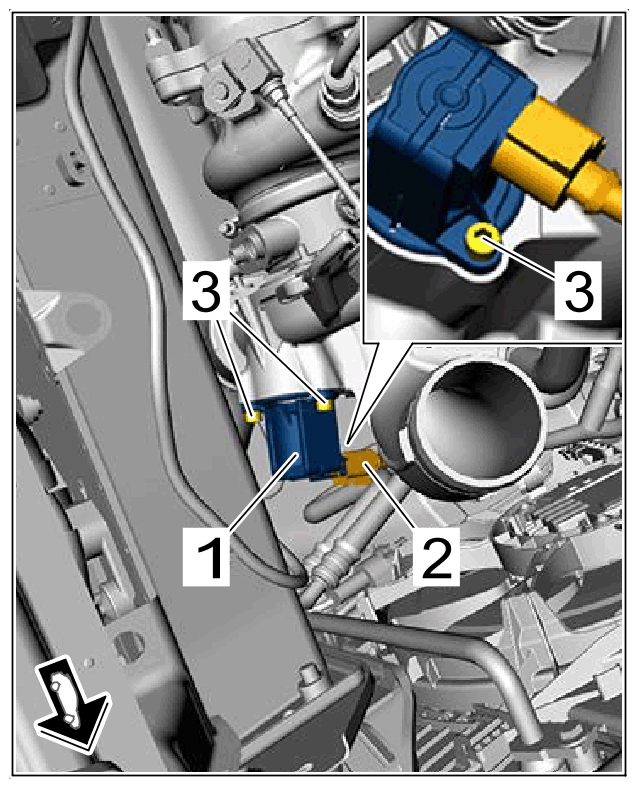

    G15150962Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Recirculating air valve

    1. 1.1  Mark the installation position.
    2. 1.2  Release and disconnect electric plug connection recirculating air valve -2-  .
    3. 1.3  Thread off screws -3-  , remove recirculating air valve -1-  and guide it out.
