Removing Moulded Hose (Pressure Pipe - Sound Box)
WARNING: This page is about a different variant/trim than selected.
- Remove -1-
moulded hose.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

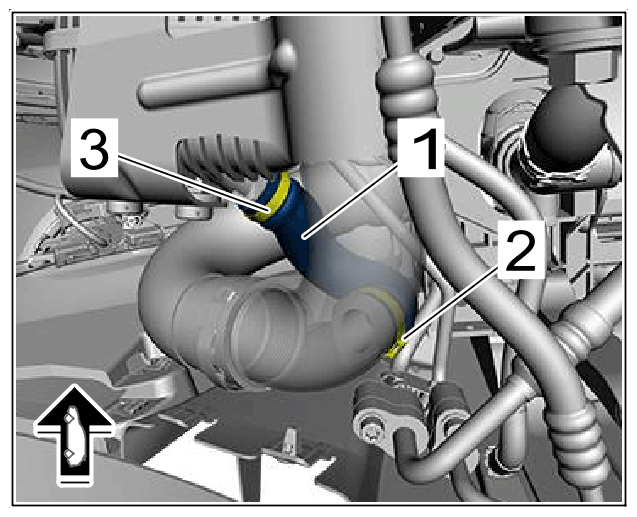

Moulded hose (pressure pipe - sound box)
- 1.1
Loosen clamp -2 and 3-
using a suitable tool.
- 1.2
Pull off the moulded hose -1-
, lead it out and seal the line connections with suitable plugs.
- 1.3
Collect escaping oil.
