Removing Air Guide For Charge-Air Cooler

WARNING: This page is about a different variant/trim than selected.
  1. Remove air guide for charge-air cooler -1-  .
    G15150930Courtesy of PORSCHE CARS NORTH AMERICA, INC.

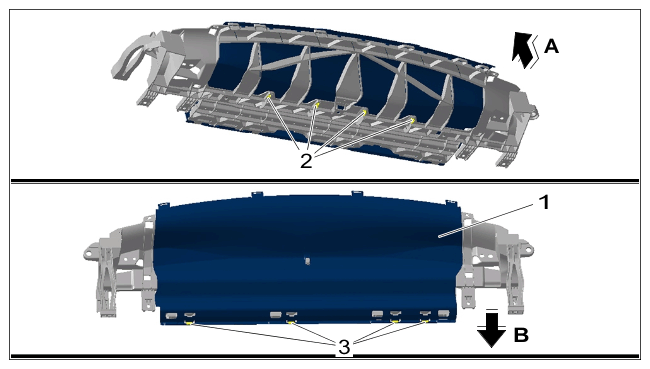

    Air guide on charge-air cooler

    1. 1.1  Release front locking lugs -2-  and detach air guide for charge-air cooler -1-  from pedestrian protection -arrow A-  .
    2. 1.2  Release rear locking lugs -3-  and remove air guide for charge-air cooler -1-  from pedestrian protection -arrow B-  .
