Remove Valve Lifter

Information

The pictures shown in this document may differ from the original.

Information

> The - most important working regulations and warning notes

• The most important working regulations and warning notes must be observed.

1. If you intend to re-use hydraulic tappets, safety clips and valve levers:

   Mark allocation of the components using a coloured marker.

2. Remove hydraulic tappet -1-  and valve lever -2-  .
   1. 2.1  Take hydraulic tappet -1-  with valve lever -2-  out of the cylinder head together.

      Information

      If you intend to re-use hydraulic tappets and valve levers, check that the components are not damaged.

   2. 2.2  Check component allocation and check that all components are fitted.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

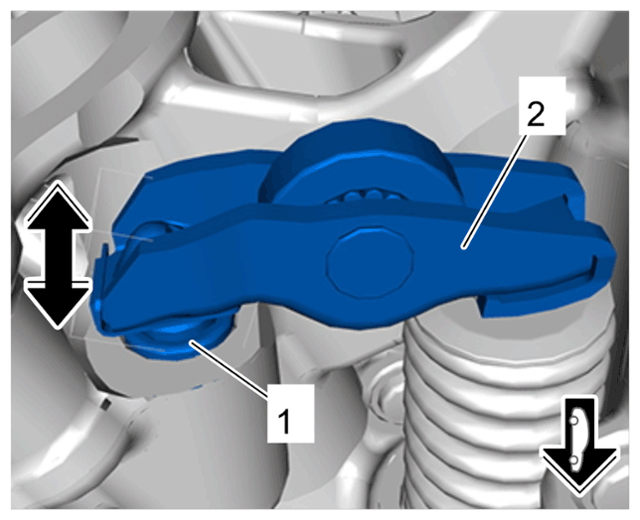

      Hydraulic tappet with valve lever in cylinder head

3. Remove hydraulic tappet -2-  from valve lever -3-  .
   1. 3.1  Open safety clip -1-  carefully.
   2. 3.2  Remove safety clip -1-  and hydraulic tappet -2-  .

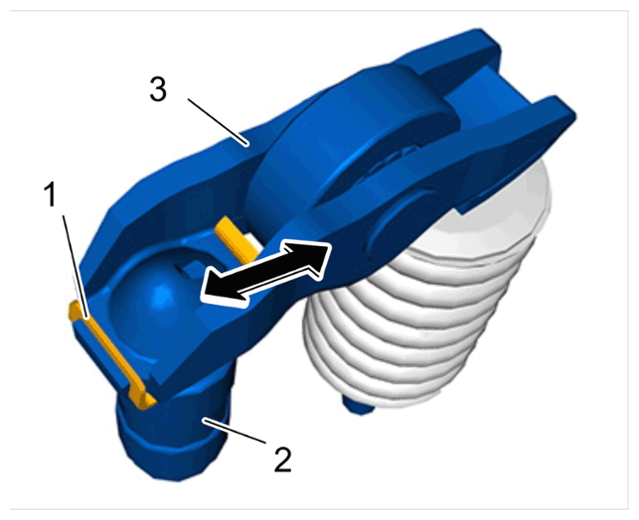

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Hydraulic tappet
