Removing Hydraulic Valve For Valve Lift Switchover

WARNING: This page is about a different variant/trim than selected.

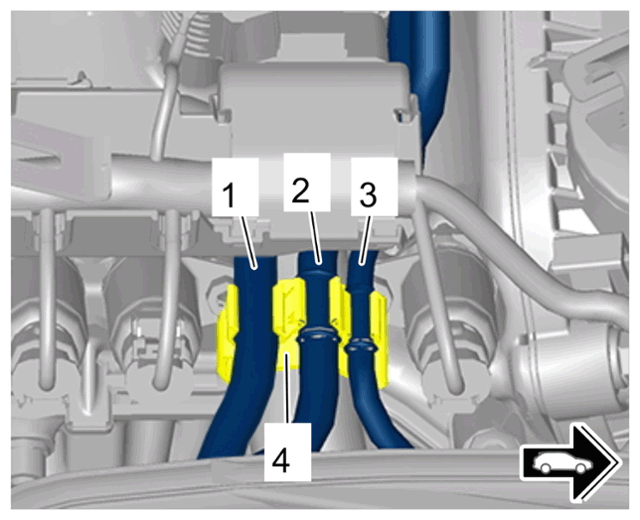

Only when removing a hydraulic valve for valve lift switchover on cylinder 1:
Unclip lines -1 to 3- from holder -4- and set them aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lines

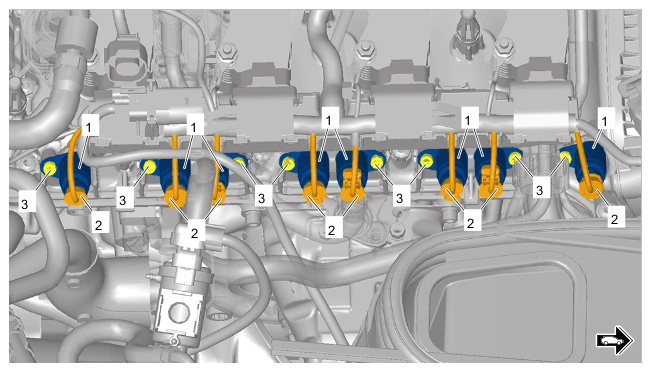

Remove hydraulic valves for valve lift switchover -1- .
1. 2.1 Release and disconnect electric plug connections on hydraulic valves for valve lift switchover -2- .
2. 2.2 Unscrew screws on hydraulic valves for valve lift switchover -3- .
3. 2.3 Remove hydraulic valves for valve lift switchover -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hydraulic valves for valve lift switchover
