Removing Camshaft Controller Actuator
WARNING: This page is about a different variant/trim than selected.
- Remove camshaft controller actuators -1 and 2-
.
- 1.1
Release and disconnect cable plug -3 and 4-
.
- 1.2
Unscrew screws -5-
.
- 1.2.1
Replace screws.
- 1.3
Remove camshaft controller actuator -1 and 2-
.
- 1.4
Replace O-rings.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

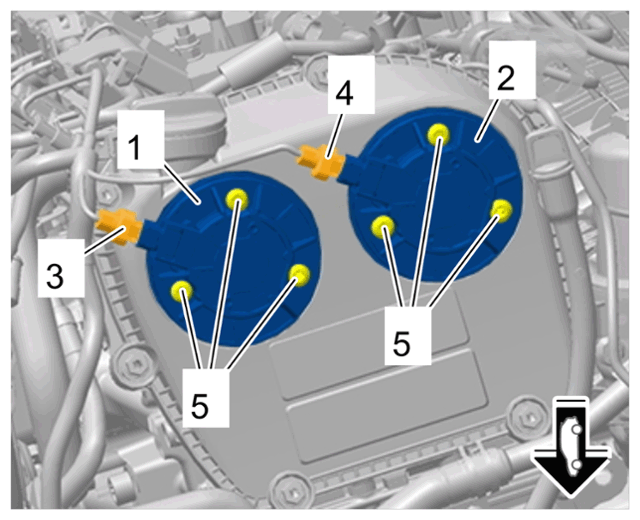

Camshaft controller actuators
