Removing Chain Tensioner For Oil Pump
WARNING: This page is about a different variant/trim than selected.

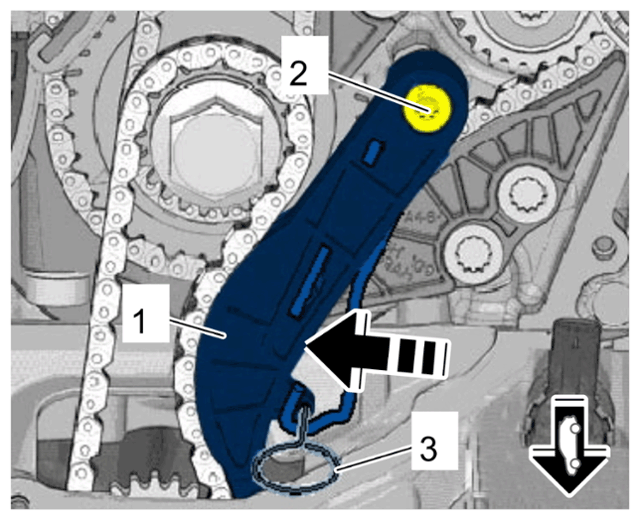

- Remove chain tensioner for oil pump -1-
.
- 1.1
Press clamp in -direction of arrow-
and lock it using T40011 - locking pin-3-
.
- 1.2
Unscrew guide pin -2-
and remove chain tensioner for oil pump -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Chain tensioner for oil pump
