Removing Timing Chain

NOTIFICATION

Timing not set correctly

• Risk of engine damage
• Rough running engine
• Loss of engine power
  1. → Do not use force when fitting the staking tool.
  2. → Make sure that the gap is equal on both sides.
  3. → When inserting the staking tools, do not use force to turn the camshafts against any resistance.
  4. → The engine must be exactly at top dead centre.
  5. → The opposite cylinder must be at ignition TDC.

Information

An offset from one tooth indicates a deviation from the setpoint value of approx. 6 mm.

If an offset is detected, the timing chain must be re-fitted.

1. Remove bearing saddle -1-  .
   1. 1.1  Unscrew screws -2-  .

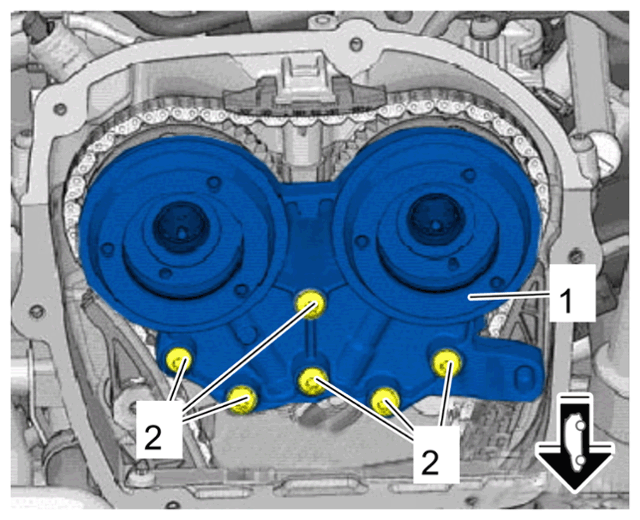

   2. 1.2  Carefully loosen and remove the bearing saddle -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bearing saddle

   Information

   Unless otherwise specified, the engine must not be turned against the running direction of the engine.

2. Turn the crankshaft as far as required using a suitable tool until the markings -Arrows-  on the camshaft timing gears are facing upwards.

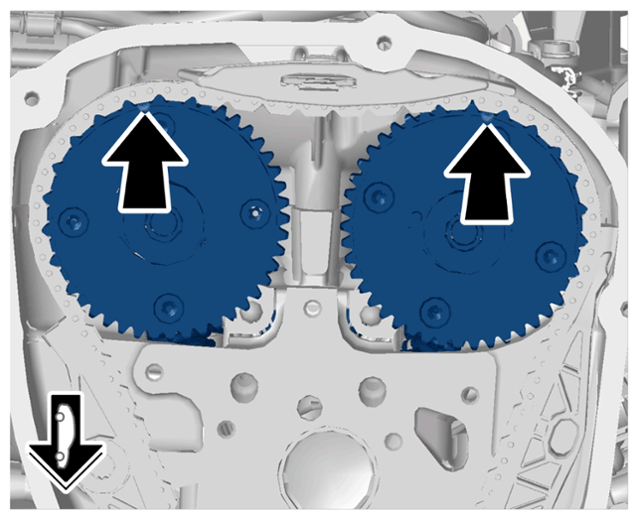

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Markings on camshaft timing gears

   Information

   Once maximum pointer deflection is reached, the piston is at top dead centre (TDC).

3. Move cylinder 1 to TDC position.
   1. 3.1  Prepare VAS 6079 - Dial gauge-2-  .
      1. 3.1.1 T10170A - Dial gauge adapter-1-  must be screwed fully into the spark plug bore of cylinder 1.
      2. 3.1.2  Insert VAS 6079 - dial gauge-2-  into T10170A - dial gauge adapter-1-  and clamp securely with a clamping nut.
   2. 3.2  Turn the engine slowly in direction of rotation of the engine until maximum deflection of the pointer on the VAS 6079 - dial gauge-2-  is reached.

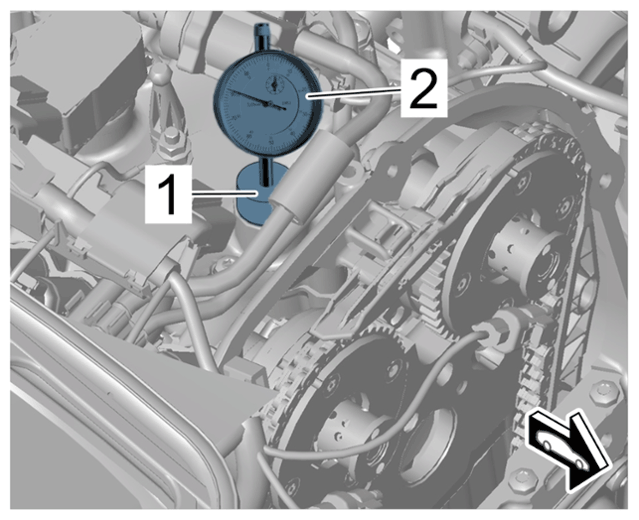

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Dial gauge on cylinder 1

4. Tighten the chain tensioner.
   1. 4.1  Unscrew screws -arrows A-  .
   2. 4.2  Insert T40243 - lever-1-  and secure with screws -arrows A-  .
      1. 4.2.1  Replace screws.
   3. 4.3  Press and hold the circlip -2-  on the chain tensioner.
   4. 4.4  Press T40243 - lever-1-  slowly in -direction of arrow B-  and hold securely.

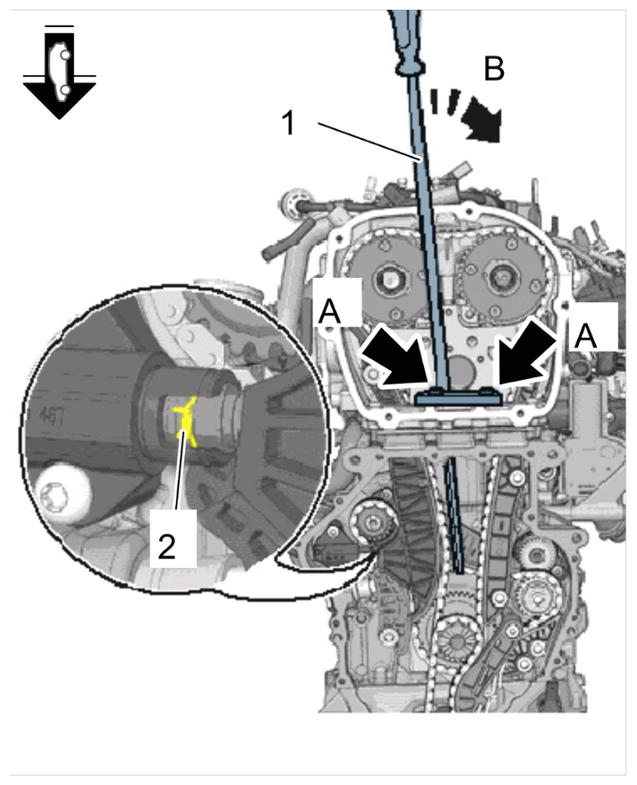

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Special tool for chain tensioner

5. Lock chain tensioner -1-  using T40267 - staking tool-2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Locking chain tensioner

6. T40243 - Lever-1-  must now be removed.
   1. 6.1  Unscrew screws -arrows A-  .
   2. 6.2  Remove T40243 - lever-1-  .
   3. 6.3  Screw in and tighten new  screws -arrows A-  .

      Initial tightening 4 Nm (3 ftlb.)

      Final tightening +90°

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Special tool for chain tensioner

7. Remove upper guide rail -1-  .
   1. 7.1  Release catch on upper guide rail -1-  .
   2. 7.2  Pull upper guide rail -1-  forward and remove it.

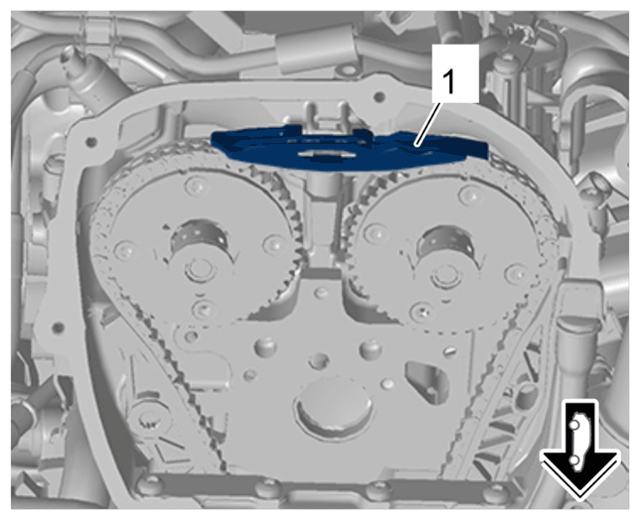

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Upper guide rail

8. Remove chain tensioner for oil pump -1-  .
   1. 8.1  Press clamp in -direction of arrow-  and lock it using T40011 - locking pin-3-  .
   2. 8.2  Unscrew guide pin -2-  and remove oil pump chain tensioner -1-  .

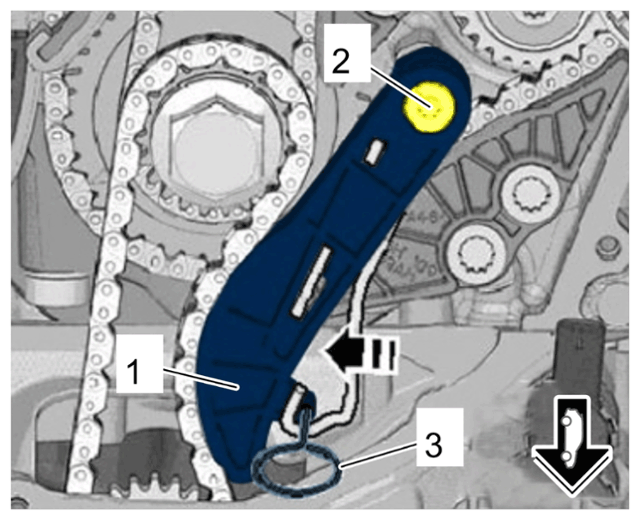

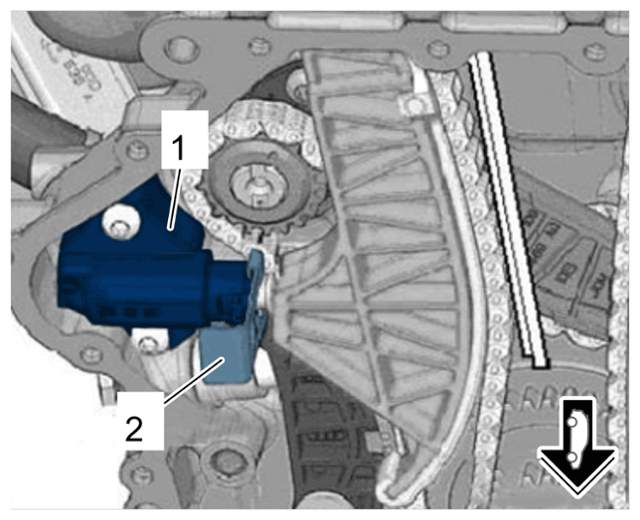

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Chain tensioner for oil pump

9. Loosen the guide and tensioning rail.
   1. 9.1  Remove guide rail -1-  .
      1. 9.1.1  Unscrew guide pins -3-  .
      2. 9.1.2  Guide side guide rail -1-  down and out.
   2. 9.2  Loosen tensioning rail -2-  .
      1. 9.2.1  Unscrew guide pins -4-  .
      2. 9.2.2  Guide tensioning rail -2-  downwards and leave it at this position.

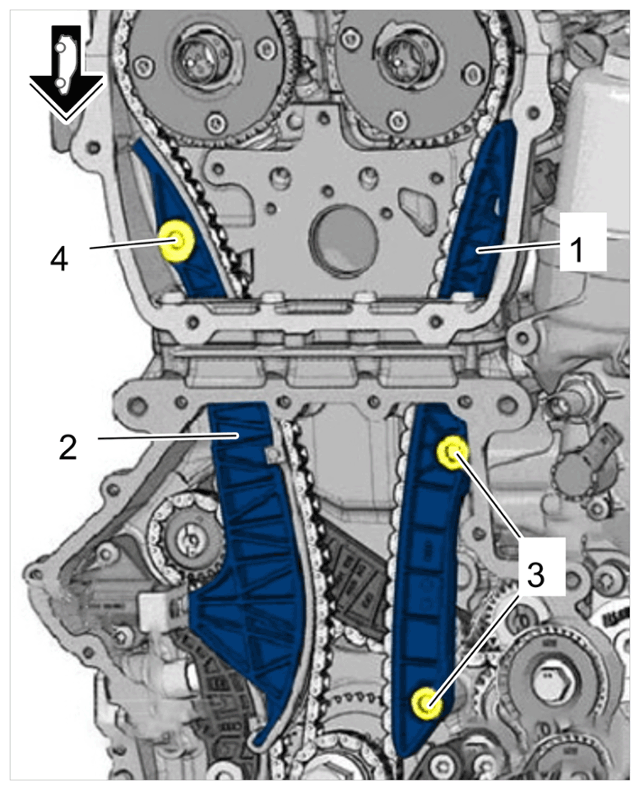

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Guide and tensioning rail

10. Remove camshaft timing chain.
