Installing Control Chain
WARNING: This page is about a different variant/trim than selected.
NOTIFICATION
Timing not set correctly
- Risk of engine damage
- Rough running engine
- Loss of engine power
- → Do not use force when fitting the staking tool.
- → Make sure that the gap is equal on both sides.
- → When inserting the staking tools, do not use force to turn the camshafts against any resistance.
- → The engine must be exactly at top dead centre.
- → The opposite cylinder must be at ignition TDC.
Information
The markings on the sprockets and the coloured chain links must match.
Markings on control chain and sprockets
- Marking on chain link
- Marking on sprocket (or cut out or colour coding, depending on type/manufacturer)

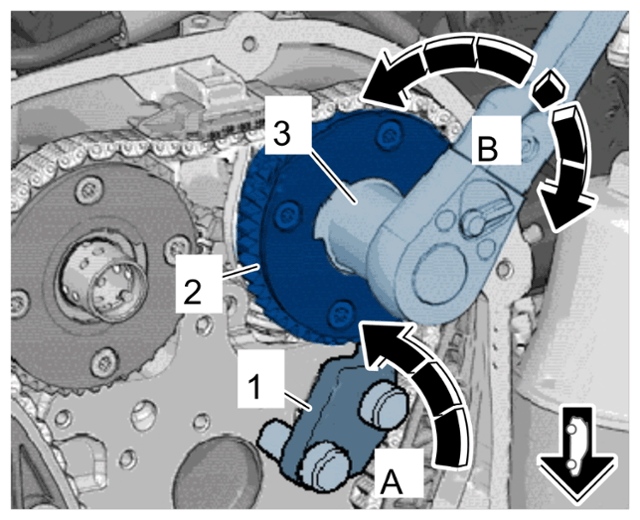

- Lock outlet camshaft.

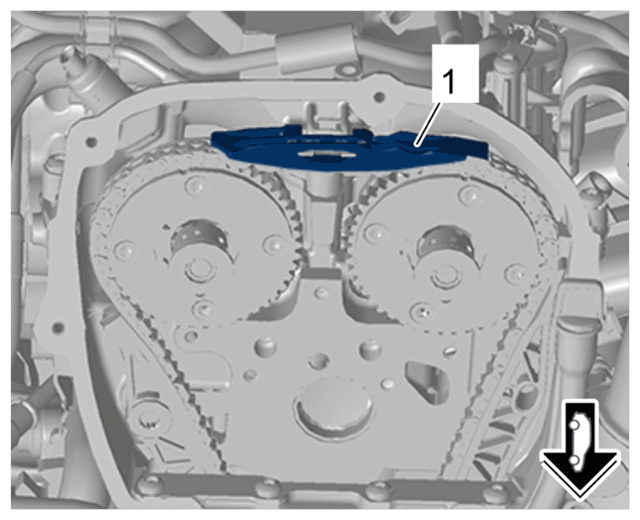

- 1.1 Secure T40271 - camshaft clamp /1 -1- to the cylinder head.
- 1.2 Turn camshaft gear -2- with T40266 - adapter-3- in -Arrow direction A- until the marking on the camshaft gear -2- corresponds to the marking on the cylinder head cover.
- 1.3 Push T40271 - camshaft clamp /1 -1- into the splines of the camshaft gear -2-Arrow B- .
Securing the outlet camshaft

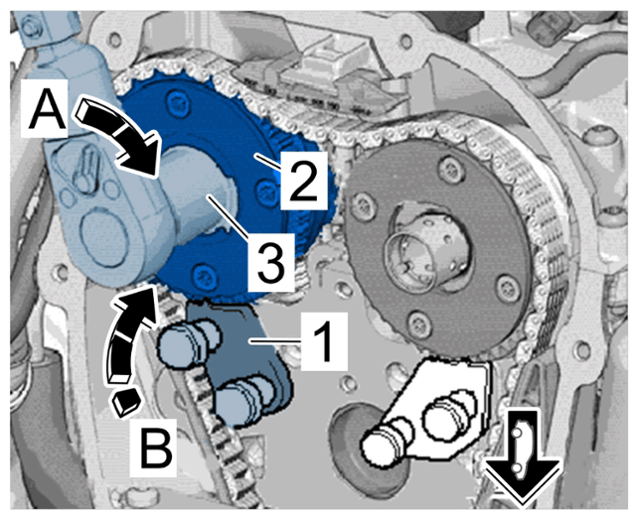

- Lock intake camshaft.
- 2.1 Secure T40271 - camshaft clamp /2 -1- on the cylinder head.
- 2.2 Turn camshaft gear -2- with T40266 - adapter-3- in -Arrow direction B- until the marking on the camshaft gear -2- corresponds to the marking on the cylinder head cover.
- 2.3 Push T40271 - camshaft clamp /2 -1- into the splines of the camshaft gear -2-Arrow A- .
Securing the intake camshaft
Information
Once maximum pointer deflection is reached, the piston is at top dead centre (TDC).
- Move first cylinder to TDC position.

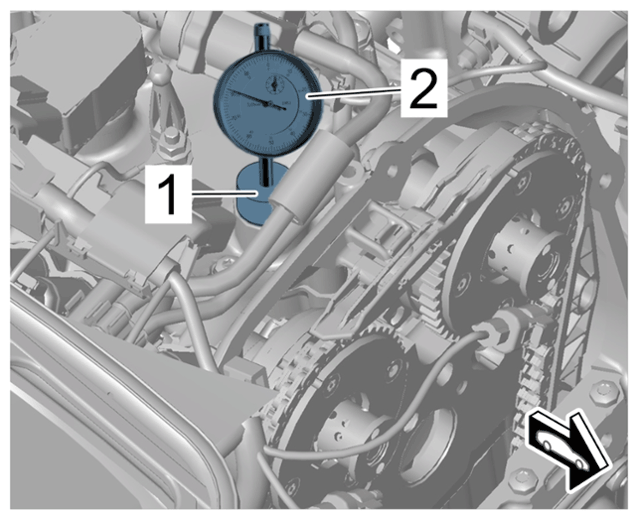

- 3.1 Turn crankshaft slowly in direction of rotation of the engine until maximum deflection of the pointer on the VAS 6079 -dial gauge-2- is reached.
Dial gauge on cylinder 1
- Fit camshaft control chain.
- 4.1 Position camshaft control chain with the coloured chain link facing the marking on the crankshaft gearwheel.

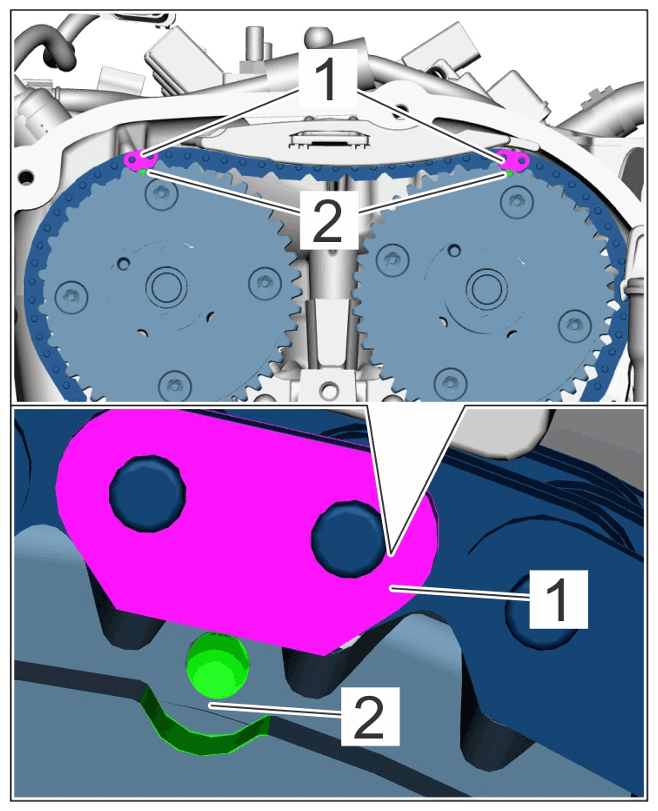

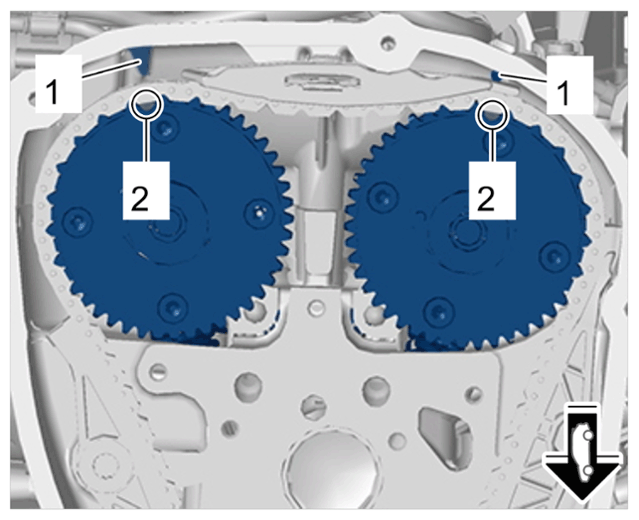

- 4.2 Fit camshaft control chain on the camshaft gears such that the coloured chain links are aligned with the markings -1- on the camshaft gears. Turn the camshafts slightly using T40266 - adapter if necessary.
- 4.3 Check that markings -1- are still aligned with markings -2- .
- 4.4 Using the VAS 6079 - dial gauge , check that the first cylinder is still in TDC.
- 4.5
Only if timing is not OK:
Remove control chain and repeat steps 4.1 to 4.4.
TDC markings on crankshaft and camshafts
- Secure the guide and tension rail.
- 5.1

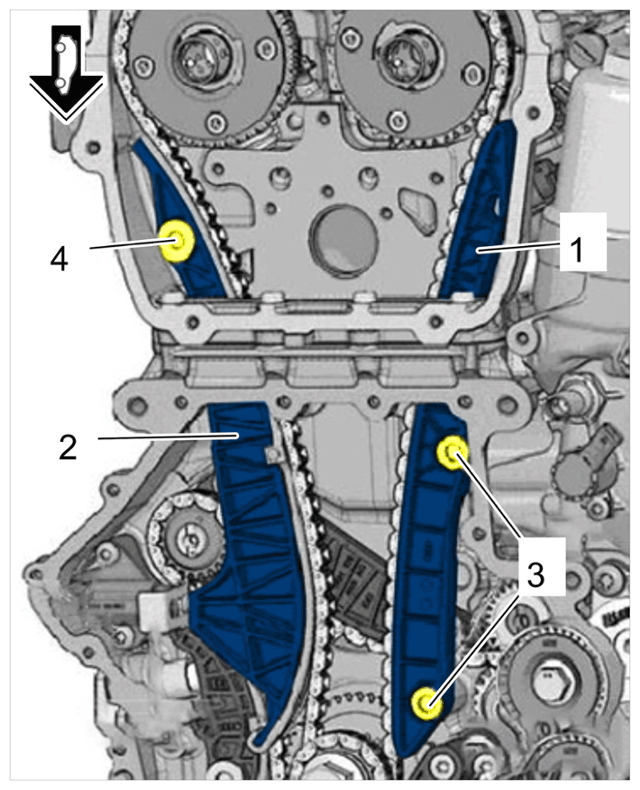

Secure the tension rail -2-
.
- 5.1.1 Position tension rail -2- .
- 5.1.2 Screw in and tighten guide pin -4- .
> Tightening - torque 20 Nm (15 ftlb.)
- 5.2
Install guide rail -1-
.
- 5.2.1 Position the side guide rail -1- .
- 5.2.2
Screw in and tighten guide pin -3-
.
> Tightening - torque 20 Nm (15 ftlb.)
Guide and tension rail
- 5.1
Secure the tension rail -2-
.
- Fit upper guide rail -1-
.
Upper guide rail

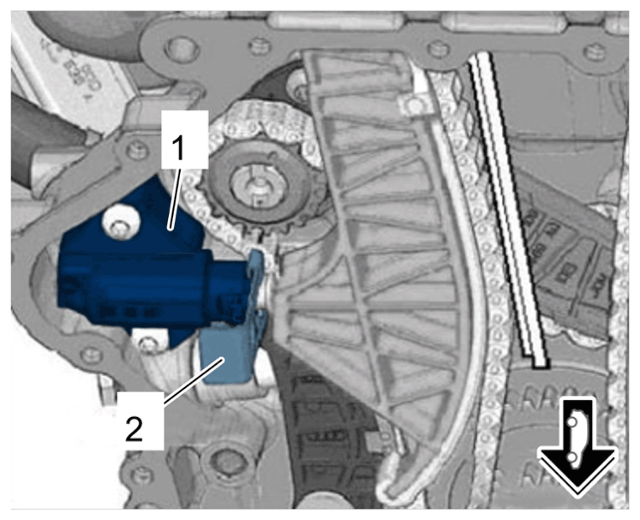

- Remove T40267 - staking tool-2-
from the chain tensioner -1-
.
Chain tensioner latch

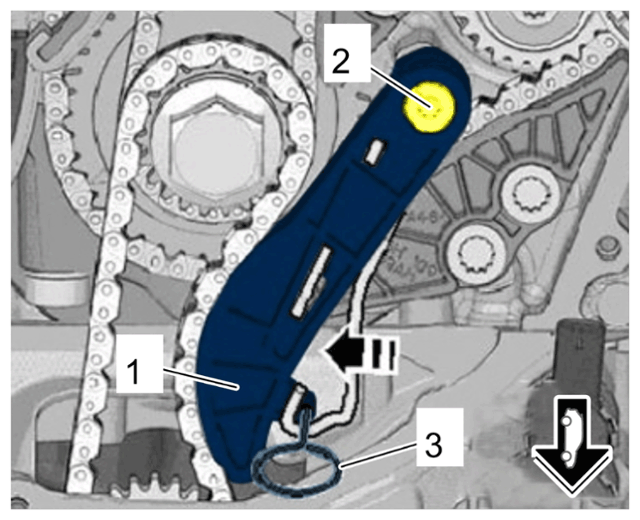

- Install chain tensioner for oil pump -1-
.
- 8.1 Position oil pump chain tensioner -1- .
- 8.2
Screw in and tighten guide pin -2-
.
> Tightening - torque 9 Nm (6.5 ftlb.)
- 8.3 Remove T40011 - staking pin-3- .
Chain tensioner for oil pump
- Remove T40271 - camshaft clamp /1
and T40271 - camshaft clamp /2.
- 9.1 Use T40266 - adapter to relieve intake camshaft and draw T40271 - camshaft clamp /1 out of the splines.
- 9.2 Use T40266 - adapter to relieve outlet camshaft and draw T40271 - camshaft clamp /2 out of the splines.
- 9.3 Unscrew and remove T40271 - camshaft clamp /1 and T40271 - camshaft clamp /2.
- Turn the engine through two turns and check the timing.
> WM, 150506 - CHECKING AND SETTING TIMING OF CAMSHAFTS (R4)
- 10.1 If the timing is OK: Remove special tools.
- 10.2 If timing is not OK: Set the control timing again.
- Install bearing saddle -1-

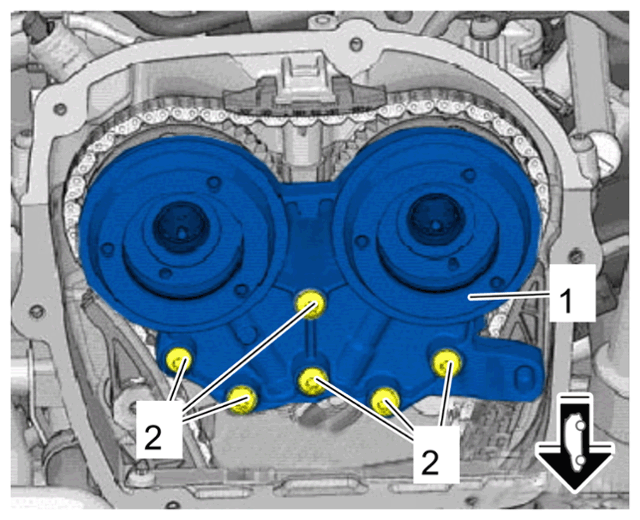

- 11.1 Replace bearing saddle screws -2- .
- 11.2 Fit bearing saddle -1- and screw in new bearing saddle screws -2- hand-tight.
- 11.3
Tighten bearing saddle screws -2-
.
- 1st Step: > Initial - tightening 4 Nm (3 ftlb.)
- 2nd Step: > Final tightening + 180°
Bearing saddle
