Installing Upper Chain Housing Cover (R4)

1. 1.1  Position upper chain housing cover -7-  .
2. 1.2  Fit screws and tighten in the sequence -1 to 6-  .

   > Tightening - torque 9 Nm (6.5 ftlb.)

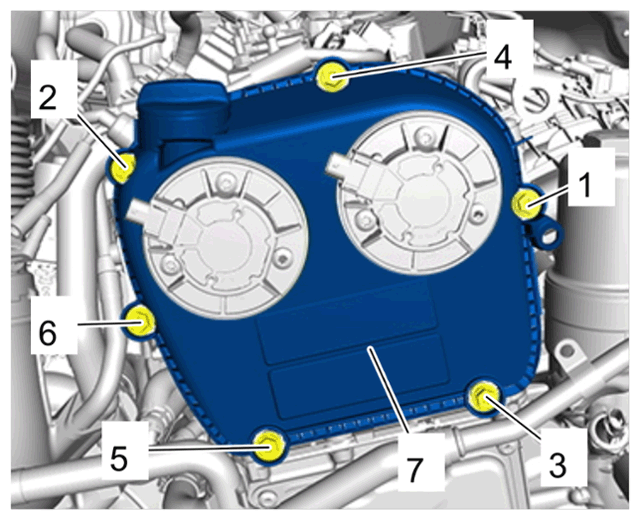

Fig 1: Upper Chain Housing Cover Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper chain housing cover

1. 2.1  Install new O-ring -5-  on guide tube.
2. 2.2  Fit guide tube for oil dipstick -1-  into the lower chain housing cover.
3. 2.3  Clip guide tube for oil dipstick into the upper chain housing cover -4-  .
4. 2.4  Secure coolant pipe -2-  .
   1. 2.4.1  Fit and tighten screws -3-  .

      > Tightening - torque 9 Nm (6.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

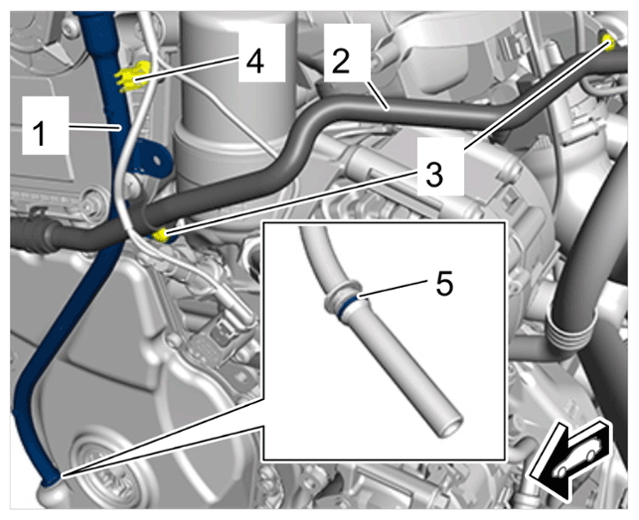

Guide tube for oil dipstick

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

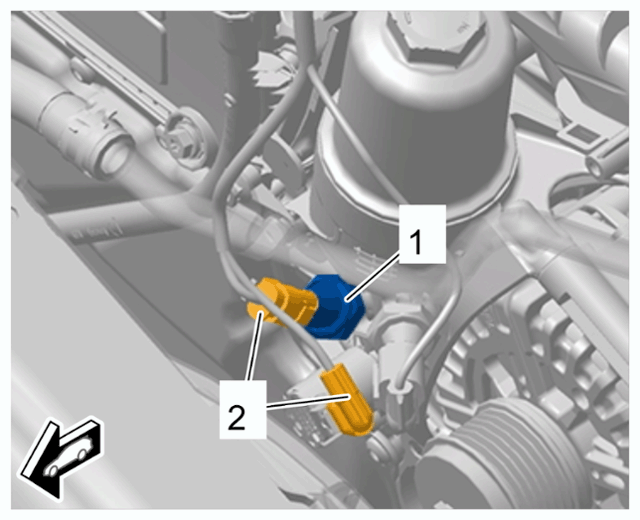

Oil-pressure sender on oil filter bracket
