High-Pressure Pump
WARNING: This page is about a different variant/trim than selected.

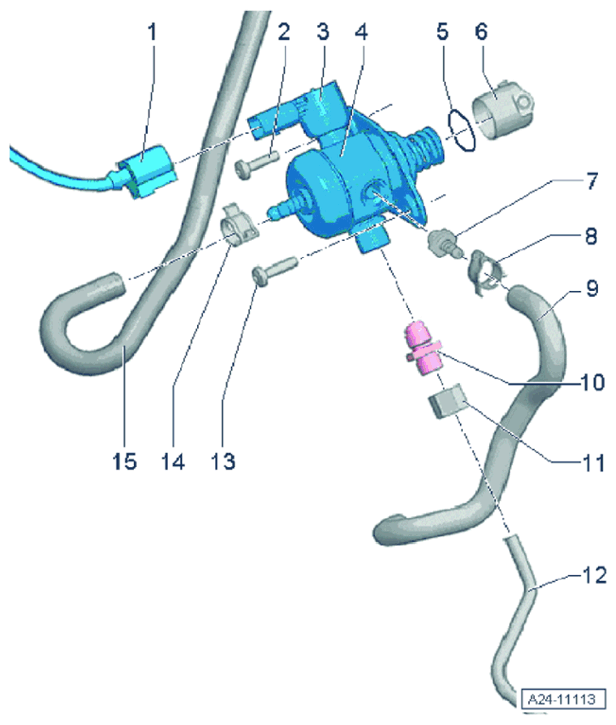

High-pressure pump
| 1 | Electric plug connection for fuel pressure control valve |
| 2 | Screw/replace > Tightening - torque 20 Nm (15 ftlb.) |
| 3 | Pressure regulator |
| 4 | High-pressure pump Make sure that no dirt gets into the fuel system during installation Protect the high-pressure pump from impact of any kind The fuel system must be depressurised for installation Do not strain fuel lines during installation |
| 5 | O-ring/replace if damaged |
| 6 | Rollertappet |
| 7 | Fuel line connection > Tightening - torque 20 Nm (15 ftlb.) |
| 8 | Clamp/replace |
| 9 | Fuel line Do not strain fuel lines during installation |
| 10 | Fuel line adapter/replace > Tightening - torque 40 Nm (30 ftlb.) |
| 11 | Nut > Tightening - torque 27 Nm (20 ftlb.) |
| 12 | Fuel line/coat ball with engine oil Do not strain fuel lines during installation |
| 13 | Screw/replace > Tightening - torque 20 Nm (15 ftlb.) |
| 14 | Spring band clamp |
| 15 | Fuel line |
