Removing Engine Cover (Design Cover)

WARNING: This page is about a different variant/trim than selected.

Carefully pull the engine cover (design cover) -1- up off the four fastening points one at a time -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

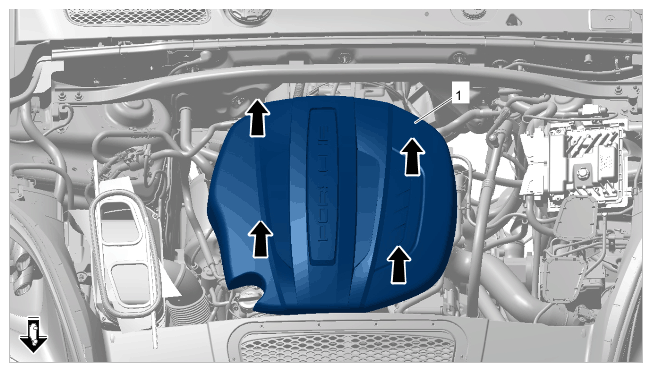

Engine cover (design cover)
Set engine cover (design cover) -1- down with the visible side on a soft surface -2- and check it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

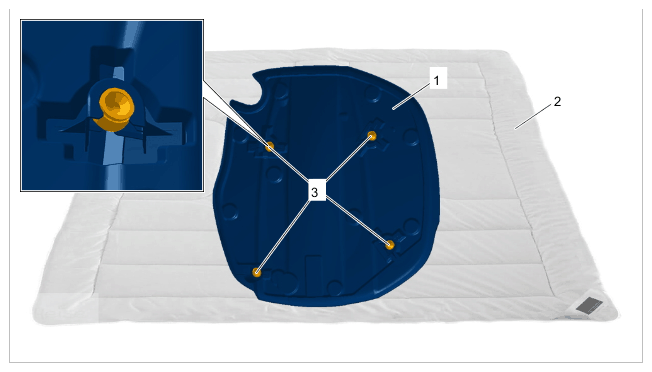

Engine cover (design cover) - from below
1. 2.1 Check heat insulation, spotwelds and air baffle plates for damage.
  1. 2.1.1 Replace engine cover (design cover) if damaged.
2. 2.2 Check rubber plug-in couplings -3- for damage and replace them if necessary.
