Removing Positive Crankcase Ventilation Hose

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

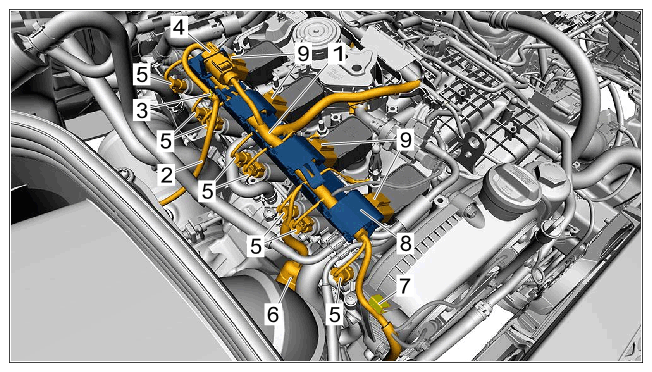

Electric wiring harness ignition coil

1. 1.1  Unclip electric line for oxygen sensor upstream of catalytic converter -2-  from the holder -3-  .
2. 1.2  Release, disengage and unclip electric plug connection for oxygen sensor upstream of catalytic converter -4-  .
3. 1.3  Releasing and disconnecting electric plug connection from camshaft controller actuator -5-  .
4. 1.4  Release and disconnect electric plug connection for turbocharger -6-  .
5. 1.5  Unclip clip -7-  .
6. 1.6  Open and remove line guide -8-  .
7. 1.7  Release and disconnect electric plug connections for ignition coil -9-  .
8. 1.8  Move electric wire harness for ignition coil -1-  aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

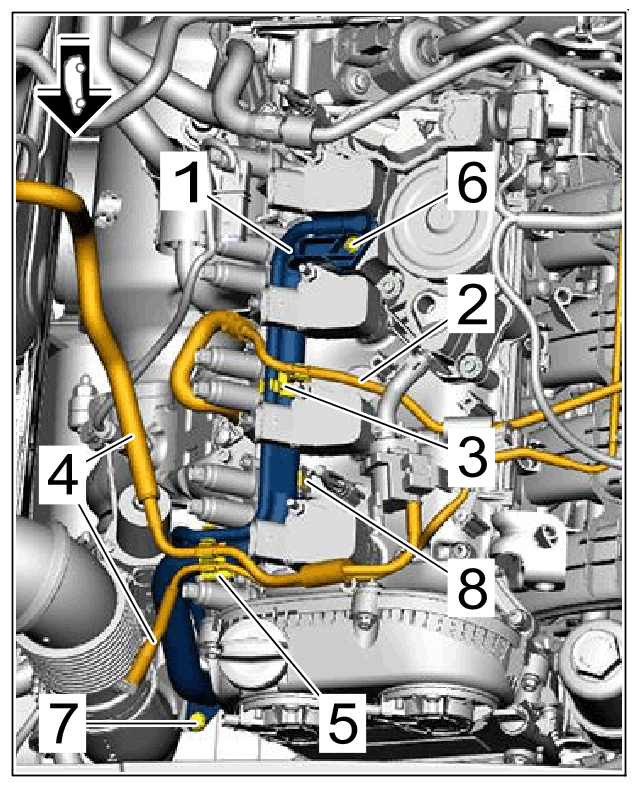

Positive crankcase ventilation hose

1. 2.1  Unclip the line -2-  from the holder -3-  .
2. 2.2  Unclip electric lines -4-  from the holder -5-  .
3. 2.3  Unscrew screws -6-  and -7-  .
4. 2.4  Open holder -5-  , pull positive crankcase ventilation hose -1-  out of the holder -8-  and guide it out.
