Preliminary Work

Information

The pictures shown in this document may differ from the original.

1. Remove all spark plugs.

   > 287020 - REMOVING AND INSTALLING SPARK PLUGS (R4)

   Information

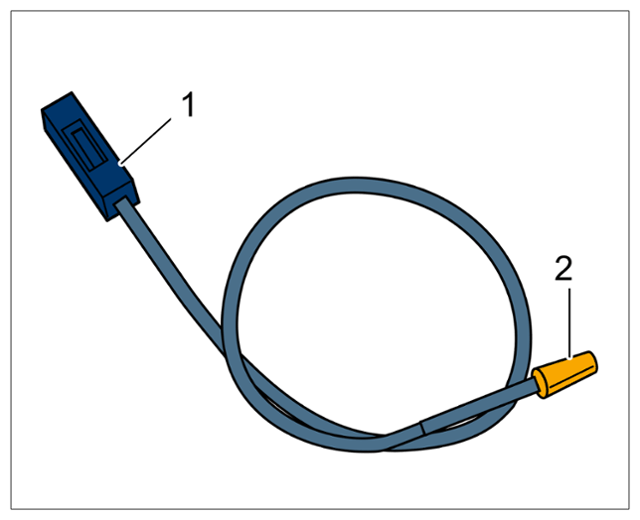

   The dead centre finder or "cylinder pipe" consists of a glass tube (inspection glass) with a piston -1-  , hose and a rubber cone -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Dead centre finder - "cylinder pipe"

   Information

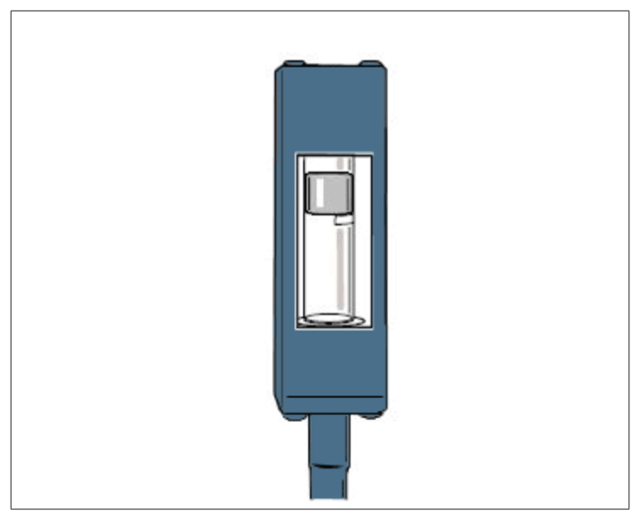

   The piston in the inspection glass is pressed upwards in the compression cycle so that it moves back down again immediately upon reaching TDC position Piston in TDC position.  The piston in the inspection glass stays down in overlapping TDC position.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Piston in TDC position

2. Position cylinder 1 at ignition TDC and remove tool (dead centre finder).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

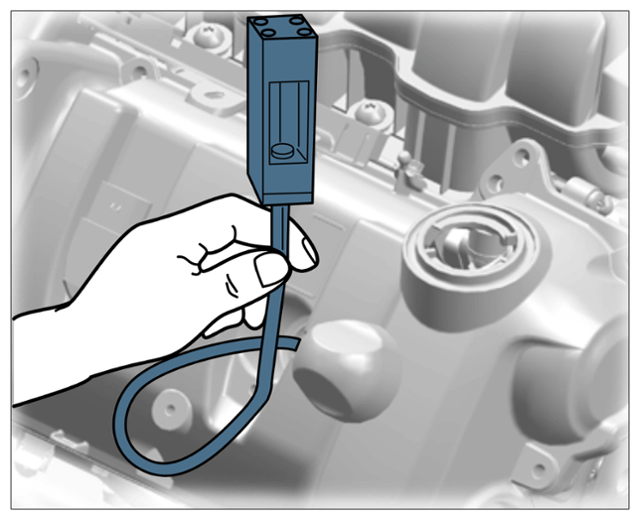

   Tool setup - dead centre finder

   1. 2.1  Press the rubber cone onto the spark plug hole of the first cylinder. The inspection glass must either be held by another person Tool setup - dead centre finder  or secured vertically at a clearly visible position using a magnet.
   2. 2.2  Turn the engine in direction of rotation at the crankshaft until the cylinder to be tested is at ignition TDC.
