Securing Engine On Assembly Support

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing
1. → Secure components to prevent them from falling down.

CAUTION: Heavy components

Risk of squashing
1. → Wear personal protective gear.
2. → Get someone to help if necessary.

Information

The engine needs to be suspended on an assembly support for certain repair work.

2024A - Lifting tackle must be engaged at the engine and at the VAS 6100 - workshop crane .
Secure the engine at the transmission side on the VAS 6095A - engine and gearbox support .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

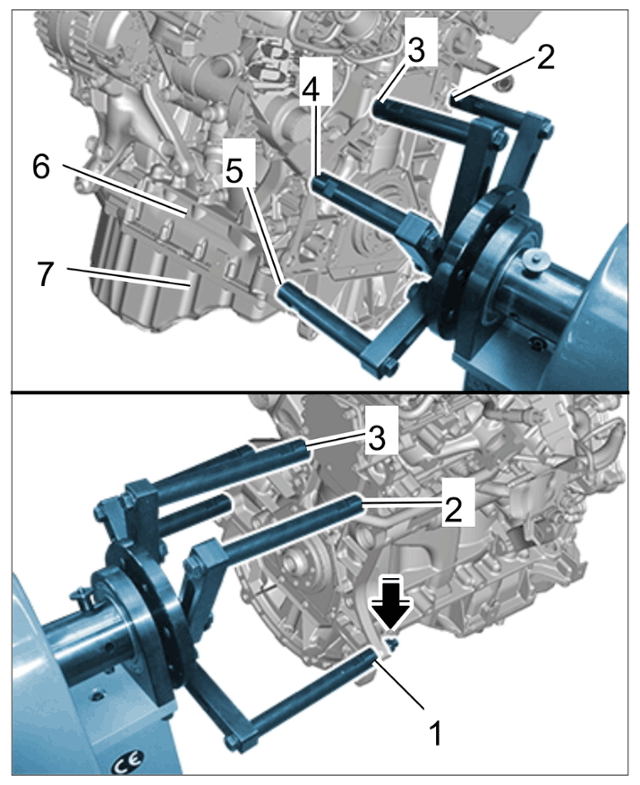

Engine on engine support
1. 2.1 Secure sleeve -1- using a nut and washer -Arrow- .
2. 2.2 Secure sleeves -2 to 4- on the crankcase.
3. 2.3 Secure sleeve -5- at the oil guide housing (upper part of oil pan) -6- .
4. 2.4 Secure sleeves -1 to 5- on the universal mount with screws.
5. 2.5 Position engine using VAS 6100 - workshop crane on VAS 6095A - engine and gearbox support and secure it.

The present document was valid at the time of print. A later version may be available online.
