Removing Engine
- Risk of squashing or crushing
- → Secure components to prevent them from falling down.
- Escaping fuel in the engine compartment
- Fire in the engine compartment
- → Do not loosen hoses using sharp-edged tools.
- → Replace damaged fuel lines.
- Danger of chemical burns
- → Wear personal protective gear.
- → Ensure that there is good ventilation.
- → Avoid contact with caustic fluid.
- → If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.
- Risk of burns
- → Let hot components cool down.
- → Wear personal protective gear.
NOTIFICATION
Aggressive fluids
- Risk of damage to components and surfaces
- → Do not spill fluids.
- → In the event of contact, wash the component or surface with water.
- → Replace components that are already damaged.
NOTIFICATION
Opened refrigerant system for repairs.
- Moisture penetrated into the refrigerant system.
- Risk of contaminating the refrigerant circuit.
- Risk of saturation and irreparable damage to desiccator.
- Irreparable damage to the desiccator can damage the compressor and evaporator.
- → The desiccator must be replaced if the air humidity is high and if the refrigerant circuit is left open for a long time.
Information
- Open connections and lines must be closed off using suitable stoppers or caps.
Information
The pictures shown in this document may differ from the original.

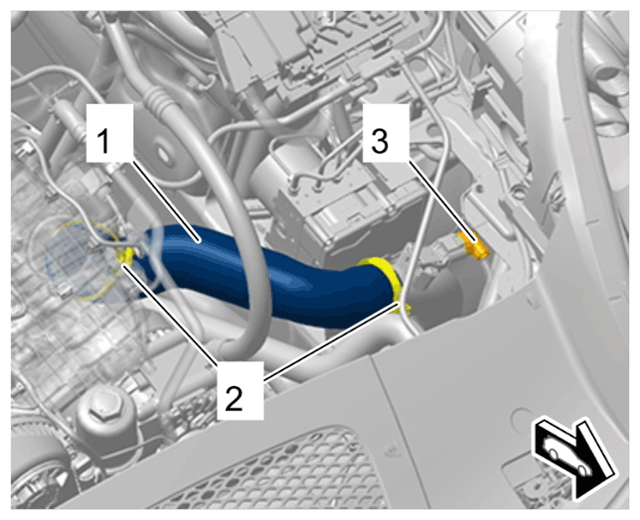

- Remove pressure hose -1-
.

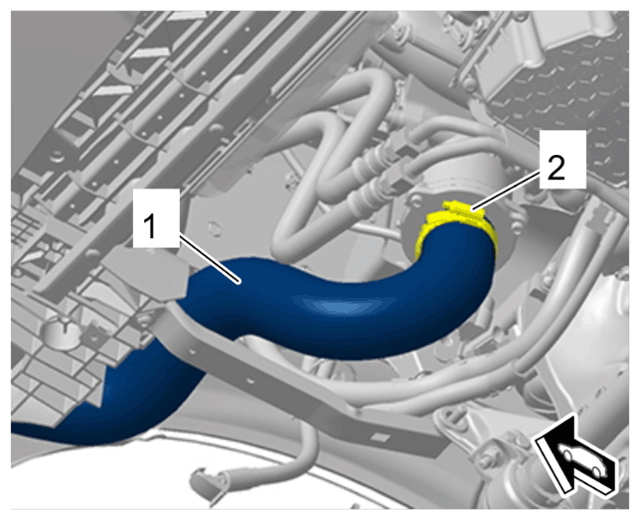

Pressure hose on throttle valve
- 1.1 Loosen screw-type clamps -2-
- 1.2 Remove pressure hose -1- with screw-type clamps -2- .
- 1.3 Release and disconnect electric plug connection -3- .
- Disconnect pressure hose -1-
.

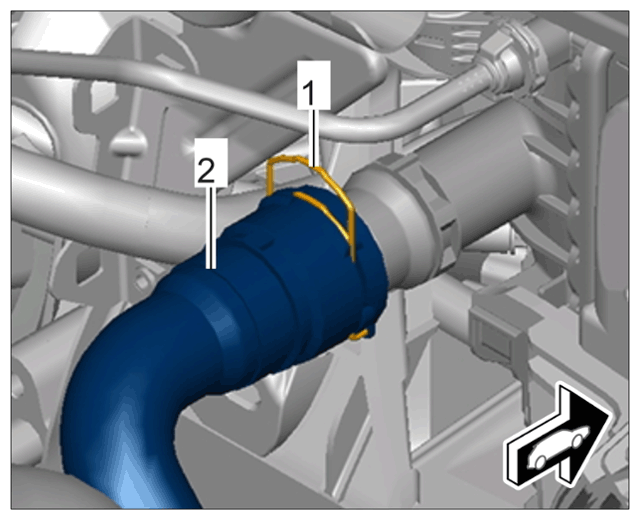

Pressure hose on turbocharger
- 2.1 Loosen screw-type clamp -2- .
- 2.2 Pull pressure hose -1- off the turbocharger.
- Disconnect upper coolant line -2-
from the radiator.
Upper coolant line on radiator
- 3.1
Lift up retaining clip -1-
and pull upper coolant line -2-
off the radiator.
- 3.1.1 Soak up any emerging coolant using suitable aids.
- 3.1.2 Close off connection openings using suitable stoppers.
- 3.1
Lift up retaining clip -1-
and pull upper coolant line -2-
off the radiator.

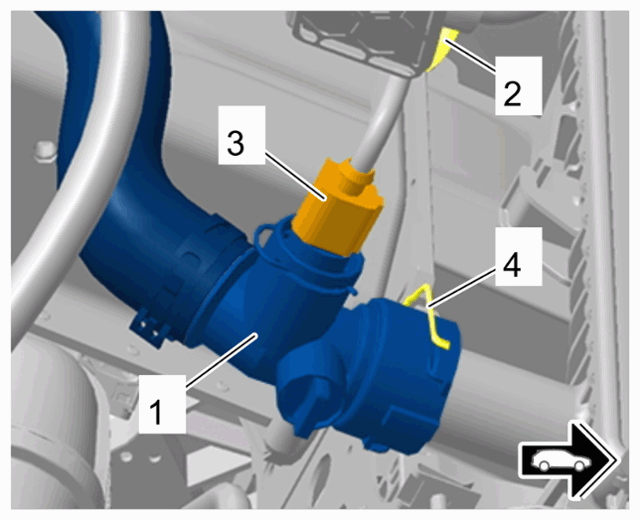

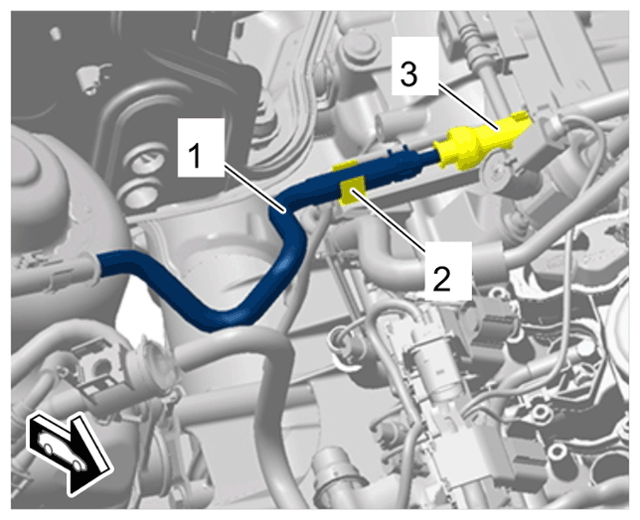

- Disconnect lower coolant line -1-
from the radiator.
Lower coolant line on radiator
- 4.1 Unclip clip -2- .
- 4.2 Release and disconnect electric plug connection -3- .
- 4.3
Lift up retaining clip -4-
and pull lower coolant line -1-
off the radiator.
- 4.3.1 Soak up any emerging coolant using suitable aids.
- 4.3.2 Close off connection openings using suitable stoppers.
- Detach heat shields from coolant lines.
Heat shield on coolant line
- 5.1 Open and remove heat shield -1- .
- 5.2 Open heat shield -2- and leave it on the coolant line.

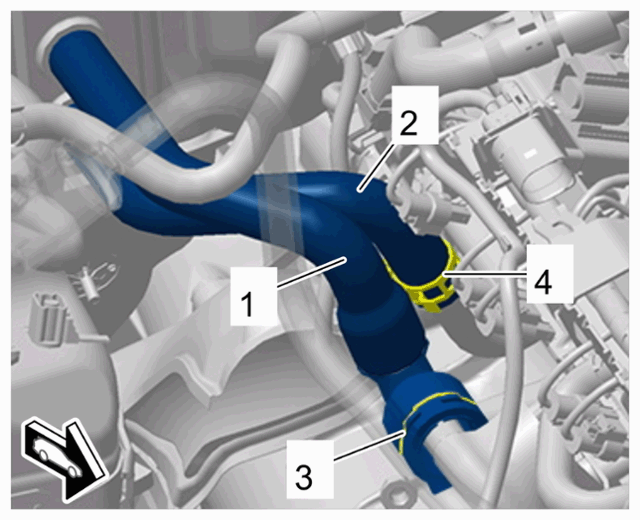

- Disconnect coolant lines -1 and 2-
from the engine.

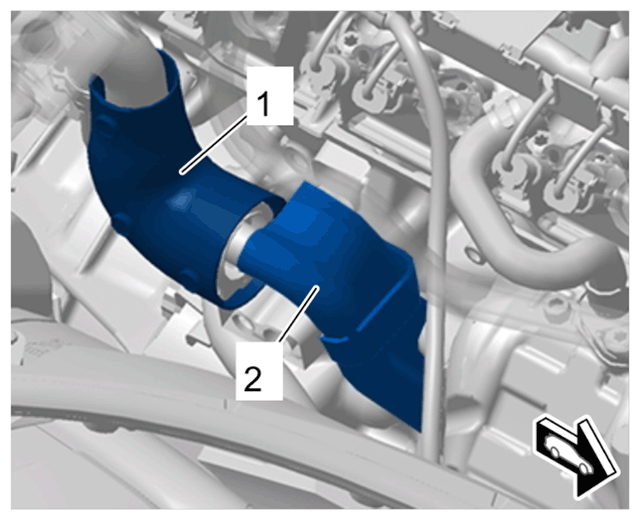

Coolant lines on engine
- 6.1
Lift up retaining clip -3-
and pull off coolant line -1-
.
- 6.1.1 Soak up any emerging coolant using suitable aids.
- 6.1.2 Close off connection openings using suitable stoppers.
- 6.2
Loosen spring band clamp -4-
using
VAS 6890 - spring band clamp pliers
and disconnect coolant line -2-
.
- 6.2.1 Soak up any emerging coolant using suitable aids.
- 6.2.2 Close off connection openings using suitable stoppers.
- 6.3 Move coolant lines -1 and 2- towards the body and secure with tie-wraps.
WARNING: Highly inflammable or explosive materials- Danger of fire or explosion
- → Avoid contact with hot parts or sources of ignition.
- → Use suction to remove ignitable vapours.
- → Attach warning sign in a clearly visible position.
- → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
- → Secure collection containers/vessels to prevent them from tipping over.
WARNING: Hot fuel and hot fuel lines.- Danger of scalding
- → Allow the fuel to cool down before opening line connections.
- → Wear protective gloves.
- → Wear protective goggles.
- 6.1
Lift up retaining clip -3-
and pull off coolant line -1-
.

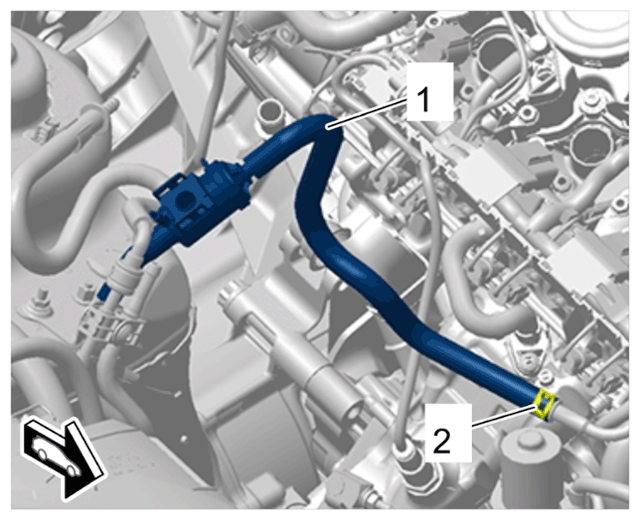

- Disconnect supply line -1-
from the engine.
Supply line
- 7.1 Check sealing rings on the plug-in coupling for damage and leaks and replace the supply line if necessary.
- 7.2 Disengage supply line -1- from bracket -2- .
- 7.3
Release and disconnect quick connector -3-
.
- 7.3.1 Close off connection openings using suitable stoppers.
- 7.4 Move supply line -1- towards the body and secure with tie-wraps.
- Disconnect active carbon filter line -1-
from the engine.
Active carbon filter line
- 8.1 Loosen spring band clamp -2- using VAS 6890 - spring band clamps pliers.
- 8.2 Pull off active carbon filter line -1- and move it towards the body.

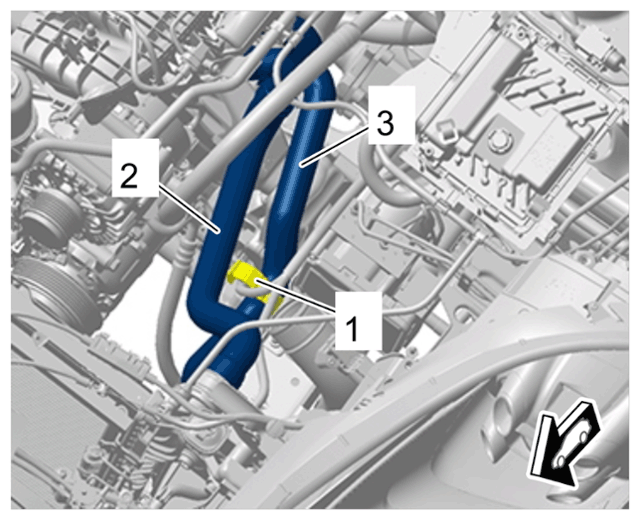

- Open clip -1-
move coolant hoses -2 and 3-
upwards and secure them to the engine with a tie-wrap.
Coolant hoses for radiator

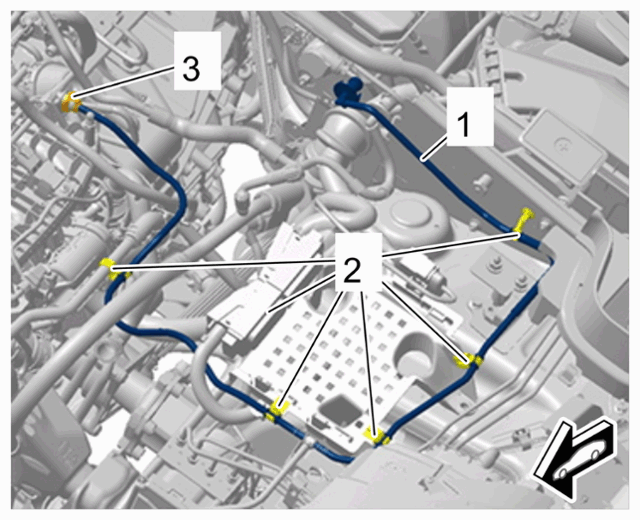

- Expose wiring harness (section: front left of engine compartment) -1-
.
Wiring harness (section: front left of engine compartment)
- 10.1 Release and disconnect electric plug connections -2- .
- 10.2 Unclip clips -3- .
- 10.3 Guide wiring harness -1- up towards the DME control unit.

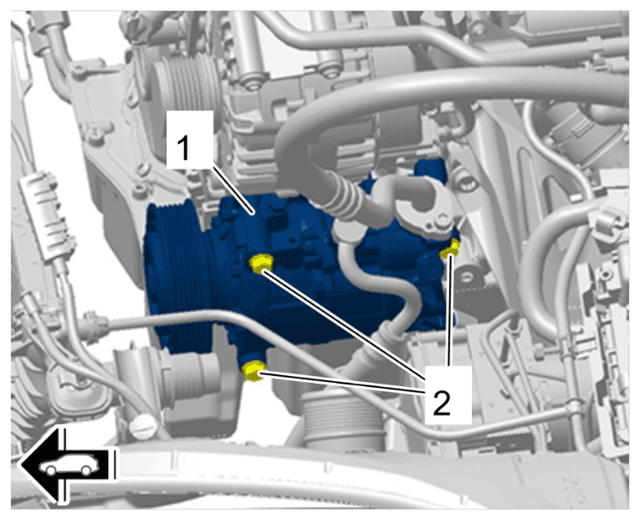

- Disconnect air-conditioning compressor -1-
from the engine.
Air-conditioning compressor
- 11.1 Unscrew screws -2- .
- 11.2 Secure air-conditioning compressor -1- to the longitudinal member using tie-wraps for example.

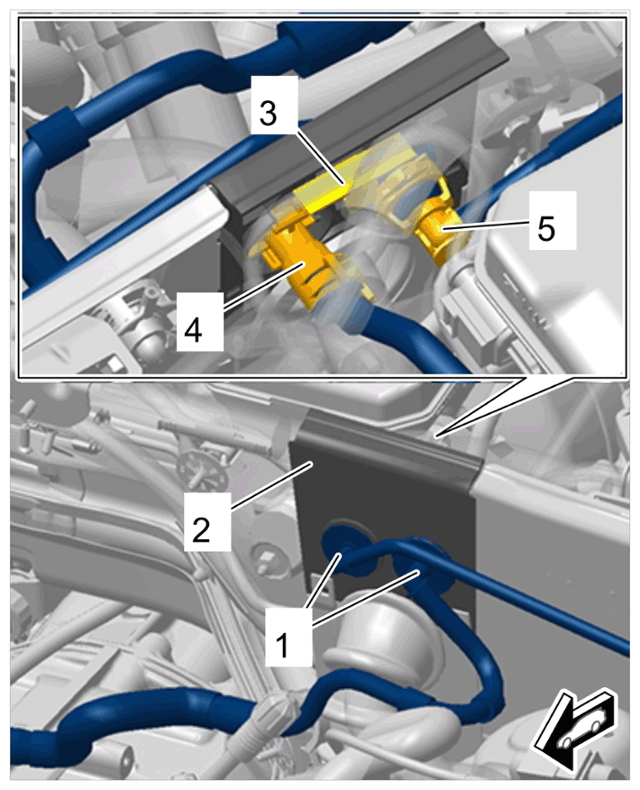

- Disconnect vacuum lines -1-
from plastic bracket -2-
.
Vacuum lines on plastic bracket
- 12.1 Unclip clip -3- .
- 12.2 Release quick connectors -4 and 5- and disconnect vacuum lines.
- 12.3 Unclip vacuum lines -1- from plastic bracket -2- and remove plastic bracket -2- .
- Disconnect vacuum line -1-
from the engine.
Vacuum line on engine
- 13.1 Unclip vacuum line -1- from brackets -2- .
- 13.2 Release and disconnect quick connector -3- .

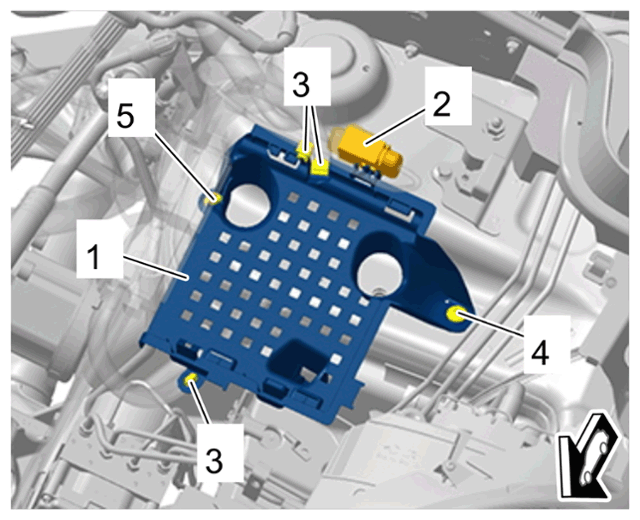

- Remove DME control unit holder -1-
.
DME control unit holder
- 14.1 Disconnect electric plug connection -2- from DME control unit holder.
- 14.2 Unclip clips -3- .
- 14.3 Unscrew screw -4- and screw off nut -5- .
- 14.4 Remove DME control unit holder -1- .
- Disconnect engine wire harness -1-
next to the dome.
Engine wire harness next to left dome
- 15.1 Unclip clip -2- .

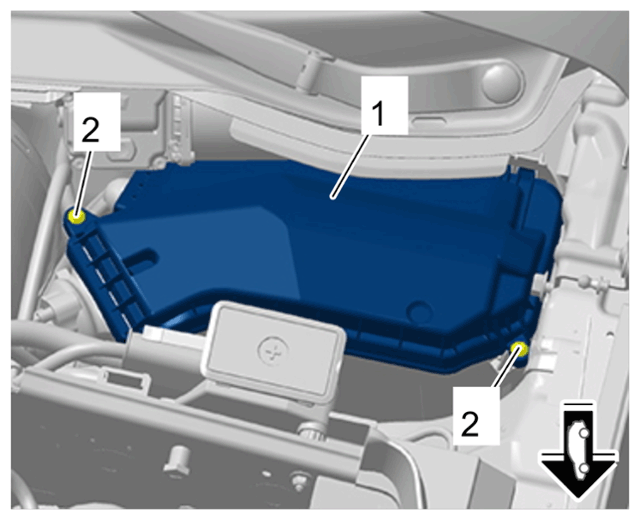

- Remove fuse box cover -1-
.
Fuse box cover
- 16.1 Unscrew screws -2- and remove fuse box cover -1- .

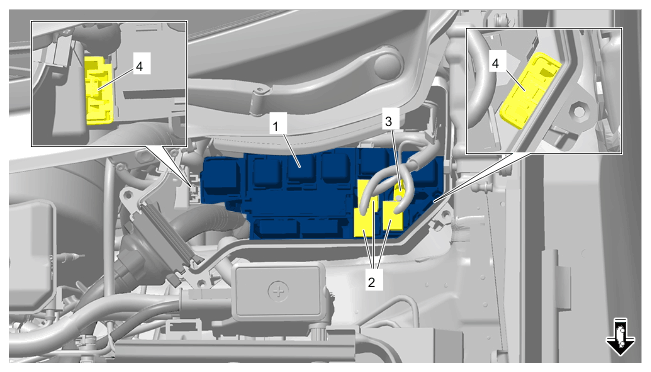

- Disconnect relay carrier -1-
from fuse box.
Relay carrier
- 17.1 Release and disconnect electric plug connections -2- .
- 17.2 Unscrew nut -3- .
- 17.3 Press locking lugs -4- and remove relay carrier -1- by pulling it upwards.

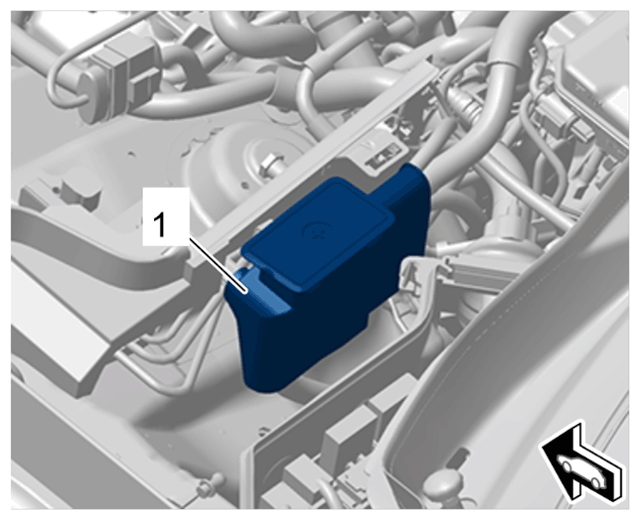

- Remove B+ cover -1-
.
B+ cover
- Disconnect B+ lines -1-
next to the fuse box.
B+ lines next to fuse box
- 19.1 Unscrew nuts -2 and 3- .
- 19.2 Disconnect B+ lines -1- from the distributor.

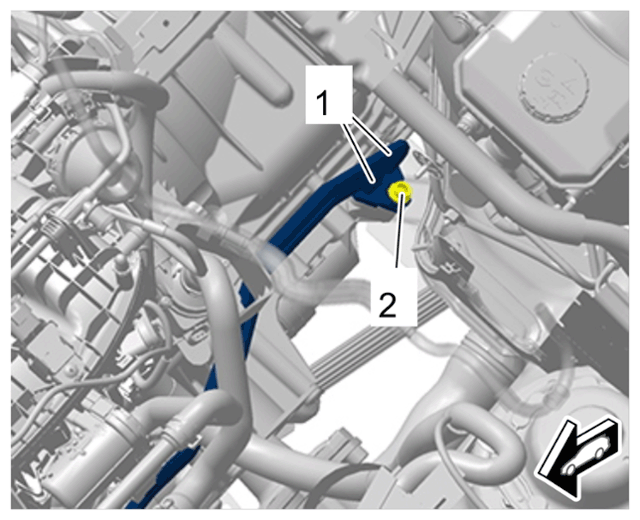

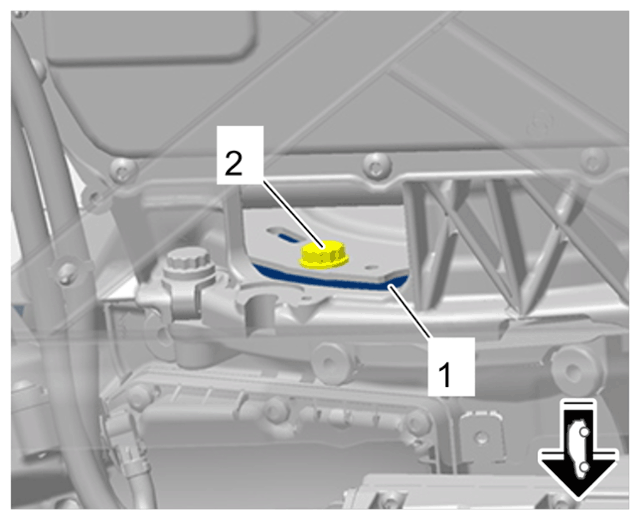

- Disconnect ground lines -1-
next to the fuse box.
Ground lines next to fuse box
- 20.1 Unscrew nut -2- .
- 20.2 Unclip ground lines -1- from bracket -3- .

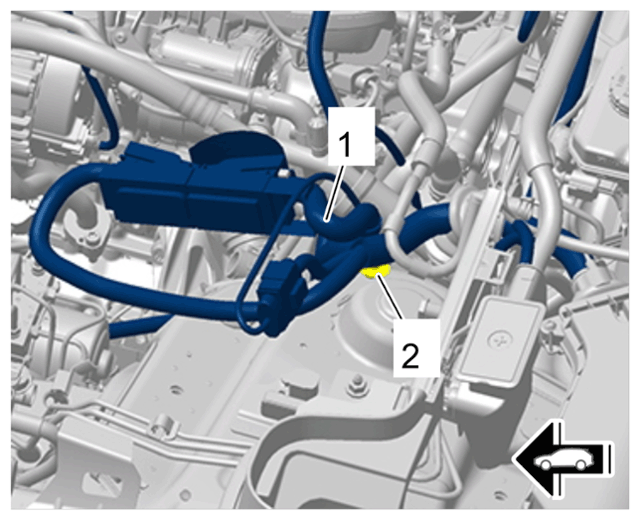

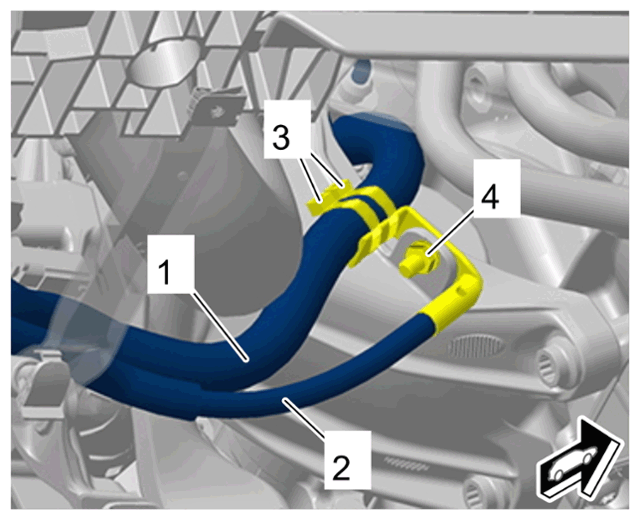

- Disconnect electric line for right engine mount -1-
.
Electric plug connection for right engine mount
- 21.1 Release and disconnect electric plug connection -2- .
- 21.2 Unnlin clips -3- .
- 21.3 Guide electric line for right engine mount -1- towards the plenum panel.
- Disconnect electric line for right plenum panel -1-
.
Electric line for right plenum panel
- 22.1 Unclip clips -2- .
- 22.2 Release and disconnect electric plug connection -3- .
- 22.3 Guide electric line for right plenum panel -1- towards the centre plenum panel.

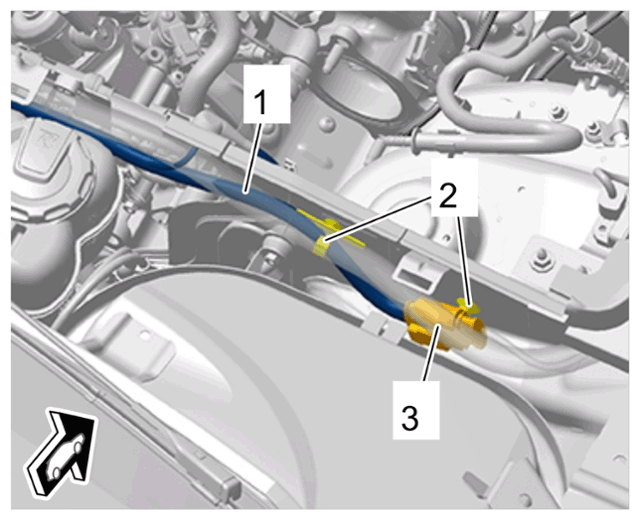

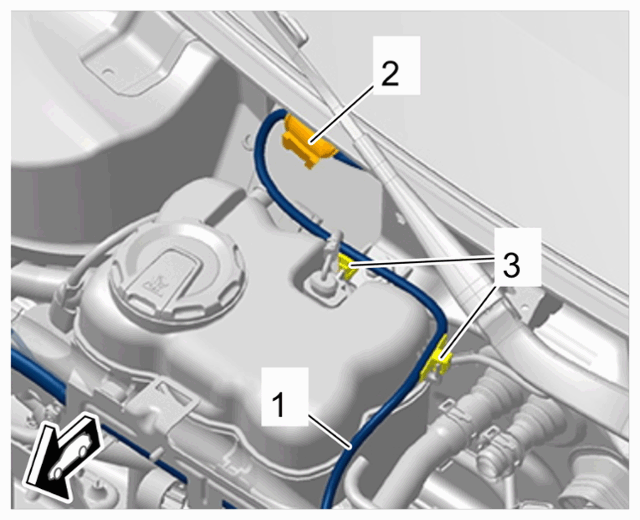

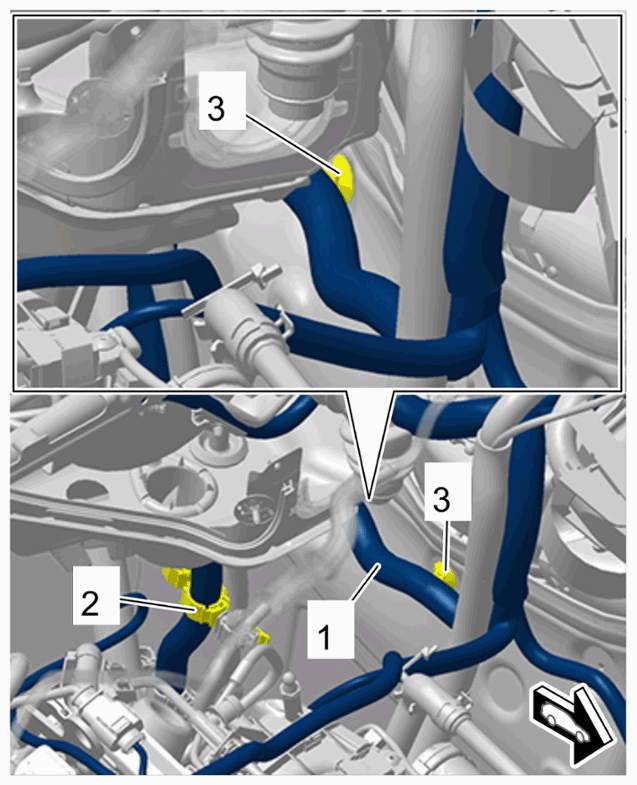

- Disconnect electric line -1-
from the coolant reservoir.
Electric line at coolant reservoir
- 23.1 Release and disconnect electric plug connection -2- .
- 23.2 Unclip clips -3- .

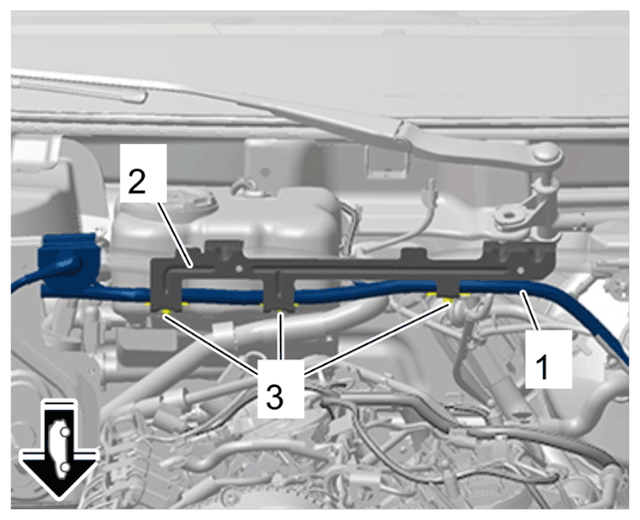

- Disconnect electric wire harness for engine -1-
from bracket -2-
.
Electric wire harness for engine
- 24.1 Unclip clips -3- .
- 24.2 Guide electric wire harness for engine -1- towards the left plenum panel.

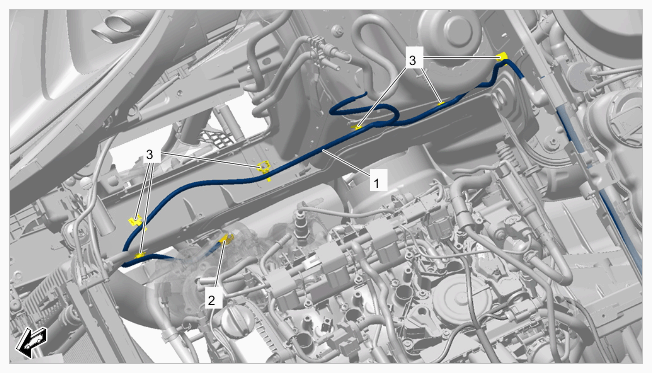

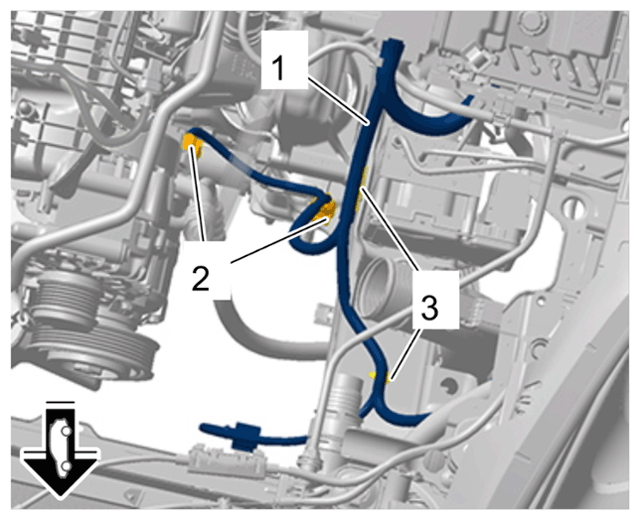

- Disconnect electric wire harness for transmission -1-
.
Electric wire harness for transmission
- 25.1 Release and disconnect electric plug connections -2 and 3- .
- 25.2 Unclip clips -4- .
- 25.3 Guide electric wire harness for transmission -1- towards the engine.

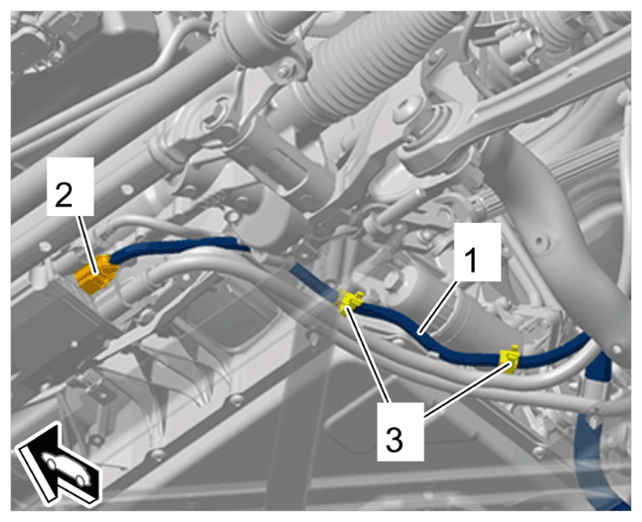

- Disconnect electric line for steering -1-
.
Electric line for steering
- 26.1 Release and disconnect electric plug connection -2- .
- 26.2 Open line bracket -3- .
- 26.3 Guide electric line for steering -1- towards the transmission.
- Disconnect engine wire harness -1-
from the body.
Mounting for engine wire harness on body
- 27.1 Open line bracket -2- and unclip clips -3- .
- 27.2 Carefully place all sections of the disconnected engine wire harness -1- including the relay carrier down on the engine.
- Open locking lug -1-
with a screwdriver, open housing cover -2-
on the right longitudinal member and remove it.
Housing cover

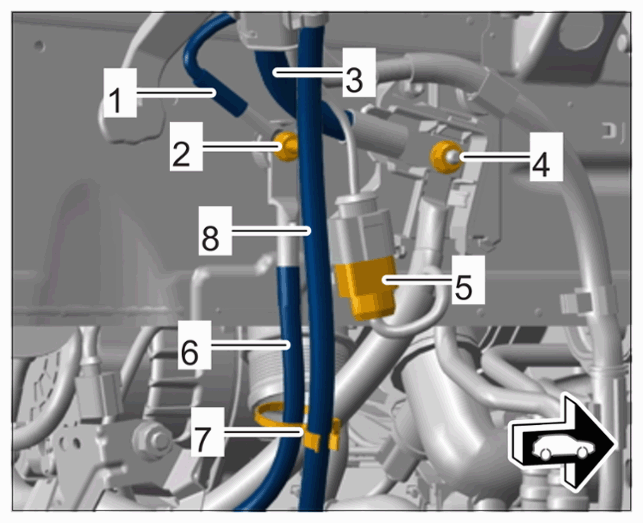

- Disconnect electric lines on the right longitudinal member.
Electric lines on right longitudinal member
- 29.1 Unclip clip -7- and move headlight vent line -8- aside.
- 29.2 Unscrew nut -2- and move ground lines -1 and 6- aside.
- 29.3 Release and disconnect electric plug connection -5- and remove it from the holder.
- 29.4 Unscrew nut -4- , remove ground line -3- and set it aside.

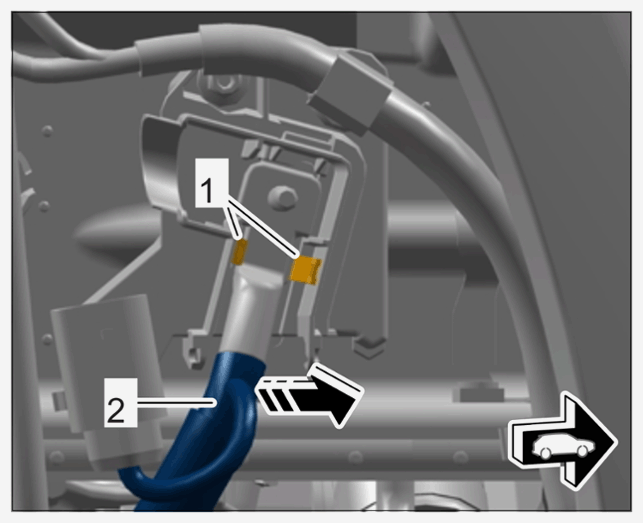

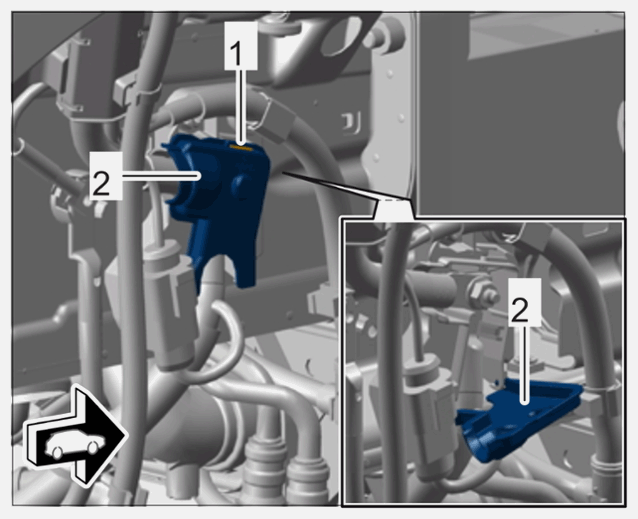

- Press in locking lugs -1-
, pull off ground line -2-
in -direction of arrow-
and guide it down towards the engine.
Ground line

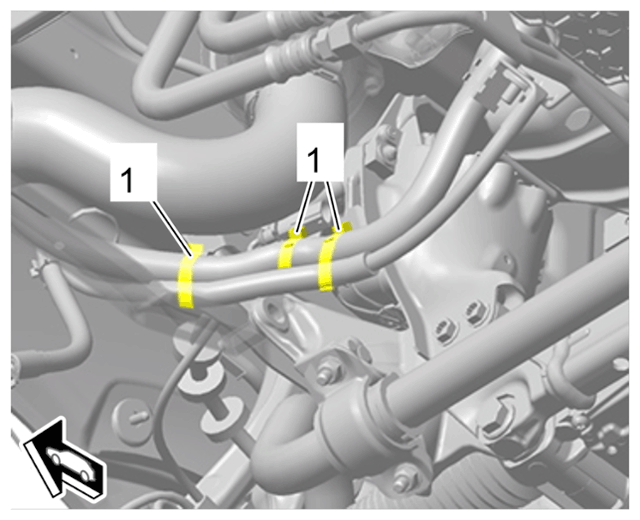

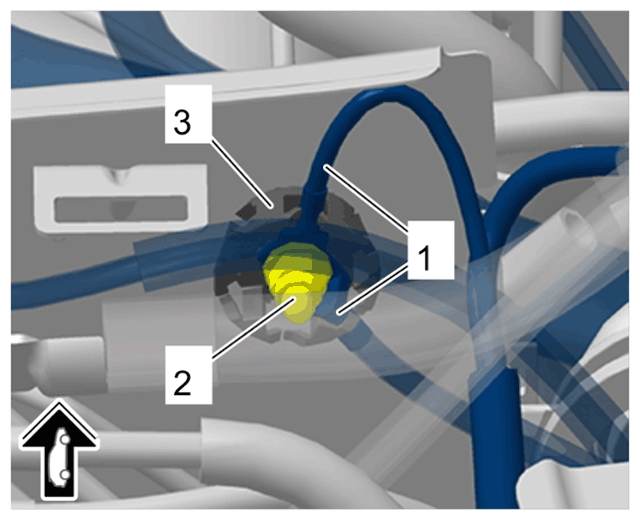

- Loosen tie-wrap -1-
.
Tie-wrap near right wheel housing
- Disconnect lines -1 and 2-
from engine mount bracket.
Lines on engine mount bracket
- 32.1 Loosen tie-wrap -3- .
- 32.2 Unscrew nut -4- .
- 32.3 Guide ground line -2- towards the right wheel housing.

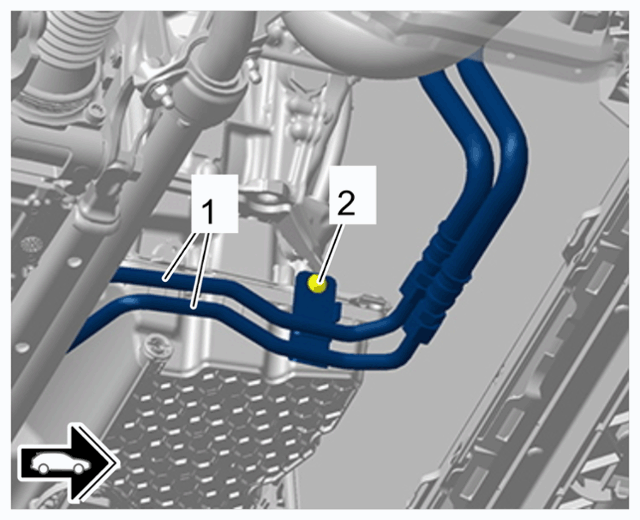

- Disconnect ATF lines -1-
from the engine.
ATF lines on engine
- 33.1 Unscrew screw -2- .

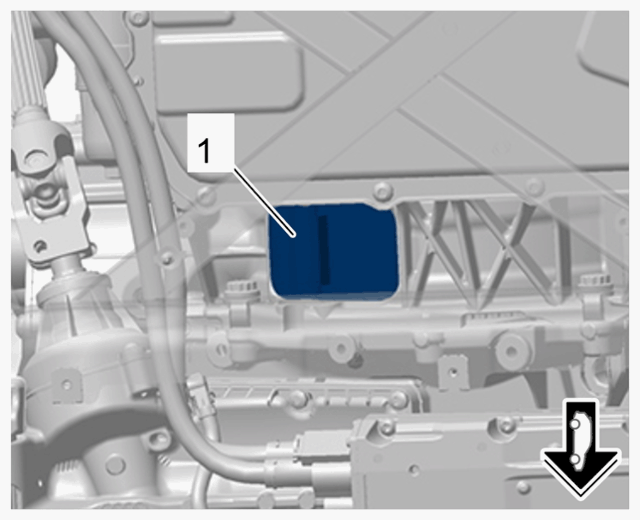

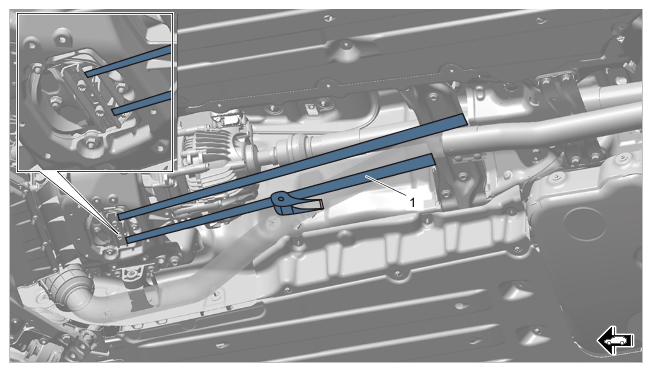

- Unclip cover -1-
.
Cover on underside of transmission
Information
You will need a second mechanic to help you with this step.
- Loosen flywheel -1-
from the drive plate.
Flywheel on drive plate
- 35.1 Unscrew screw -2- and get another mechanic to counter at the crankshaft pulley at the same time.
- 35.2 Turn the crankshaft a further 120° in direction of rotation of the engine.
- 35.3 Unscrew the two remaining screws -2- in the same way.
Information
- Before loosening the screws on the transmission support, the installation position of the transmission support must be marked using a water-resistant felt-tip pen, for example.
- The screws must only be loosened, but not unscrewed!

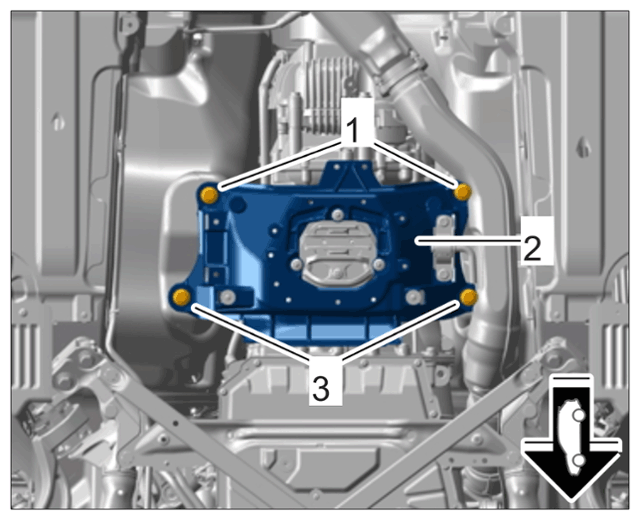

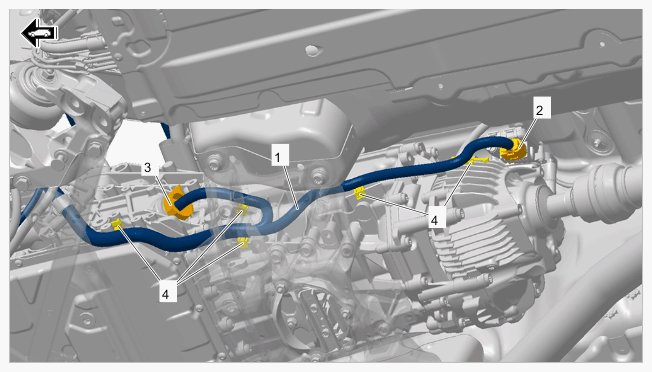

- Loosen screws on transmission support -1 and 3-
.
Transmission support
Information
The ATF line must be disconnected from the transmission in order to loosen the engine/transmission flange screws fully.
- Disconnect ATF line -1-
on the transmission.
ATF lines on transmission
- 37.1 Unscrew screw -2- .
- 37.2 Disconnect ATF line -1- from the transmission.
- 37.3 Close off connection openings using suitable stoppers.

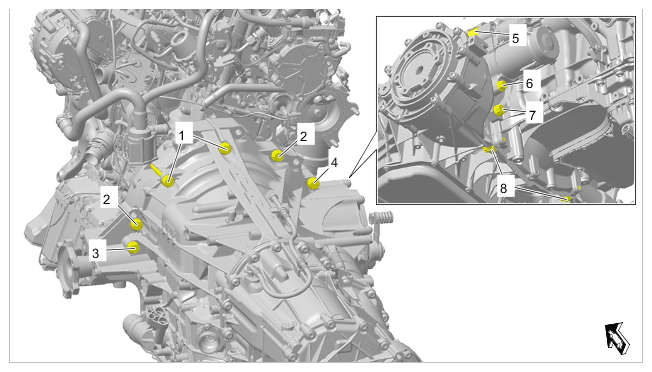

- Loosen flange screws securing engine to transmission.
Flange screws securing engine to transmission
- 38.1 Unscrew screws -1 to 4- and remove bush -5- .
- 38.2 Unscrew screws -6 to 8- .
- 38.3 Pull the starter off the transmission and leave it in installation position.
- Secure the transmission.
Tension strap on transmission
- 39.1 Secure tension strap -1- as shown on the transmission mount and tunnel transverse strut.
- Support transmission on the body using 10-222A - support bracket
.
- 40.1 Secure 10-222A/8 - adapter to 10-222A - support bracket with wing screws.
- 40.2 10-222A - Support bracket with 10-222A/8 - adapter must be positioned on the spring strut domes at the left and right.
- 40.3 Connect transmission and 10-222A/10 - spindle using 3147 - transmission mount and pre-tension 10-222A/10 - spindle slightly.
- 40.4 Pre-tension the tension strap.
- Use 2024A - lifting tackle to secure the engine to VAS 6100 - workshop crane .

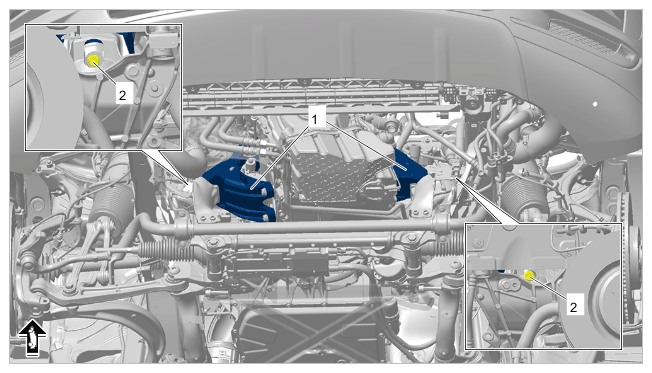

- Loosen engine from engine mount brackets -1-
.
Engine mounts on engine mount brackets
- 42.1 Unscrew screws -2- .
- 42.2 Raise the engine using VAS 6100 - workshop crane until the engine mounts -1- are free.
- 42.3 Turn 10-222A/10 - spindle of the 10-222A - support bracket further.
Information
Pay particular attention to the following points when guiding out the engine:
- The engine must have been secured properly to the engine crane.
- All hose and line connections between the engine, transmission, unit carrier and body must have been disconnected.
- The engine must have adequate clearance.
- Make sure not to damage any add-on parts when guiding out the engine.
Information
You will need a second mechanic to help you with this step.
- Disconnect engine from transmission and guide it up out of the engine compartment using VAS 6100 - workshop crane .
