Installing Engine
- Risk of squashing or crushing
- → Secure components to prevent them from falling down.
- Danger of fire or explosion
- → Avoid contact with hot parts or sources of ignition.
- → Use suction to remove ignitable vapours.
- → Attach warning sign in a clearly visible position.
- → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
- → Secure collection containers/vessels to prevent them from tipping over.
NOTIFICATION
Aggressive fluids
- Risk of damage to components and surfaces
- → Do not spill fluids.
- → In the event of contact, wash the component or surface with water.
- → Replace components that are already damaged.
Information
- O-rings on the cooling system must be replaced.
- Plug connections and coolant hoses must be cleaned before fitting.
- O-rings and coolant hoses must be coated with Kluber Plus Gel.
Information
- O-rings must be replaced.
- O-rings must be coated lightly with Kluber Syntheso Glep.
Information
- All stoppers must be removed before installing the relevant components.

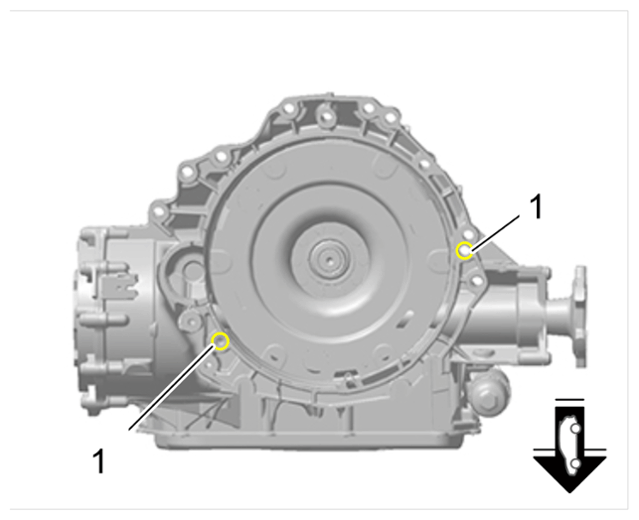

- Check that the intermediate plate on the joint flange is engaged and pushed onto the dowel sleeves -1-
Replace any missing dowel sleeves -1-
.
Dowel sleeves
Information
You will need a second mechanic to help you with this step.
- Mount engine on transmission.
Flange screws securing engine to transmission
- 2.1 Position the starter and fit screw -6- on the starter before fitting the engine.
- 2.2 Carefully guide the engine into the engine compartment using VAS 6100 - workshop crane and mount it on the transmission, making sure not to damage any add-on parts.
- 2.3 Fit screws -1 and 2- .

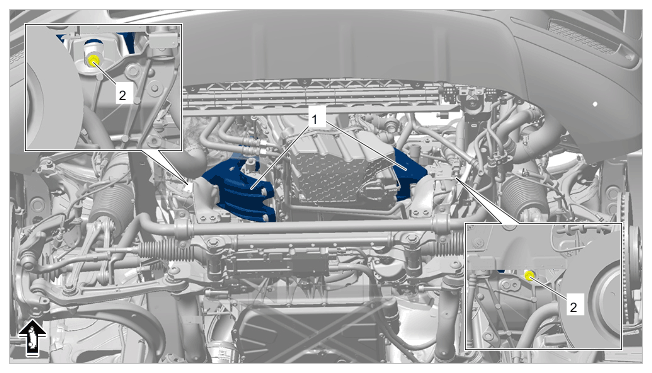

- Secure engine to engine mount brackets -1-
.
Engine mount
- 3.1 Replace screws -2- .
- 3.2 Relieve tension on 10-222A/10 - spindle of the 10-222A - support bracket .
- 3.3 Lower the VAS 6100 - workshop crane and set the engine and transmission down on the engine mount brackets -1- .
- 3.4 Remove VAS 6100 - workshop crane and 10-222A - support bracket .
- 3.5
Screw in and tighten new
screws -2-
.
Initial tightening 90 Nm

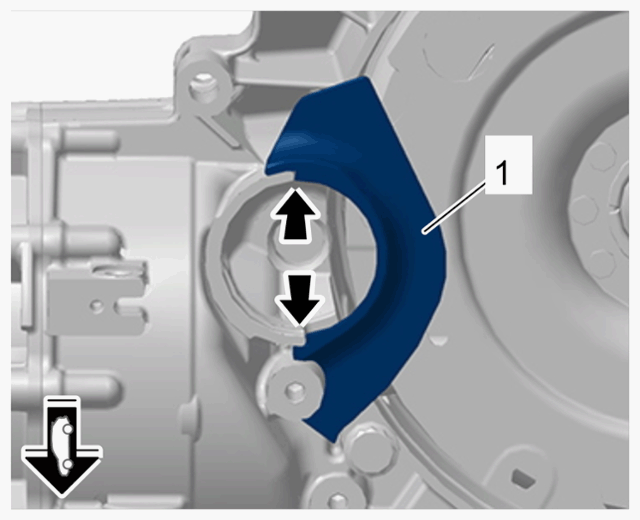

- Move locking element -1-
into installation position -Arrows-
.
Locking element

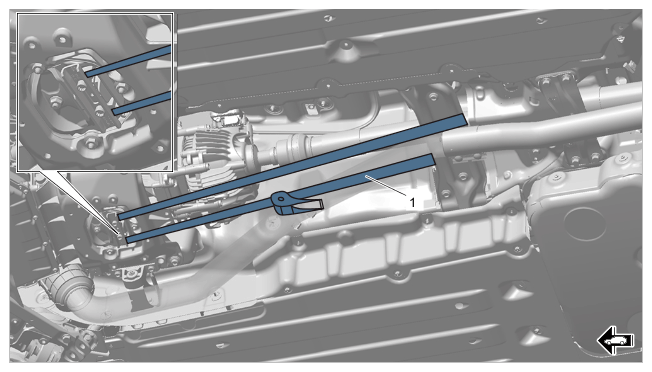

- Loosen and remove tension strap -1-
.
Tension strap on transmission
- Place starter in installation position.

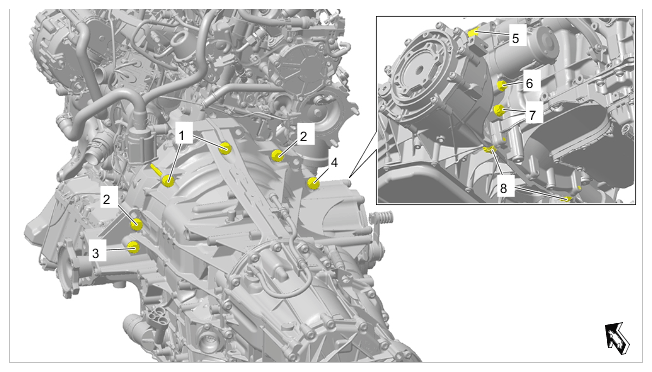

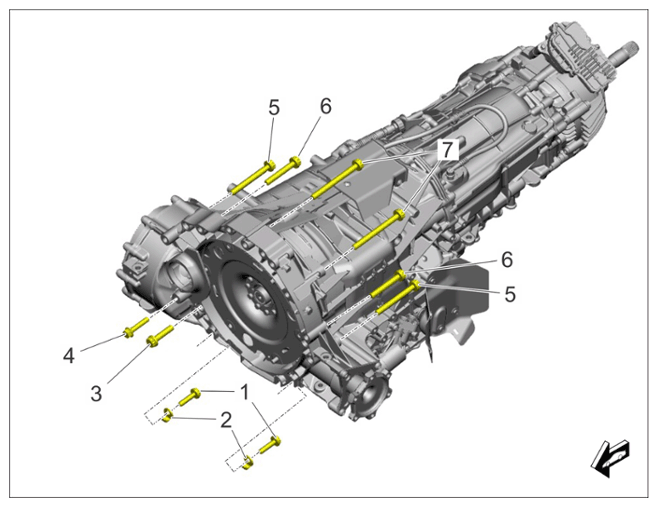

- Tighten flange screws on engine/transmission.
Double clutch transmission on R4 engine
- 7.1 Fit screws and tighten hand-tight.
- 7.2
Tighten screws -1-
.
Initial tightening 15 Nm (11 ftlb.)
Final tightening + 105°
- 7.3
Tighten screw -3-
.
Initial tightening 30 Nm (22 ftlb.)
Final tightening + 105°
- 7.4 Screw Tightening torque 65 Nm (48 ftlb.)
- 7.5
Tighten screws -5-
.
Initial tightening 30 Nm (22 ftlb.)
Final tightening + 105°
- 7.6
Tighten screws -6-
.
Initial tightening 30 Nm (22 ftlb.)
Final tightening + 105°
- 7.7
Tighten screws -7-
.
Initial tightening 30 Nm (22 ftlb.)
Final tightening + 105°
Information
You will need a second mechanic to help you with this step.

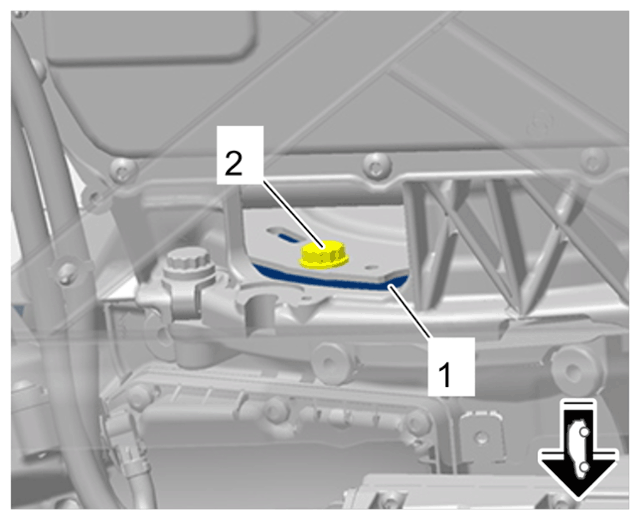

- Secure flywheel -1-
on drive plate.
Mounting for flywheel on drive plate
- 8.1 Fit screw -2- hand-tight.
- 8.2 Turn the crankshaft a further 120° in direction of rotation of the engine.
- 8.3 Fit the second screw -2- . hand-tight.
- 8.4 Turn the crankshaft a further 120° in direction of rotation of the engine.
- 8.5 Fit the third screw -2- .
- 8.6
Tighten all new
screws and get another mechanic to counter the crankshaft pulley at the same time.
Tightening torque 60 Nm (44.3 ftlb.)
- Clip in cover -1-
.

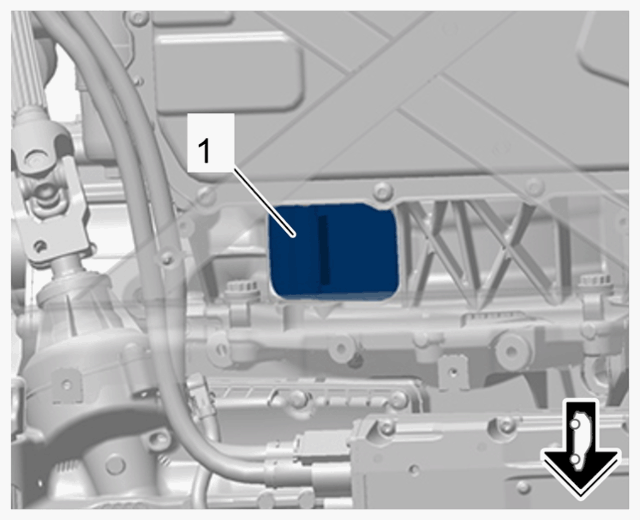

Cover on underside of transmission
- Secure transmission support -2-
.

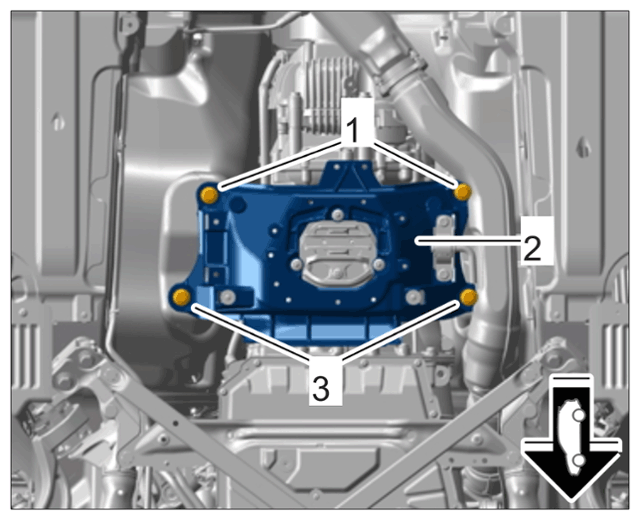

Transmission support
- 10.1 Position transmission support -2- . as marked before removal.
- 10.2
Screw in and tighten screws -1 and 3-
.
Tightening torque 20 Nm (15 ftlb.)
Final tightening + 90°

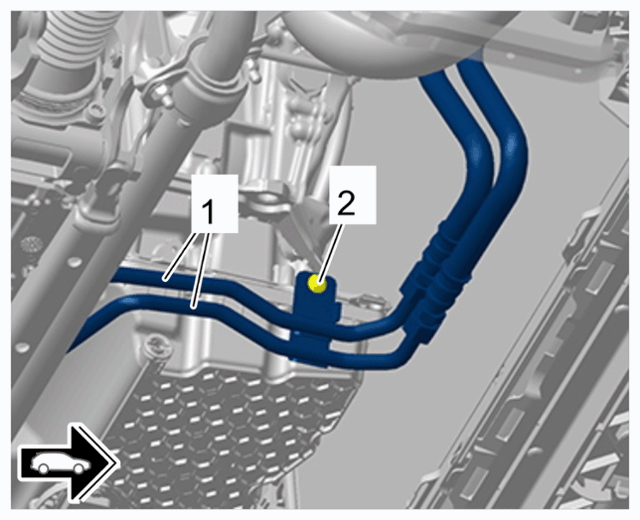

- Secure ATF line -1-
on transmission.
ATF lines on transmission
- 11.1 Move ATF line -1- . into installation position.
- 11.2
Screw in and tighten screw -2-
.
Tightening torque 20 Nm (15 ftlb.)
- Secure ATF lines -1-
to the engine.
ATF lines on engine
- 12.1
Screw in and tighten screw -2-
.
Tightening torque 8 Nm (6 ftlb.)
- 12.1
Screw in and tighten screw -2-
.
- Secure electric lines -1 and 3-
to the engine mount bracket.
Lines on engine mount bracket
- 13.1
Position electric line -2-
. and screw on and tighten nut -4-
.
Tightening torque 20 Nm (15 ftlb.)

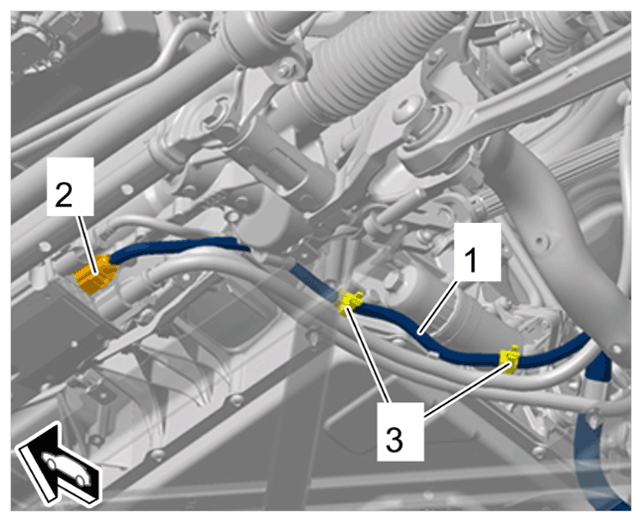

- 13.2 Position electric line -1- . and secure with tie-wraps -3- .
- 13.1
Position electric line -2-
. and screw on and tighten nut -4-
.

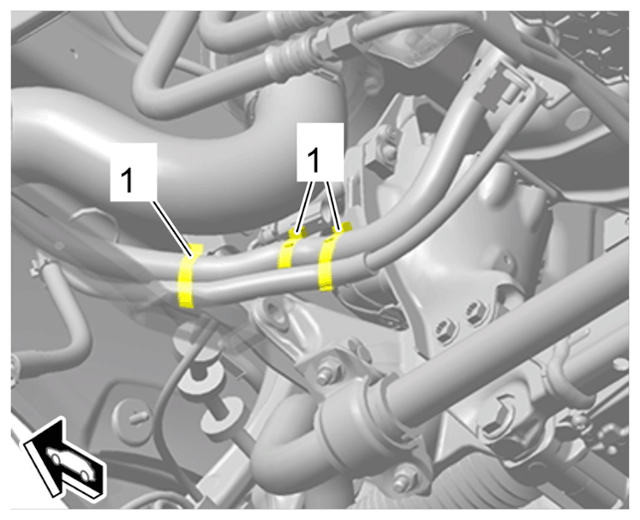

- Secure electric lines with a tie-wrap -1-
.
Tie-wrap near right wheel housing

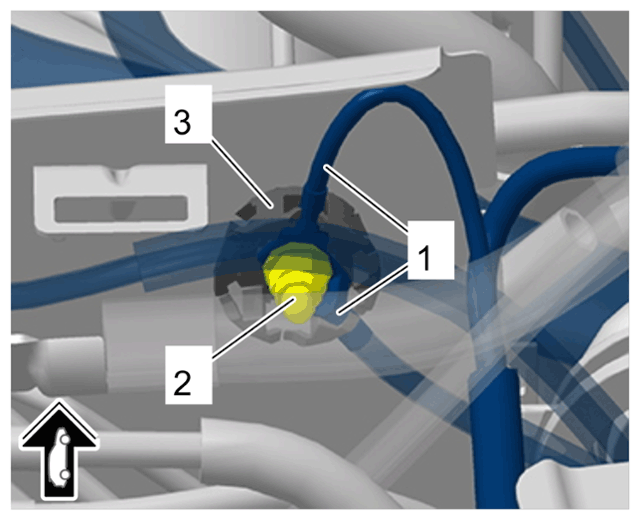

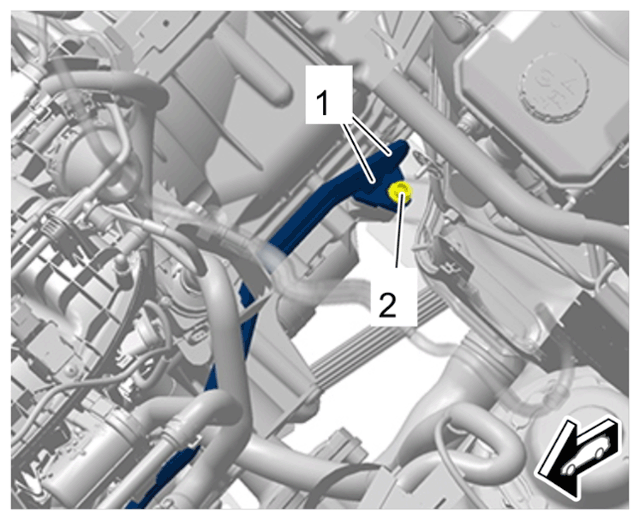

- Secure ground line -2-
. on the bracket in the opposite direction to -direction of arrow-
. Make sure that the locking lugs -1-
lock correctly.

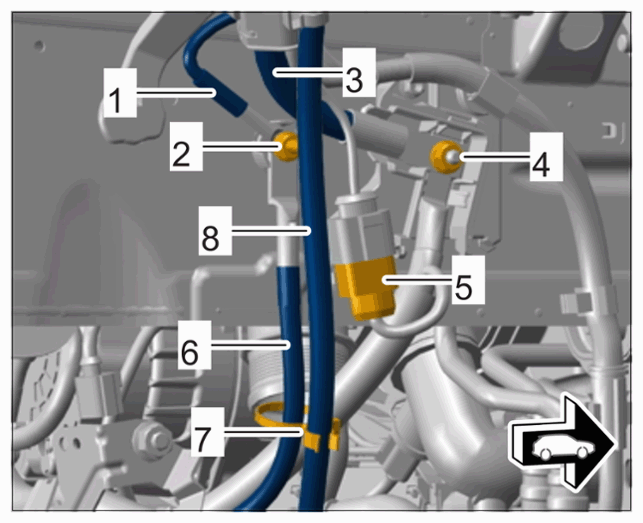

Ground line

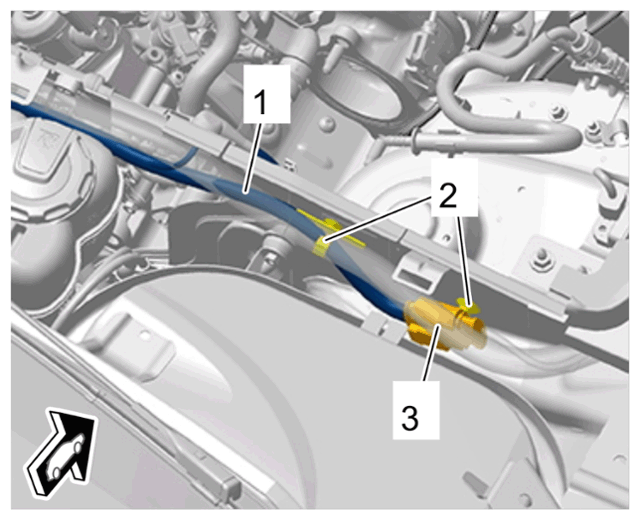

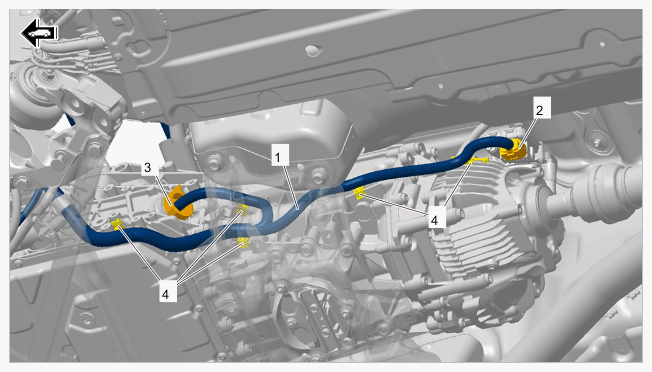

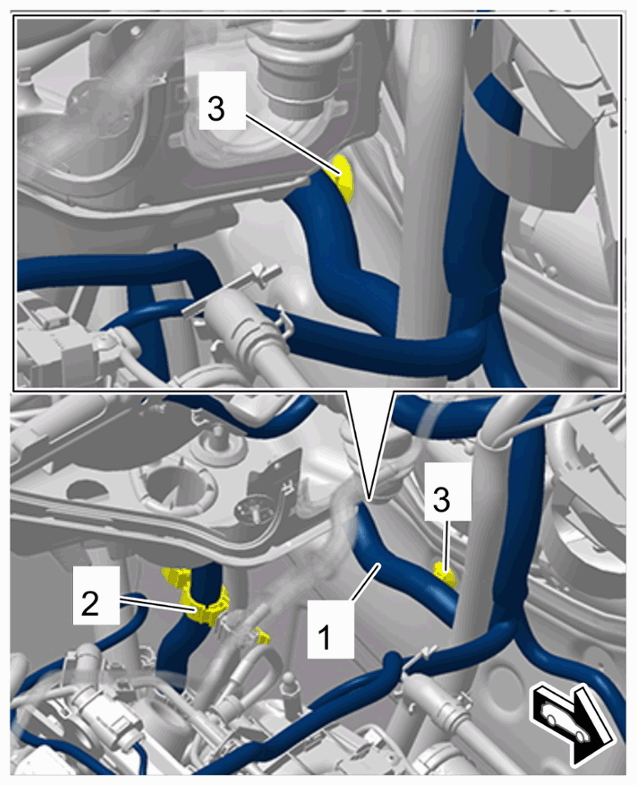

- Secure electric lines on the right longitudinal member.
Electric lines on right longitudinal member
- 16.1
Position ground line -3-
. and screw on and tighten nut -4-
.
Tightening torque 9 Nm (6.5 ftlb.)
- 16.2
Position ground lines -1 and 6-
and screw on and tighten nut -2-
.
Tightening torque 9 Nm (6.5 ftlb.)
- 16.3 Connect and lock electric plug connection -5- and secure it to the holder.
- 16.4 Secure clip -7- on the headlight vent line -8- .
- 16.1
Position ground line -3-
. and screw on and tighten nut -4-
.

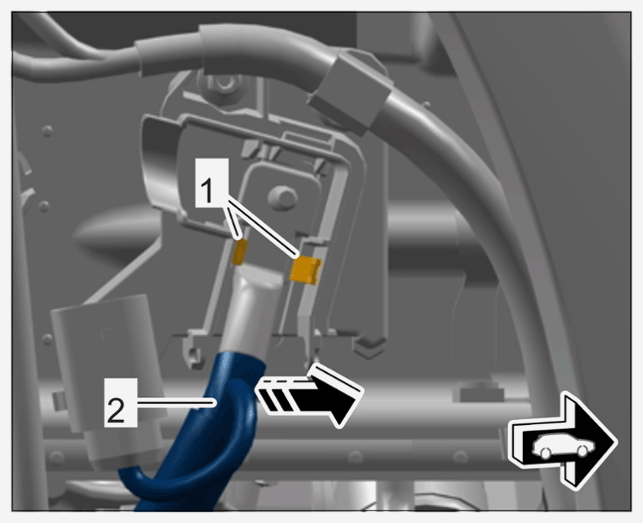

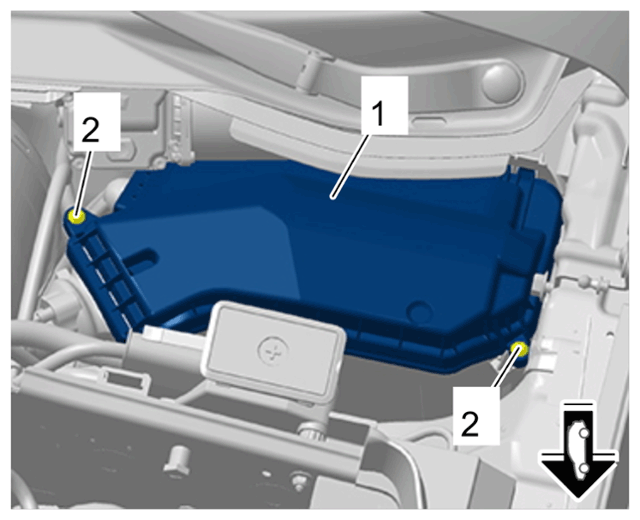

- Secure housing cover -2-
at the right longitudinal member. Make sure that the locking lug -1-
locks correctly.
Housing cover

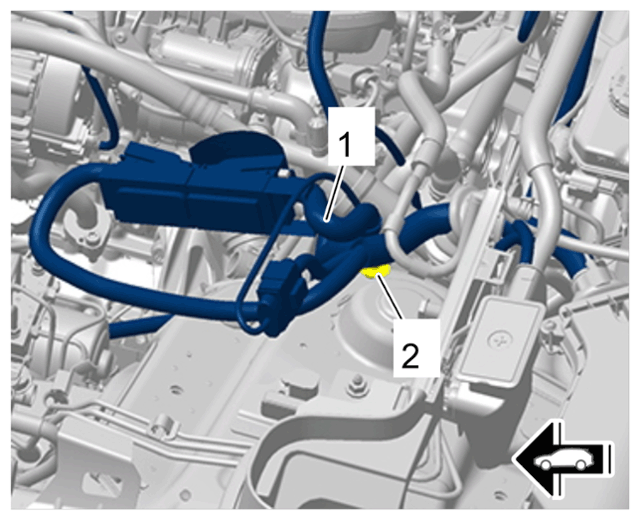

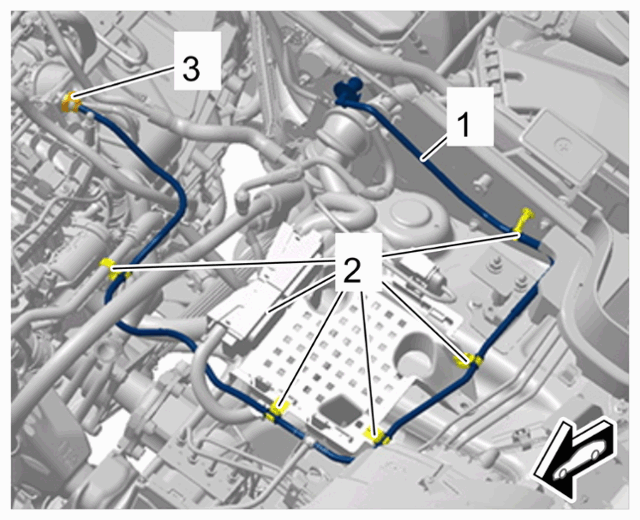

- Provisionally route engine wire harness -1-
.
Mounting for engine wire harness on body
- 18.1 Carefully remove all sections of the disconnected engine wire harness -1- including relay carrier from the engine and provisionally route them roughly.
- 18.2 Position engine wire harness -1- in line bracket -2- position and close it.
- 18.3 Clip in clips -3- .

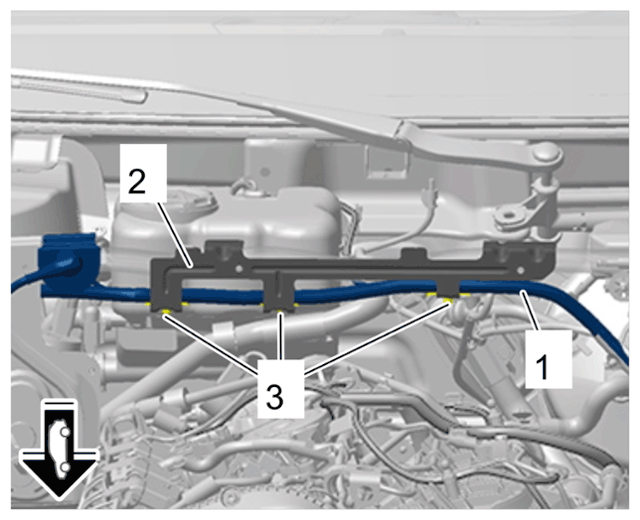

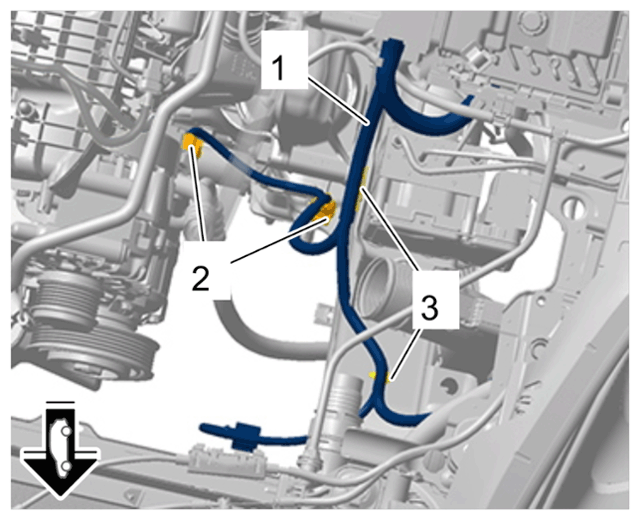

- Secure electric line for steering -1-
.
Electric line for steering
- 19.1 Connect and lock electric plug connection -2- .
- 19.2 Position electric line for steering -1- in line bracket -3- and close it.
- Secure electric wire harness for transmission -1-
.
Electric wire harness for transmission
- 20.1 Connect and lock electric plug connections -2 and 3- .
- 20.2 Clip in clips -4- .

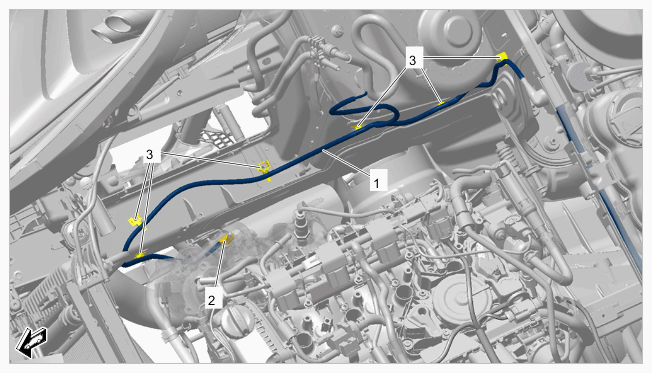

- Secure electric wire harness for engine -1-
to the bracket -2-
.
Electric wire harness for engine
- 21.1 Clip in clips -3-
- Secure electric line -1-
to coolant reservoir.

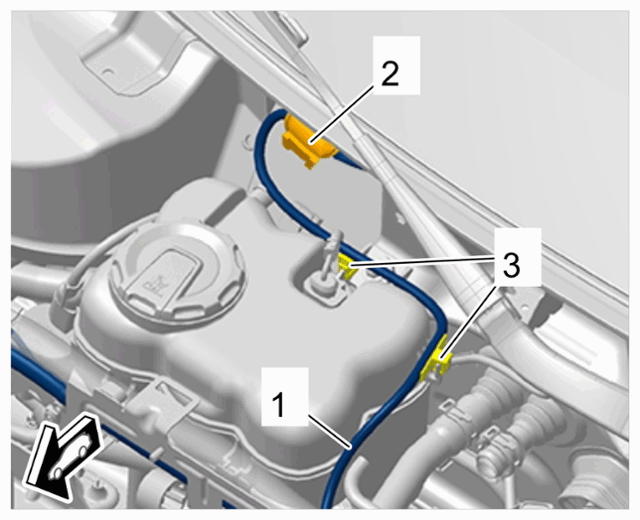

Electric plug connection on coolant reservoir
- 22.1 Connect and lock electric plug connection -2- .
- 22.2 Clip in clips -3- .
- Secure electric line for right plenum panel -1-
.
Electric line for right plenum panel
- 23.1 Connect and lock electric plug connection -3- .
- 23.2 Clip in clips -2- .

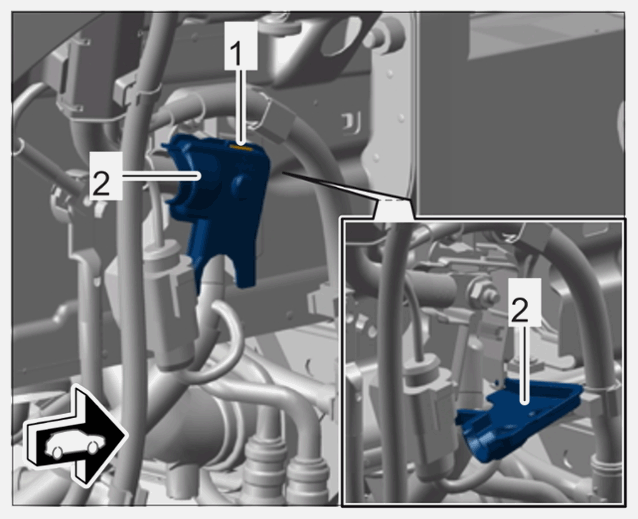

- Secure electric line for right engine mount -1-
.
Electric plug connection for right engine mount
- 24.1 Connect and lock electric plug connection -2- .
- 24.2 Clip in clips -3- .
- Secure ground lines -1-
next to the fuse box.
Ground lines next to fuse box
- 25.1 Clip ground lines -1- into holder -3- as shown.
- 25.2
Screw on and tighten nut -2-
.
Tightening torque 9 Nm (6.5 ftlb.)

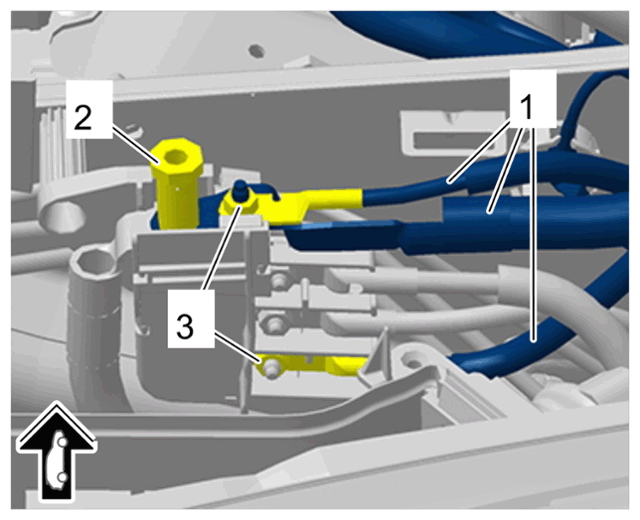

- Secure B+ lines -1-
next to the fuse box.
B+ lines next to fuse box
- 26.1 Position B+ lines -1- on the distributor.
- 26.2 Fit nuts -2 and 3- .
- 26.3
Tighten nut -2-
.
Tightening torque 16 Nm (12 ftlb.)
- 26.4
Tighten nut -3-
.
Tightening torque 7.5 Nm (5.5 ftlb.)
- Install B+ cover -1-
.

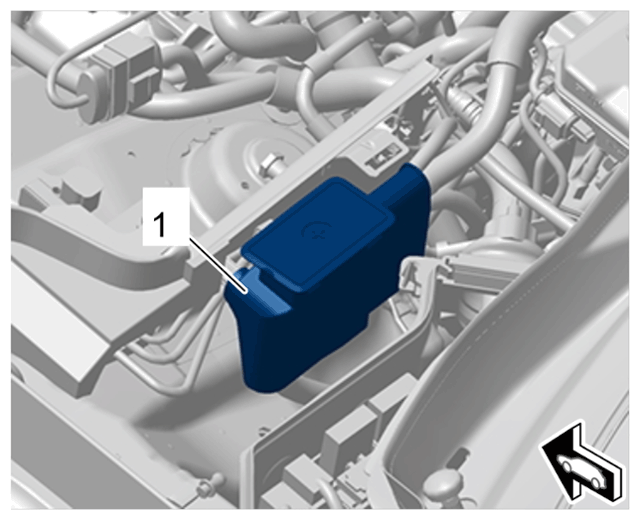

B+ cover
- Secure relay carrier -1-
to the fuse box.
Relay carrier

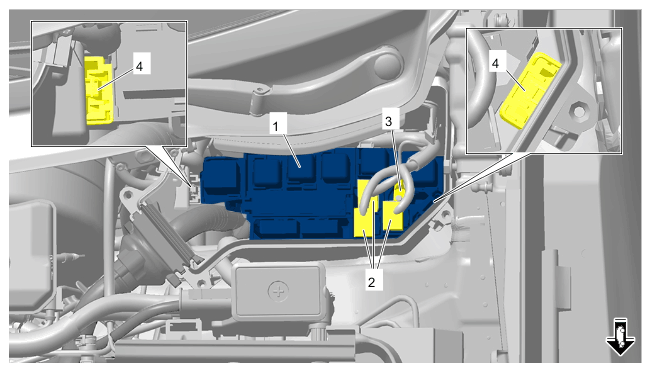

- 28.1 Clip relay carrier -1- into the fuse box. Make sure that the locking lugs -4- lock correctly.
- 28.2 Connect and lock electric plug connections -2- .
- 28.3
Screw on and tighten nut -3-
.
Tightening torque 9 Nm (6.5 ftlb.)
- Install fuse box cover -1-
.
Fuse box cover
- 29.1
Position fuse box cover -1-
and tighten screws -2-
.
Tightening torque 3 Nm (2 ftlb.)
- 29.1
Position fuse box cover -1-
and tighten screws -2-
.
- Secure engine wire harness -1-
next to the dome.
Engine wire harness next to left dome
- 30.1 Clip in clip -2-

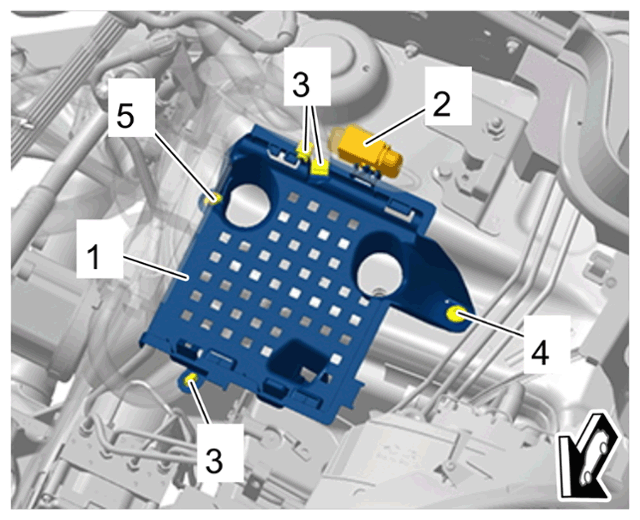

- Install DME control unit holder -1-
.
DME control unit holder
- 31.1 Position DME control unit holder -1- .
- 31.2 Clip in clips -3- .
- 31.3 Secure electric plug connection -2- to DME control unit holder.
- 31.4
Screw in and tighten screw -4-
.
Tightening torque 6 Nm (4.5 ftlb.)
- 31.5
Screw on and tighten nut -5-
.
Tightening torque 6 Nm (4.5 ftlb.)

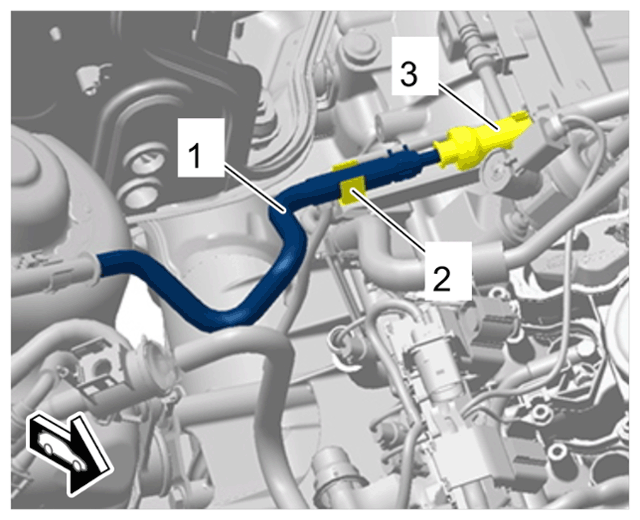

- Secure vacuum line -1-
to the engine.
Vacuum line on engine
- 32.1 Connect quick connector -3- until it engages securely.
- 32.2 Clip vacuum line -1- into the holder -2- .
- Secure vacuum lines -1-
to plastic bracket -2-
.
Vacuum lines on plastic bracket
- 33.1 Install plastic bracket -2- .
- 33.2 Clip vacuum lines -1- into plastic bracket -2- .
- 33.3 Connect quick connectors -4 and 5- until they engage securely.
- 33.4 Clip in clip -3- .

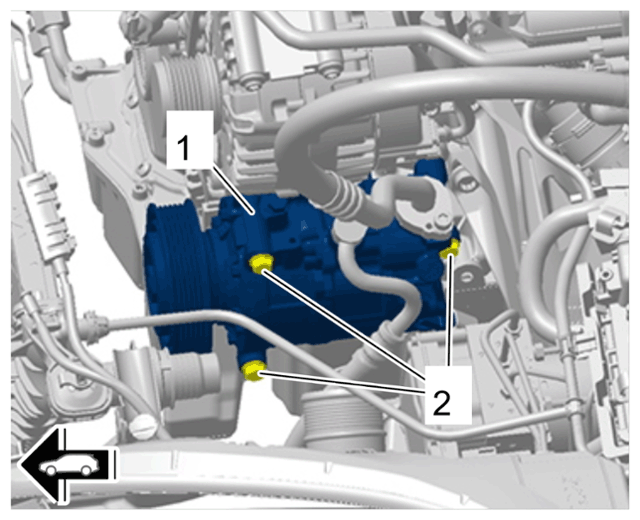

- Secure air-conditioning compressor -1-
to the engine.
Air-conditioning compressor
- 34.1 Move air-conditioning compressor -1- into installation position.
- 34.2
Screw in and tighten screws -2-
.
Tightening torque 25 Nm (19 ftlb.)
- Secure wiring harness (section: front left of engine compartment) -1-
.
Wiring harness (section: front left of engine compartment)
- 35.1 Clip in clips -3- .
- 35.2 Connect and lock electric plug connections -2- .

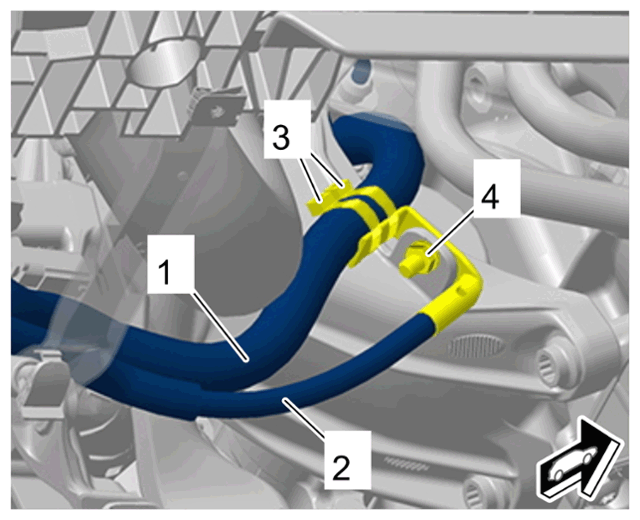

- Position coolant hoses -2 and 3-
in clip -1-
close it.
Coolant hoses for radiator
- Secure active carbon filter line -1-
to the engine.
Active carbon filter line

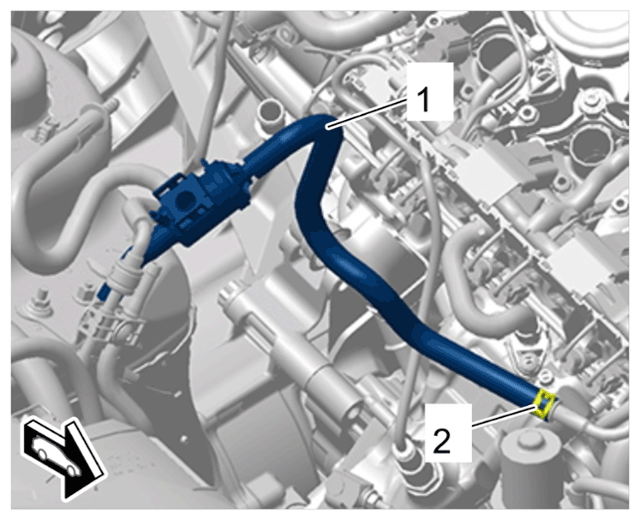

- 37.1 Push on active carbon filter line -1- and secure spring band clamp -2- using VAS 6890 - spring band clamp pliers .
WARNING: Damaged fuel lines- Escaping fuel in the engine compartment
- Fire in the engine compartment
- → Do not loosen hoses using sharp-edged tools.
- → Replace damaged fuel lines.
Supply line
- 38.1 Check sealing rings on the plug-in coupling for damage and leaks and replace the supply line if necessary.
- 38.2 Connect quick connector -3- .
- 38.3 Clip supply line -1- into bracket -2- .

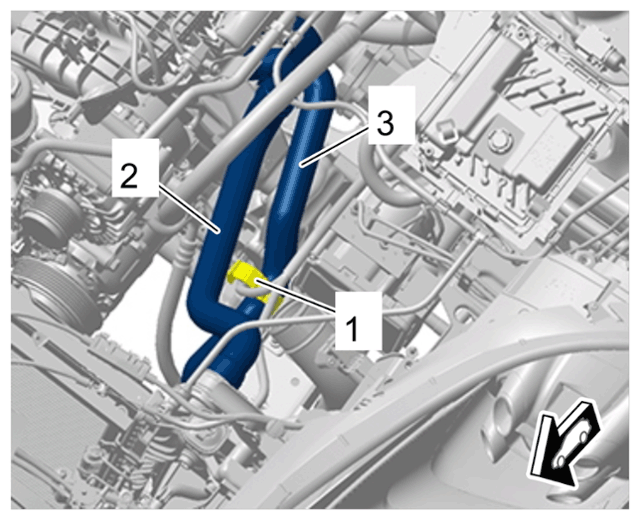

- Secure coolant lines -1 and 2-
to the engine.
Coolant lines on engine
- 39.1 Push on coolant line -1- and secure with a retaining clip -3- .
- 39.2 Push on coolant line -2- and secure spring band clamp -4- using VAS 6890 - spring band clamp pliers.
- Secure heat shields -1 and 2-
to the coolant lines.
Heat shield on coolant line
- 40.1 Close heat shield -2- .
- 40.2 Close heat shield -1- .
- Secure coolant line -1-
to the bottom of the radiator.

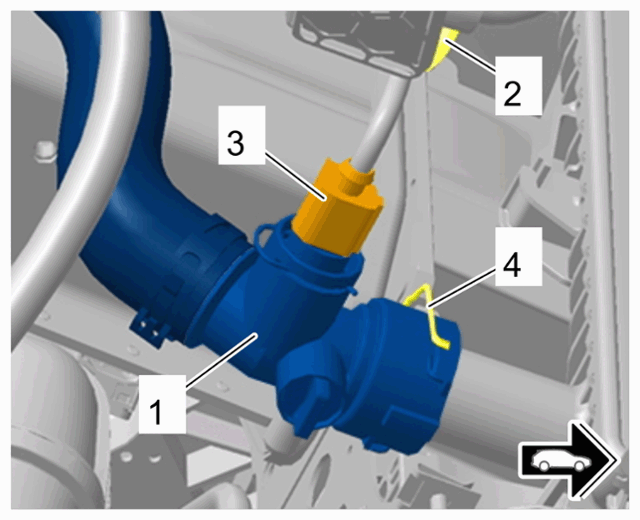

Coolant line at bottom of radiator

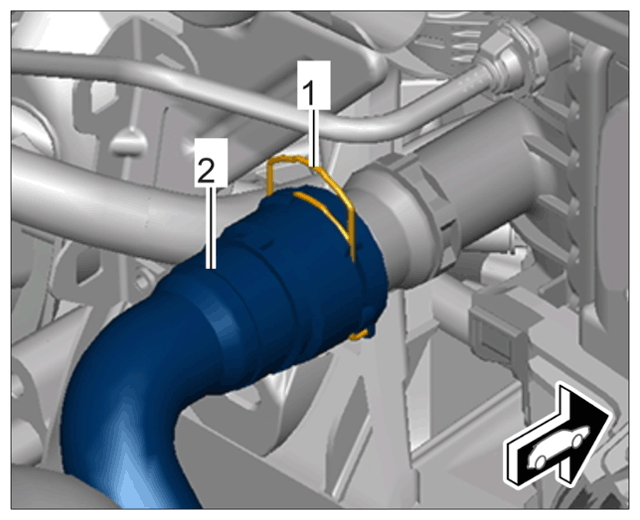

- 41.1 Push on coolant line -1- at the bottom of the radiator and secure with a retaining clip -4- .
- 41.2 Clip in clip -2- .
- 41.3 Connect electric plug connection -3- and lock it.

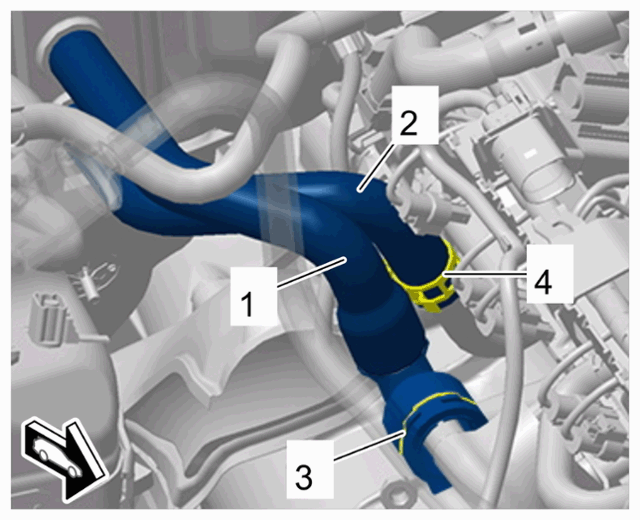

- Secure coolant line -2-
to the top of the radiator.
Coolant line at top of radiator

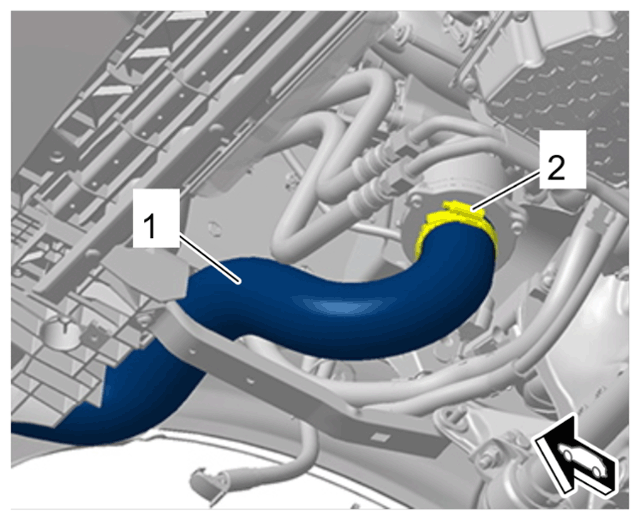

- 42.1 Push on coolant line -2- at the top of the radiator and secure with a retaining clip
- Secure pressure hose -1-
.
Pressure hose on turbocharger

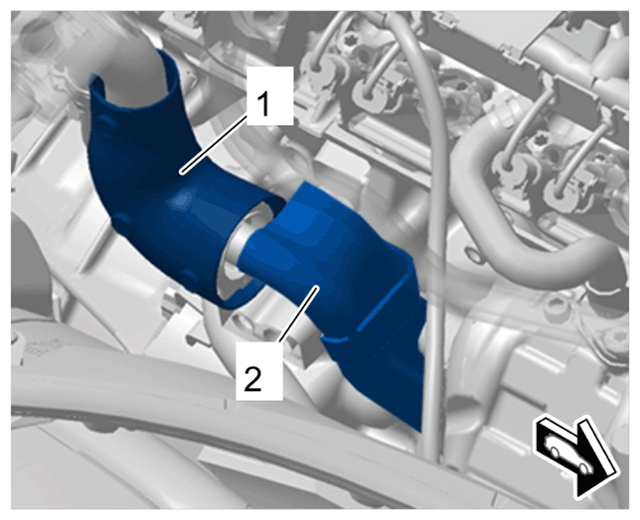

- 43.1 Push pressure hose -1- onto the turbocharger.
- 43.2
Tighten screw-type clamp -2-
.
Tightening torque 5.5 Nm (4 ftlb.)

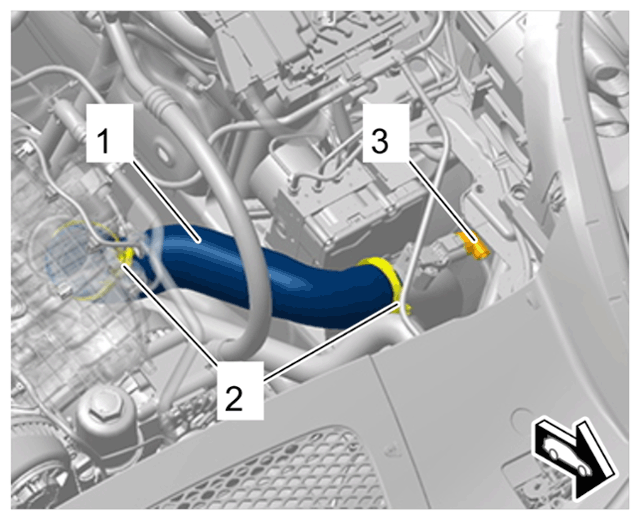

- Install pressure hose -1-
.
Pressure hose on throttle valve
- 44.1 Move pressure hose -1- into installation position.
- 44.2
Tighten screw-type clamps -2-
.
Tightening torque 5.5 Nm (4 ftlb.)
- 44.3 Connect and lock electric plug connection -3- .
