Removing Crankshaft Sealing Ring - Belt Side

WARNING: This page is about a different variant/trim than selected.

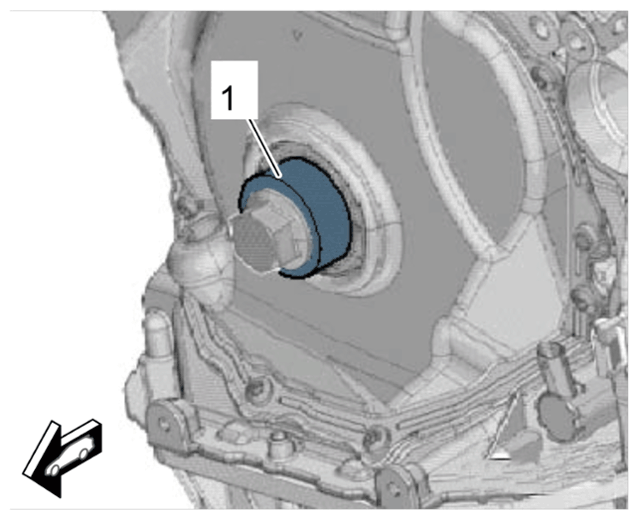

T10368 - Thrust piece-1- must be screwed on.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Thrust piece on crankshaft

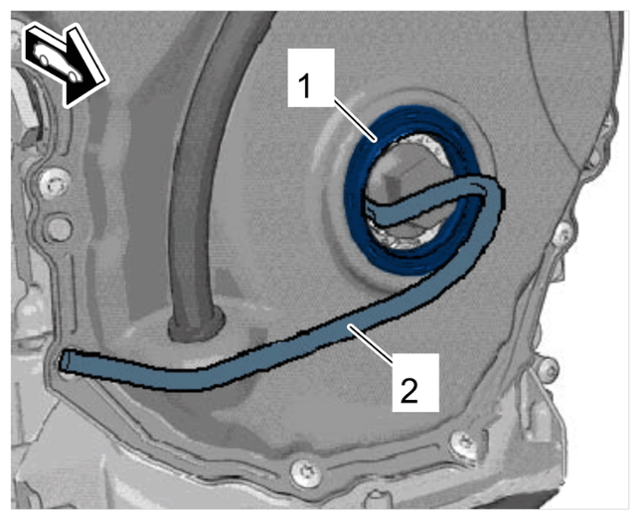

Remove sealing ring -1- using T40274 - extractor hook-2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing sealing ring
T10368 - Thrust piece-1- must now be removed.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Thrust piece on crankshaft

Information
- if the joint flange on the pulley or the surface on the crankshaft stub is slightly rusted, the rust must be cleaned off using a special polishing pad.
- If components are very corroded or have deep grooves, they must be replaced.
Clean running and sealing surfaces.
