Allocation Of Crankshaft Bearing Shells
Information
Allocation of crankshaft bearing shells for cylinder block:
Bearing shells of the correct thickness are allocated to the cylinder block at the factory. Coloured dots on the side of the bearing shell are used to identify bearing shell thickness.

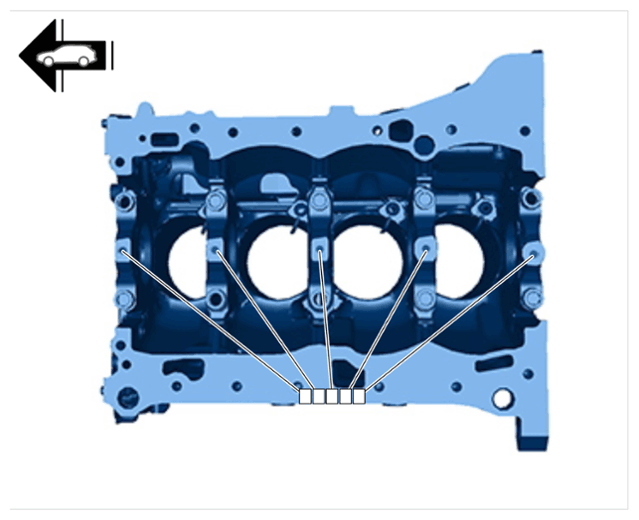

The assignment of the bearing shells to the cylinder block is marked on the lower sealing face or on the front of the cylinder block with letters.
Allocation of crankshaft bearing shells for cylinder block
Information
Allocation of crankshaft bearing shells for bearing covers:
Bearing shells of the correct thickness are allocated to the cylinder block at the factory. Coloured dots on the side of the bearing shell are used to identify bearing shell thickness.

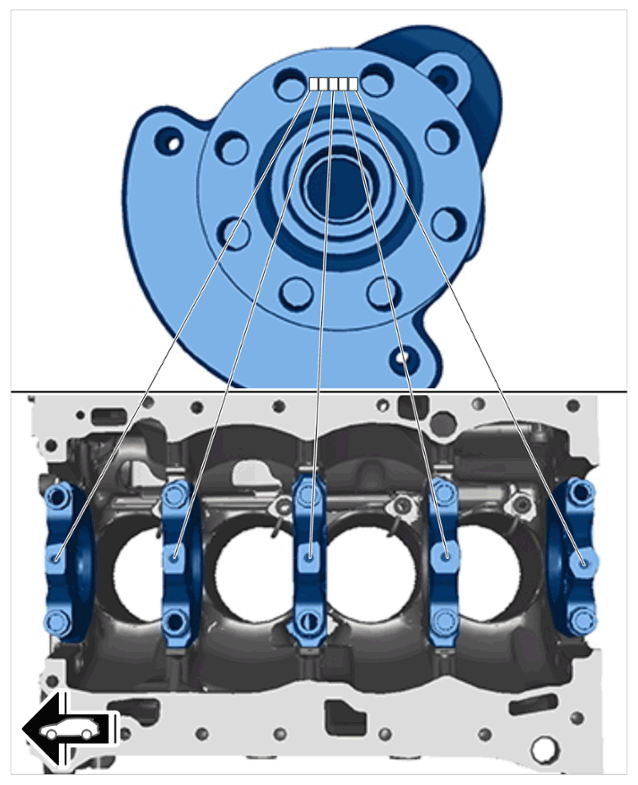

The allocation of bearing shells to the bearing covers is indicated by a letter on the front crankshaft flange as shown.
Allocation of crankshaft bearing shells for bearing covers
| Marking on crankshaft flange/cylinder block | Colour marking of bearing |
|---|---|
| S = | Black bearing shell |
| R = | Red bearing shell |
| G = | Yellow bearing shell |
| B = | Blue bearing shell |
| W = | White bearing shell |
