Installing Coolant Temperature Sensor (Engine Temperature Control)

  1. Installation is performed in reverse order. Pay particular attention to the following:

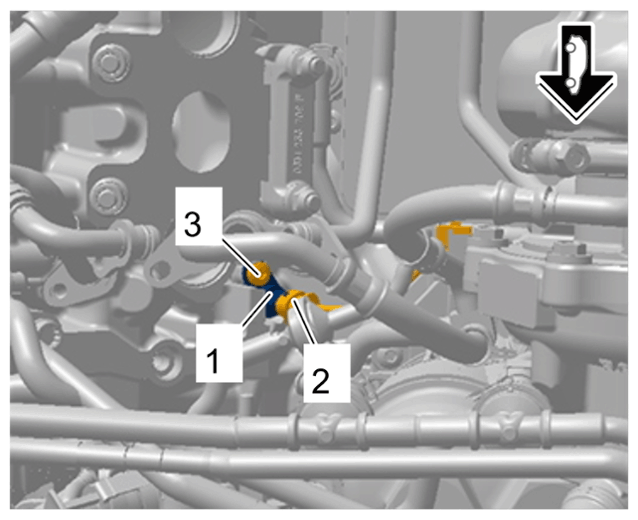

    G15150757Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant temperature sensor for controlling engine temperature

    1. 1.1  Replace O-rings on coolant temperature sensor for controlling engine temperature.
    2. 1.2  Tighten screw on coolant temperature sensor for controlling engine temperature -3-  .
