Installing Coolant Temperature Sensor (Engine Outlet)

  1. Installation is performed in reverse order. Pay particular attention to the following:

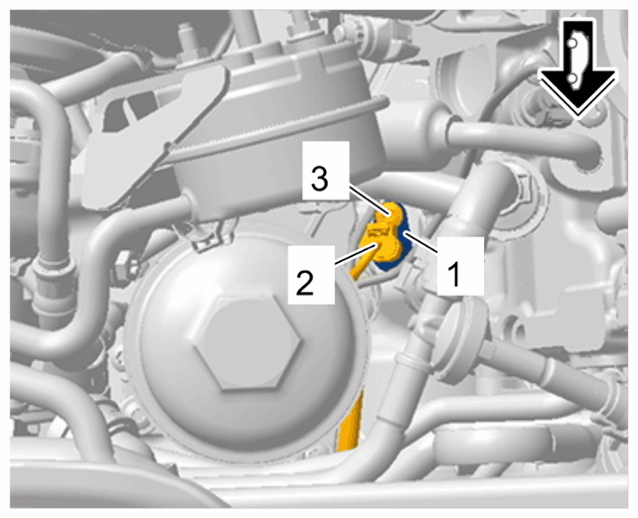

    G15150755Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant temperature sensor (engine outlet)

    1. 1.1  Replace O-rings on coolant temperature sensor.
    2. 1.2  Tighten screw on coolant temperature sensor -3-  .
