Installing Coolant Temperature Sensor (Cylinder Head)

  1. Installation is performed in reverse order. Pay particular attention to the following:

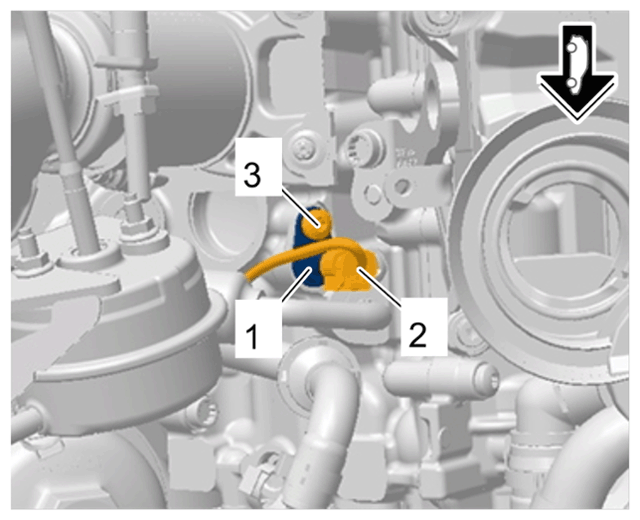

    G15150756Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant temperature sensor (cylinder head)

    1. 1.1  Replace O-rings on coolant temperature sensor on cylinder head.
    2. 1.2  Tighten screw on coolant temperature sensor on cylinder head -3-  .
