Removing Front Air Guide (At The Top)

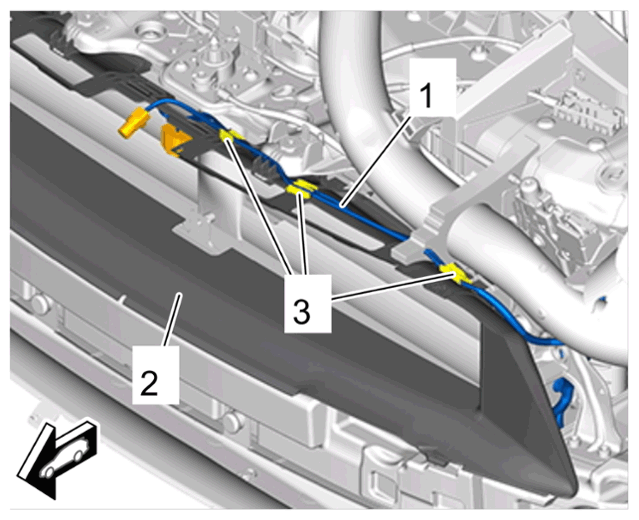

  1. Unclip line -1-  from front air guide (at the top) -2-  with clips -3-  from the air guide -2-  and lay it aside.
    G15150648Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line on front air guide (top)

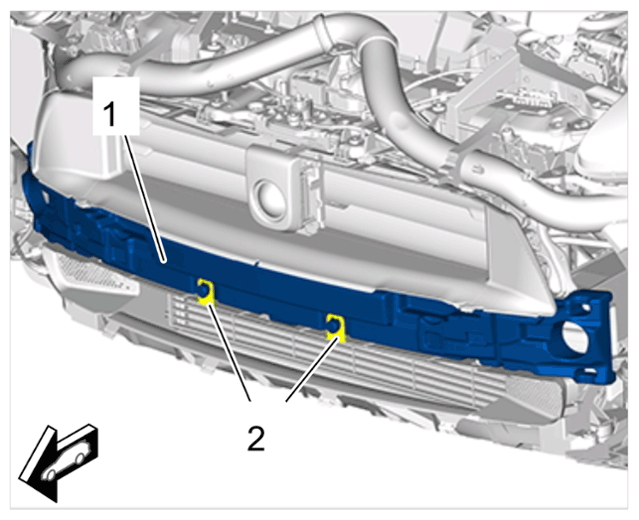

  2. Remove front impact absorber. -1-
    G15150649Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front impact absorber

    1. 2.1  Release impact absorber -1-  from the tabs -2-  and remove it.

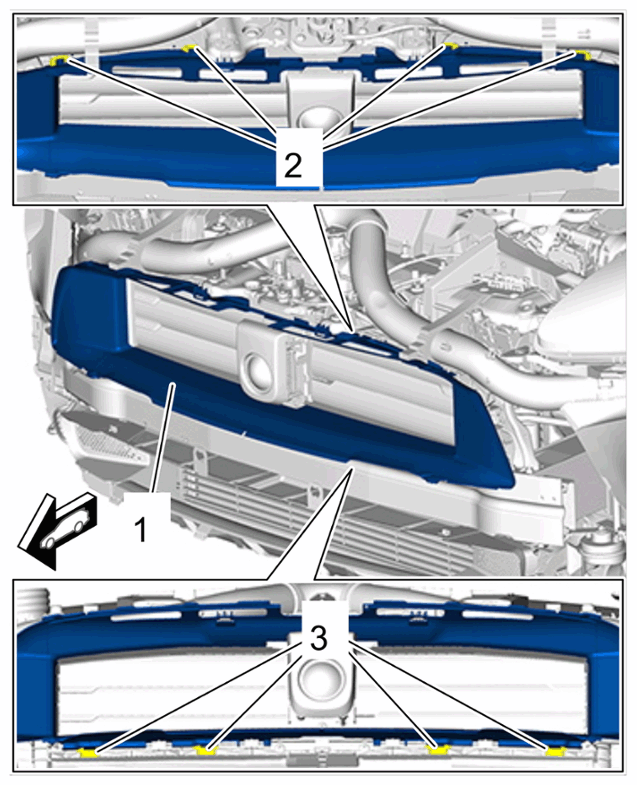

  3. Remove front air guide (at the top). -1-
    G15150650Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front air guide (top)

    1. 3.1  Unclip clips. -2 and 3-
    2. 3.2  Remove front air guide (at the top). -1-
