Removing And Installing Temperature Sensor For Fan

  1. Disconnect electric plug connection -2-  , Unscrew screw -1-  and remove temperature sensor.

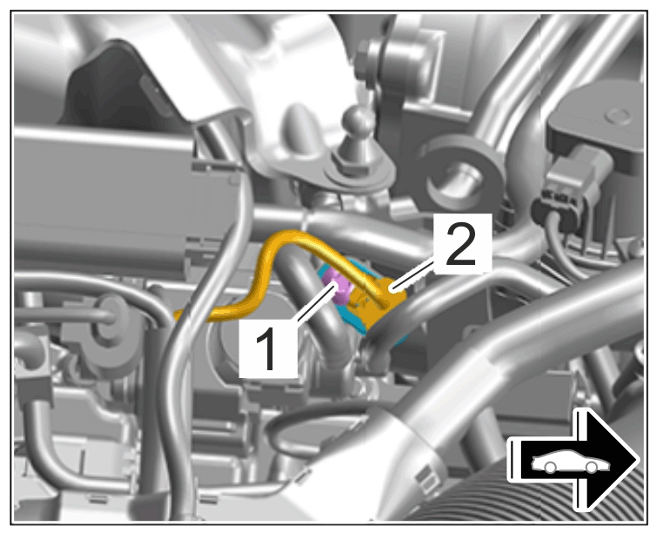

    G15150644Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Temperature sensor for fan

    1. 1.1  Installation is performed in reverse order to removal.
      1. Tightening torque 9 Nm (6.5 ftlb.)
