Checking Engine Coolant Level

Information

The following test prerequisites must be met:

• Cold engine
• Vehicle horizontal

1. Check level indicator on coolant reservoir.

The fluid level should be in the middle -Arrows-  between the MIN and MAX markings.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

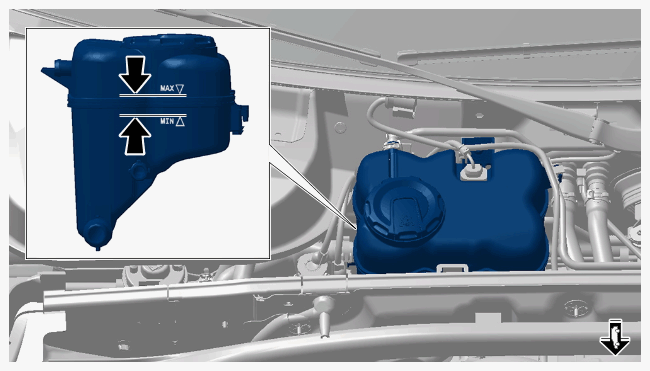

Coolant reservoir fill level
