Disassembling Centre Console

Remove oddments tray cover.
- WM, 684819 - REMOVING AND INSTALLING ODDMENTS TRAY COVER
Remove oddments tray.
- WM, 681619 - REMOVING AND INSTALLING STORAGE COMPARTMENT
Remove centre console trims.
- WM, 681419 - REMOVING AND INSTALLING CENTRE CONSOLE TRIM

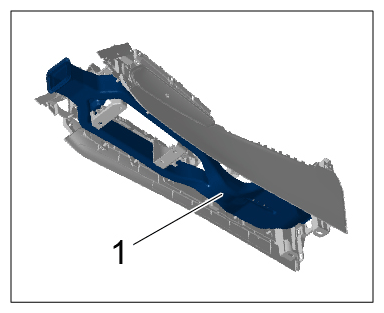

Remove air duct "-1-".

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air duct on centre console
Unscrew screws "-1-" and remove cover "-2-".

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre console cover

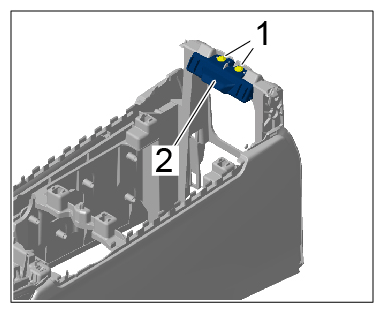

Unclip insulation "-1- (-2-)".

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection
