Installing Casing (Lower Part)

  1. Installation is performed in reverse order. Pay particular attention to the following:

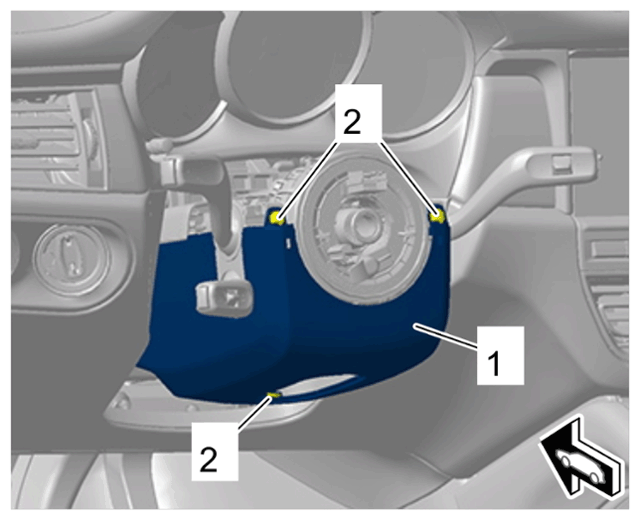

    G15155528Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Casing (lower part)

    1. 1.1 Tighten screws on lower part of casing -2-  .

      > Tightening - torque 1.5 Nm (1 ftlb.)
