Disassembling Steering Wheel

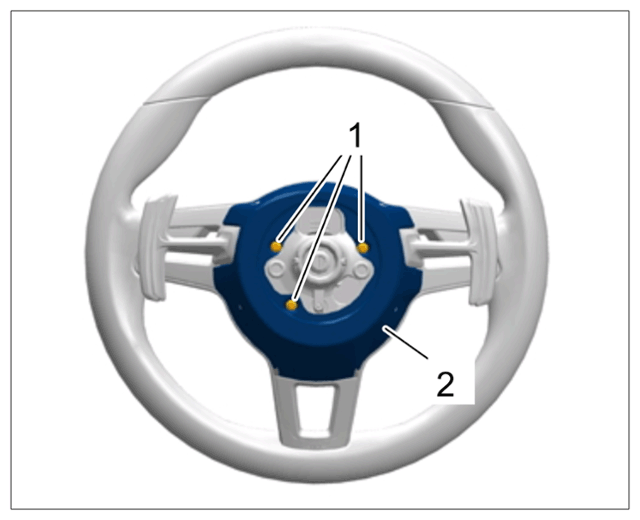

  1. Loosen rear cover -1-  .
    G15155502Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear cover

    1. 1.1 Unscrew screws on rear cover -2-  .
    2. 1.2 Carefully detach rear cover -1-  slightly from the steering wheel.

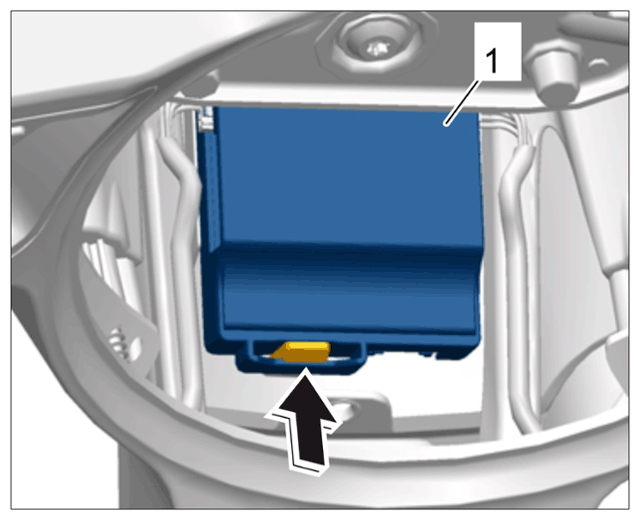

  2. Release locking lug -arrow-  and lift control unit -1-  slightly and pull it forward so that the locking lug -arrow-  can no longer lock by itself.
    G15155503Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control unit mounting

  3. Remove rear cover -1-  from the steering wheel.
    G15155504Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear cover

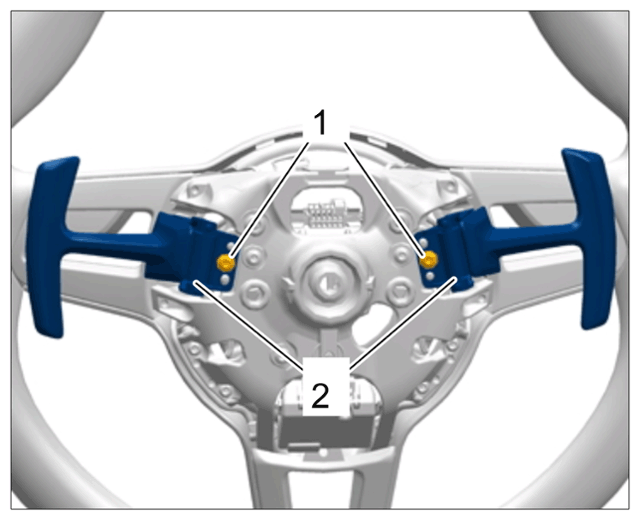

  4. Loosen paddles -2-  .
    G15155505Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Paddles

    1. 4.1 Unscrew screws on the paddles -1-  .
    2. 4.2 Detach paddles -2-  from the steering wheel.

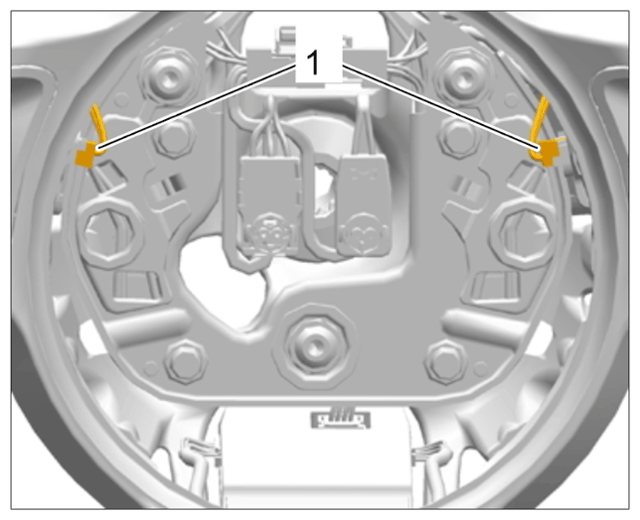

  5. Remove paddles.
    G15155506Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections for paddles

    1. 5.1 Release and disconnect electric plug connections for paddles -1-  .
    2. 5.2 Remove paddles.

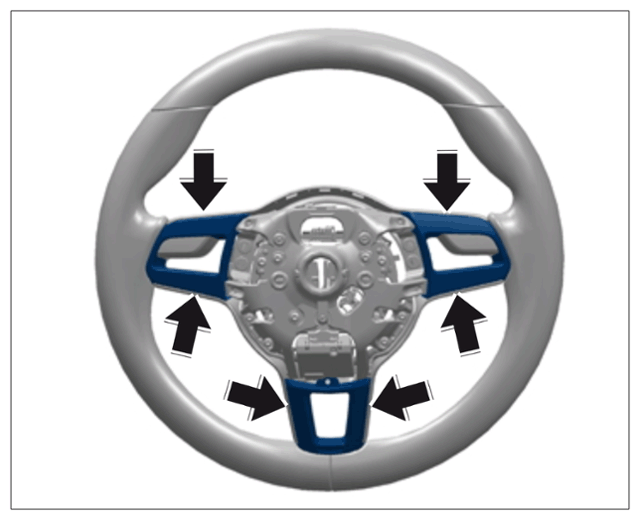

  6. Unclip rear trims at positions -Arrows-  using a suitable thin tool, e.g. a feeler gauge.
    G15155507Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing rear trims

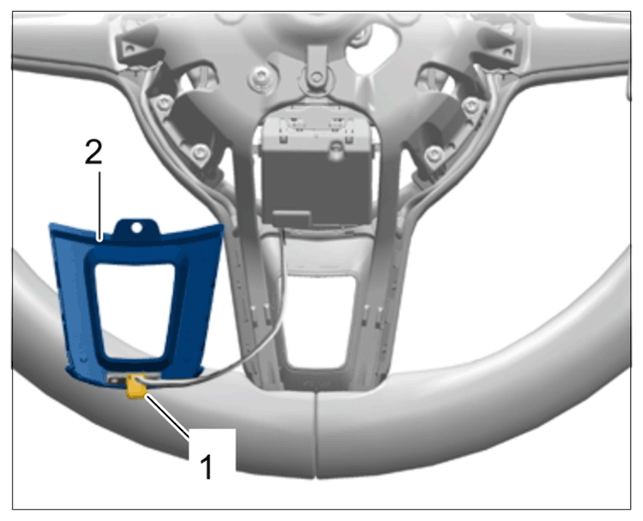

  7. Only for vehicles with heated steering wheel:

    Release and disconnect electric plug connection for heated steering wheel switch -1-  on the rear trim -2-  .

    G15155508Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for heated steering wheel switch

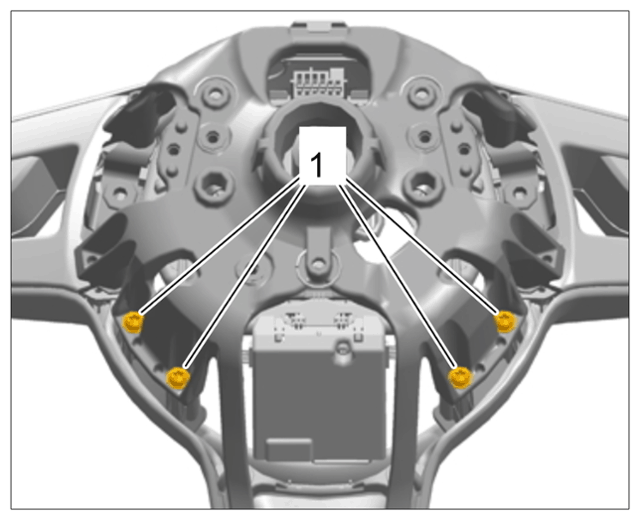

  8. Unscrew screws on main trim -1-  .
    G15155509Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws for main trim

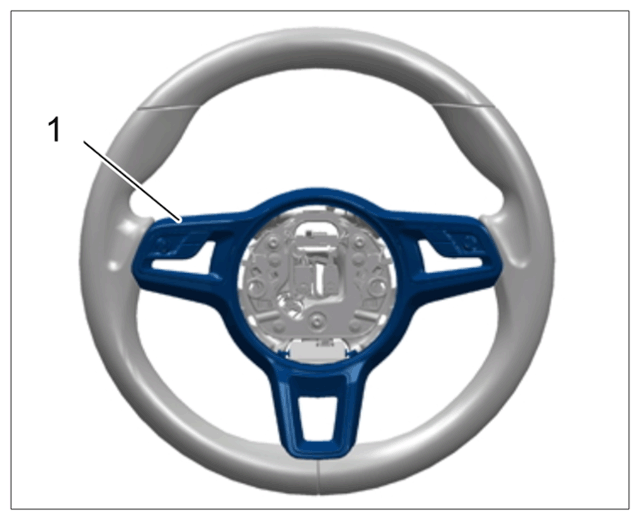

  9. Lift main trim -1-  straight up.
    G15155510Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Main cover

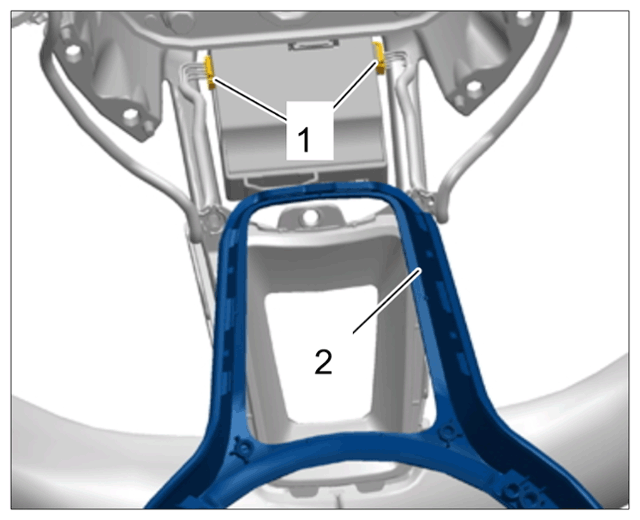

  10. Remove main trim -2-  .
    G15155511Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections for multi-functional switch

    1. 10.1 Release and disconnect electric plug connections for multi-functional switch -1-  .
    2. 10.2 Lift main trim -2-  up and remove it.

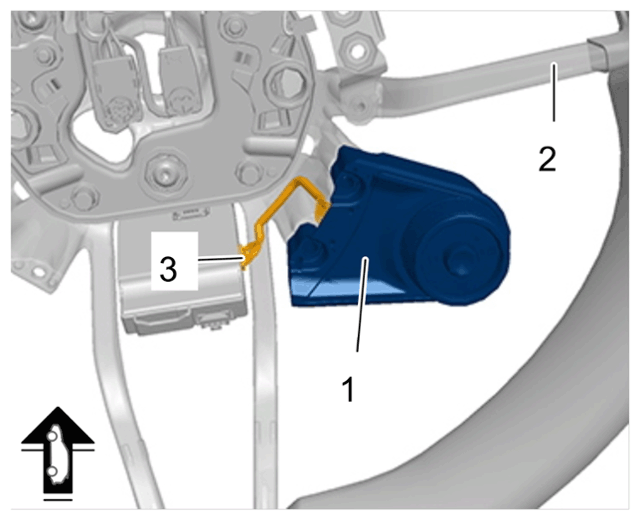

  11. Remove driving mode switch -1-  .
    G15155512Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Driving mode switch

    1. 11.1 Loosen driving mode switch -1-  from the steering wheel -2-  .
    2. 11.2 Release and disconnect electric plug connection for driving mode switch -3-  .
    3. 11.3 Remove driving mode switch -1-  .

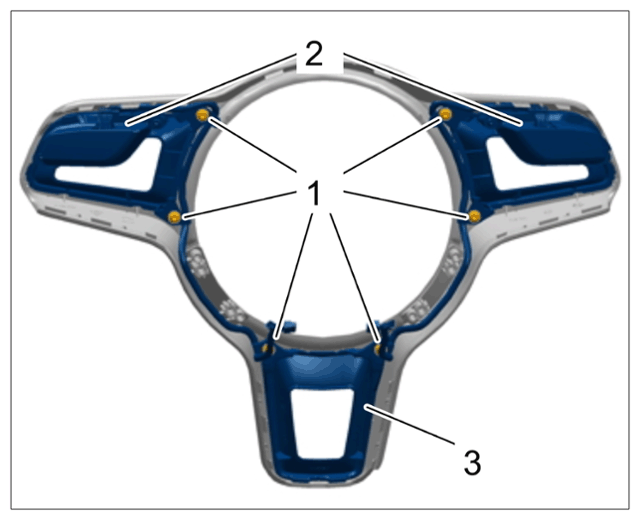

  12. Remove multi-functional switch -2-  and front trim -3-  from main trim.
    G15155513Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Multi-functional switch and front trim on main trim

    1. 12.1 Remove screws -1-  .
    2. 12.2 Remove multi-functional switch -2-  .
    3. 12.3 Remove front trim -3-  .

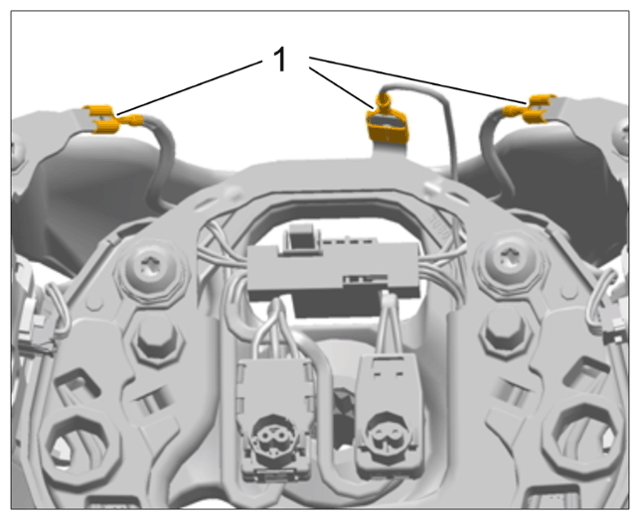

  13. Disconnect electric plug connections -1-  from connector lugs.
    G15155514Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections for steering wheel

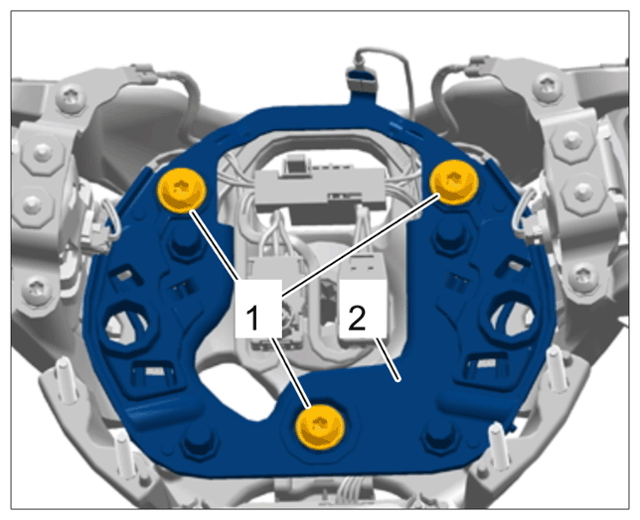

  14. Remove contact bridge -2-  .
    G15155515Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Contact bridge

    1. 14.1 Unscrew screws on contact bridge -1-  .
    2. 14.2 Remove contact bridge -2-  .

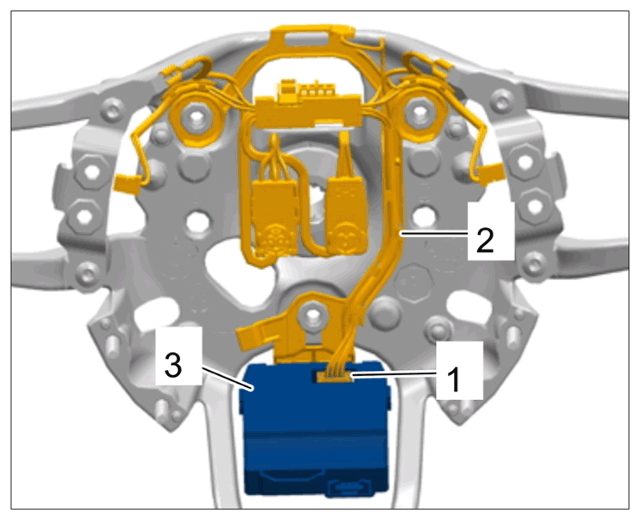

  15. Disconnect electric wire harness -2-  .
    G15155516Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wire harness on control unit

    1. 15.1 Release and disconnect electric plug connection -1-  .
    2. 15.2 Only for vehicles with heated steering wheel:

      Release and disconnect the electric plug connection for the heated steering wheel at the control unit -3-  .

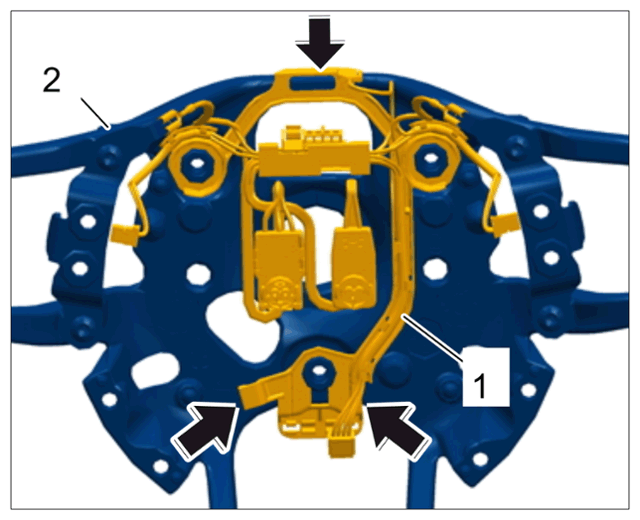

  16. Remove electric wire harness -1-  .
    G15155517Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wire harness

    1. 16.1 Unclip clips -Arrows-  .
    2. 16.2 Remove electric wire harness -1-  from steering wheel skeleton -2-  .
