Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw securing control unit for electric steering column lock (ELV) to steering column Item 1 Tightening torque 4.5 Nm (3.25 ftlb.)

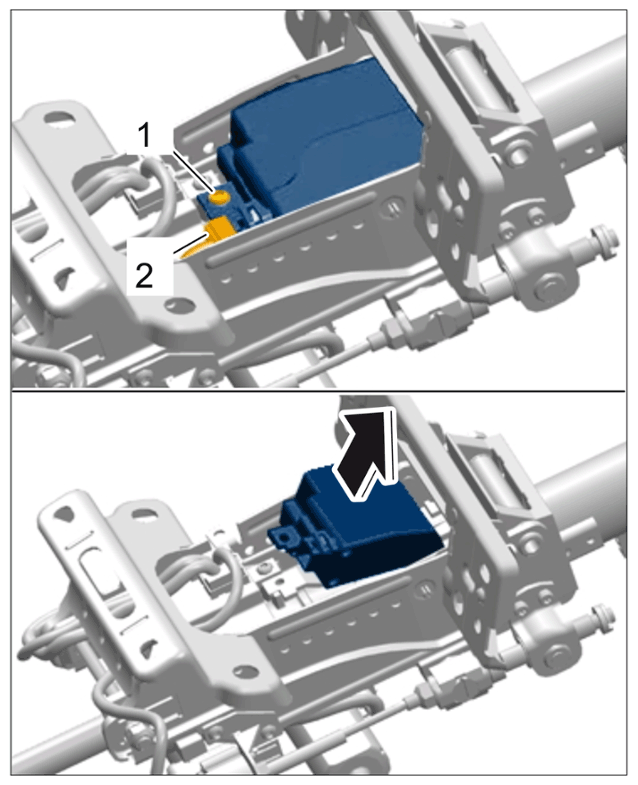

G15155477Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Control unit for electric steering column lock (ELV)
