Trim Panel Under Dashboard On Driver'S Side

Location Description Type Basic value Tolerance

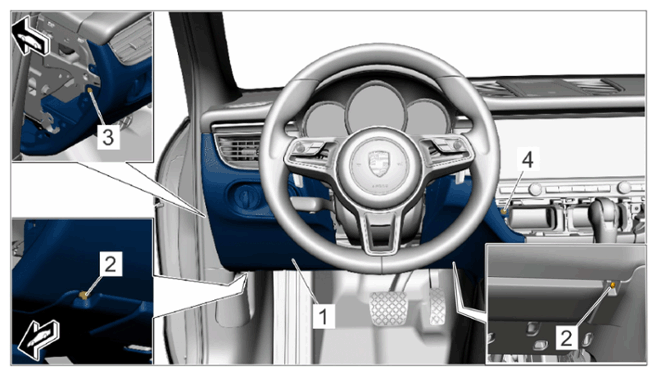

Screws securing trim panel under dashboard Item 2, 3, 4 Tightening torque 3 Nm (2 ftlb.)
G15161894Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
