7X Body-Equipment Inside General -- 95B - MACAN (95B)
>>
WM, 7X00IN Technical Values
>>
70 - Trim Panels, Insulation
>>
Front Door Panel
Front Door Panel
Location
Description
Type
Basic value
Tolerance
Screw securing front door panel to door
Item 1
Tightening torque
3.5 Nm (2.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

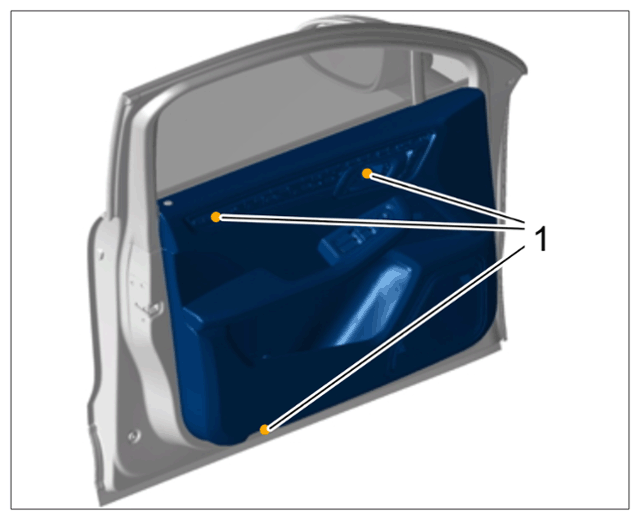

Door panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
